Information injection-pump assembly
ZEXEL
101902-0020
1019020020
ISUZU
1156010261
1156010261
Rating:
Cross reference number
ZEXEL
101902-0020
1019020020
ISUZU
1156010261
1156010261
Zexel num
Bosch num
Firm num
Name
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113 or {SAEJ967d}
1404 Test oil ISO4113 or {SAEJ967d}
Test oil temperature
degC
40
40
45
Nozzle and nozzle holder
105780-8140
Bosch type code
EF8511/9A
Nozzle
105780-0000
Bosch type code
DN12SD12T
Nozzle holder
105780-2080
Bosch type code
EF8511/9
Opening pressure
MPa
17.2
Opening pressure
kgf/cm2
175
Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600
Outer diameter - inner diameter - length (mm) mm 6-2-600
Overflow valve
134424-0020
Overflow valve opening pressure
kPa
157
123
191
Overflow valve opening pressure
kgf/cm2
1.6
1.25
1.95
Tester oil delivery pressure
kPa
157
157
157
Tester oil delivery pressure
kgf/cm2
1.6
1.6
1.6
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right R
Right R
Injection order
R: right hand row, L: left hand row 1L-8R-7L -6R-5L-4 R-3L-10R
R: right hand row, L: left hand row 1L-8R-7L -6R-5L-4 R-3L-10R
Pre-stroke
mm
4.4
4.35
4.45
Beginning of injection position
Governor side NO.1
Governor side NO.1
Difference between angles 1
Cal 1-8 deg. 27 26.5 27.5
Cal 1-8 deg. 27 26.5 27.5
Difference between angles 2
Cal 1-7 deg. 72 71.5 72.5
Cal 1-7 deg. 72 71.5 72.5
Difference between angles 3
Cal 1-6 deg. 99 98.5 99.5
Cal 1-6 deg. 99 98.5 99.5
Difference between angles 4
Cal 1-5 deg. 144 143.5 144.5
Cal 1-5 deg. 144 143.5 144.5
Difference between angles 5
Cal 1-4 deg. 171 170.5 171.5
Cal 1-4 deg. 171 170.5 171.5
Difference between angles 6
Cal 1-3 deg. 216 215.5 216.5
Cal 1-3 deg. 216 215.5 216.5
Difference between angles 7
Cal 1-10 deg. 243 242.5 243.5
Cal 1-10 deg. 243 242.5 243.5
Difference between angles 8
Cal 1-9 deg. 288 287.5 288.5
Cal 1-9 deg. 288 287.5 288.5
Difference between angles 9
Cyl.1-2 deg. 315 314.5 315.5
Cyl.1-2 deg. 315 314.5 315.5
Injection quantity adjustment
Adjusting point
A
Rack position
10.2
Pump speed
r/min
1150
1150
1150
Average injection quantity
mm3/st.
128.5
127.5
129.5
Max. variation between cylinders
%
0
-2
2
Basic
*
Fixing the lever
*
Boost pressure
kPa
73.3
73.3
Boost pressure
mmHg
550
550
Injection quantity adjustment_02
Adjusting point
B
Rack position
4.8+-0.5
Pump speed
r/min
250
250
250
Average injection quantity
mm3/st.
10
8.6
11.4
Max. variation between cylinders
%
0
-13
13
Fixing the rack
*
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Boost compensator adjustment
Pump speed
r/min
550
550
550
Rack position
8.1
Boost pressure
kPa
10.7
8
13.4
Boost pressure
mmHg
80
60
100
Boost compensator adjustment_02
Pump speed
r/min
550
550
550
Rack position
10.2
Boost pressure
kPa
56
45.3
66.7
Boost pressure
mmHg
420
340
500
Test data Ex:

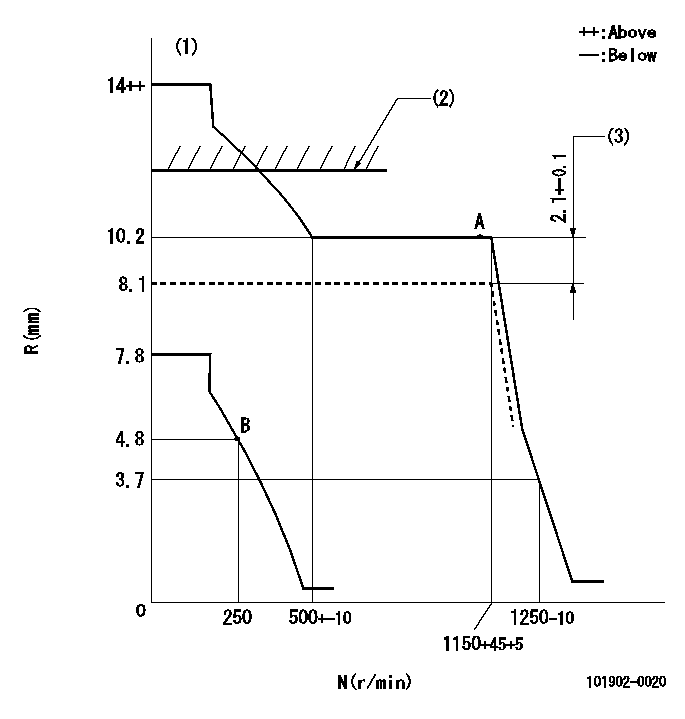

Governor adjustment
N:Pump speed
R:Rack position (mm)
(1)Target notch: K
(2)Boost compensator stroke
(3)Excessive fuel setting for starting using boost compensator lever: SXL
----------
K=5 SXL=10.4+0.2mm
----------
----------
K=5 SXL=10.4+0.2mm
----------

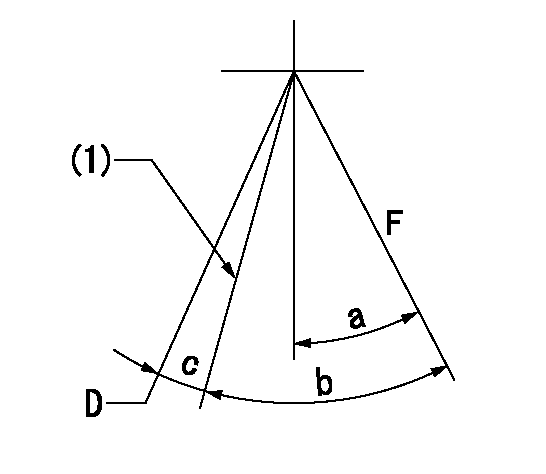

Speed control lever angle
F:Full speed
D:Dead point
(1)Stopper bolt setting
----------
----------
a=22deg+-5deg b=32deg+-5deg c=0deg+-5deg
----------
----------
a=22deg+-5deg b=32deg+-5deg c=0deg+-5deg
Stop lever angle
N:Pump normal
S:Stop the pump.
----------
----------
a=0deg+-5deg b=53deg+-5deg
----------
----------
a=0deg+-5deg b=53deg+-5deg
0000001101
N:Normal
B:When boosted
----------
----------
a=(10deg) b=(15deg)
----------
----------
a=(10deg) b=(15deg)
Timing setting
(1)Pump vertical direction
(2)Position of gear shaft's key groove at No 1 cylinder's beginning of injection
(3)B.T.D.C.: aa
(4)-
----------
aa=16deg
----------
a=(120deg)
----------
aa=16deg
----------
a=(120deg)
Information:
