Information injection-pump assembly

ZEXEL 101901-0670 1019010670

ISUZU 1156006930 1156006930

Cross reference number

ZEXEL 101901-0670 1019010670

ISUZU 1156006930 1156006930

Zexel num

Bosch num

Firm num

Name

101901-0670

1156006930 ISUZU

INJECTION-PUMP ASSEMBLY
10PB1 * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 134424-0020

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order
R: right hand row, L: left hand row 1L-8R-7L -6R-5L-4 R-3L-10R

Pre-stroke mm 3.2 3.15 3.25

Beginning of injection position
Opposite to the driving side NO.1

Difference between angles 1
Cal 1-8 deg. 27 26.5 27.5

Difference between angles 2
Cal 1-7 deg. 72 71.5 72.5

Difference between angles 3
Cal 1-6 deg. 99 98.5 99.5

Difference between angles 4
Cal 1-5 deg. 144 143.5 144.5

Difference between angles 5
Cal 1-4 deg. 171 170.5 171.5

Difference between angles 6
Cal 1-3 deg. 216 215.5 216.5

Difference between angles 7
Cal 1-10 deg. 243 242.5 243.5

Difference between angles 8
Cal 1-9 deg. 288 287.5 288.5

Difference between angles 9
Cyl.1-2 deg. 315 314.5 315.5

Injection quantity adjustment

Adjusting point A

Rack position 11.7

Pump speed r/min 1250 1250 1250

Average injection quantity mm3/st. 89.8 87.8 91.8

Max. variation between cylinders % 0 -4 4

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 11.7

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 84 83 85

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 8+-0.5

Pump speed r/min 225 225 225

Average injection quantity mm3/st. 8 6.7 9.3

Max. variation between cylinders % 0 -13 13

Fixing the rack *

Injection quantity adjustment_04

Adjusting point D

Rack position 15+-0.5

Pump speed r/min 150 150 150

Each cylinder's injection qty mm3/st. 95 95

Fixing the lever *

Remarks
After startup boost setting

Timer adjustment

Pump speed r/min 1050+-50

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 1150

Advance angle deg. 1.4 0.9 1.9

Timer adjustment_03

Pump speed r/min 1250

Advance angle deg. 3 2.5 3.5

Timer adjustment_04

Pump speed r/min 1350

Advance angle deg. 5 4.5 5.5

Remarks
Finish

Test data Ex:

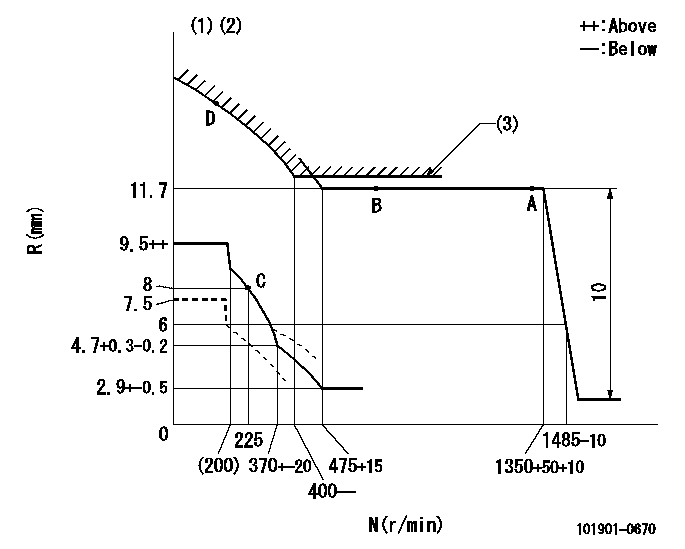

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Beginning of damper spring operation: DL (2)Rack limit (operating at delivery) (3)Excess fuel setting for starting: SXL
----------
DL=6-0.5mm SXL=12.4+0.2mm
----------

Speed control lever angle

F:Full speed M:Minimum-maximum speed (1)Fix at full speed at delivery. (2)Set the speed at aa. Set using two nuts.
----------
aa=807r/min
----------
a=(9deg) b=(2deg)

0000000901

F:Full load I:Idle S:Stop (1)Rack position aa (pump speed bb r/min )
----------
aa=7.5mm bb=0r/min
----------
a=32deg+-3deg b=13deg+-5deg c=1.5deg+-5deg
