101697-9110 ZEXEL 9 400 616 176 BOSCH INJECTION-PUMP ASSEMBLY 9400616176 1016979110 16714z5614




Information injection-pump assembly

BOSCH 9 400 616 176 9400616176
ZEXEL 101697-9110 1016979110
NISSAN-DIESEL 16714Z5614 16714z5614
101697-9110 INJECTION-PUMP ASSEMBLY
Rating:
11
Buy INJECTION-PUMP ASSEMBLY 101697-9110 zexel genuine, new aftermarket engine parts with delivery

Service parts 101697-9110 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 101069-5010
3. GOVERNOR 105922-0060
4. SUPPLY PUMP 105220-7020
5. AUTOM. ADVANCE MECHANIS 105672-0800
6. COUPLING PLATE 105662-1380
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105101-5630
11. Nozzle and Holder 16600-Z5570
12. Open Pre:MPa(Kqf/cm2) 21.6{220}
13. NOZZLE-HOLDER 105031-4650
14. NOZZLE 105015-7370
15. NOZZLE SET

Include in #1:

101697-9110 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 616 176 9400616176
ZEXEL 101697-9110 1016979110
NISSAN-DIESEL 16714Z5614 16714z5614


Zexel num
Bosch num
Firm num
Name
101697-9110
9 400 616 176
16714Z5614  NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
FE6T K 14BE INJECTION PUMP ASSY PE6A PE

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Overflow valve   131424-1520
Overflow valve opening pressure kPa   157 157 157
Overflow valve opening pressure kgf/cm2   1.6 1.6 1.6
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-4-2-6- 3-5
Pre-stroke mm   3.4 3.35 3.45
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-4
deg.   60 59.5 60.5
Difference between angles 2
Cyl.1-2
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cal 1-3
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-5
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   -
Rack position   12.5
Pump speed r/min   1500 1500 1500
Average injection quantity mm3/st.   83.7 82.1 85.3
Max. variation between cylinders %   0 -3.5 3.5
Basic   *
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Injection quantity adjustment_02
Adjusting point   H
Rack position   9.5+-0.5
Pump speed r/min   300 300 300
Average injection quantity mm3/st.   9.5 7.7 11.3
Max. variation between cylinders %   0 -10 10
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Injection quantity adjustment_03
Adjusting point   A
Rack position   R1(12.5)
Pump speed r/min   1500 1500 1500
Average injection quantity mm3/st.   83.7 82.7 84.7
Basic   *
Fixing the lever   *
Injection quantity adjustment_04
Adjusting point   B
Rack position   R1-0.55
Pump speed r/min   900 900 900
Average injection quantity mm3/st.   68.7 66.7 70.7
Fixing the lever   *
Injection quantity adjustment_05
Adjusting point   I
Rack position   -
Pump speed r/min   150 150 150
Average injection quantity mm3/st.   85 85 105
Fixing the lever   *
Rack limit   *
Timer adjustment
Pump speed r/min   1080--
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   1030
Advance angle deg.   0.5
Timer adjustment_03
Pump speed r/min   1530
Advance angle deg.   2 1.5 2.5
Remarks
Finish


Test data Ex:

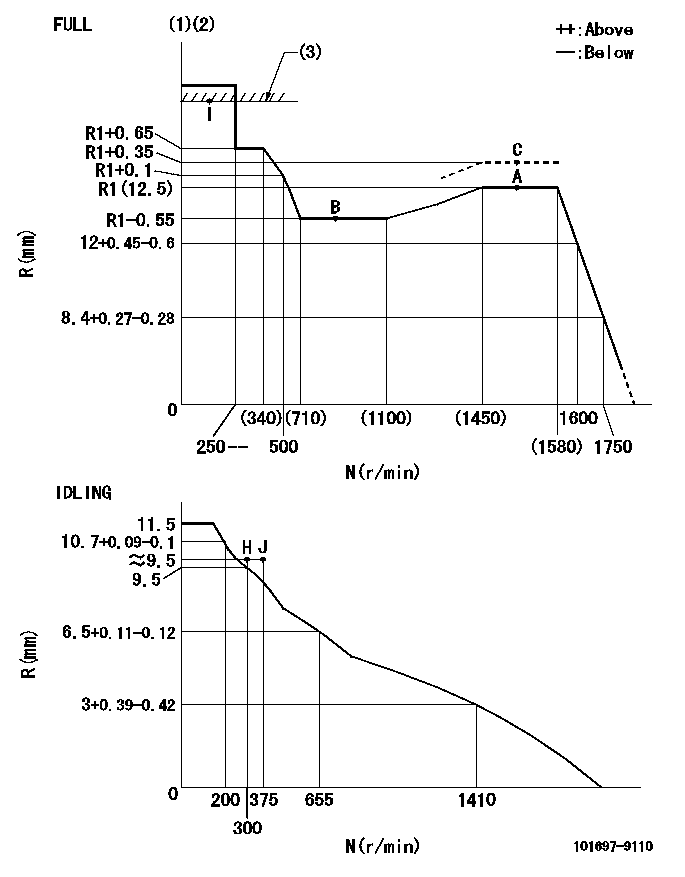

Governor adjustment

Test data 101697-9110
N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT
----------
T1=N95
----------

Speed control lever angle

Test data 101697-9110
F:Full speed I:Idle (1)Use the hole at R = aa (2)Stopper bolt setting
----------
aa=100mm
----------
a=26.5deg+-5deg b=(38deg)+-3deg

Stop lever angle

Test data 101697-9110
N:Pump normal S:Stop the pump.
----------

----------
a=27deg+-5deg b=40deg+-5deg

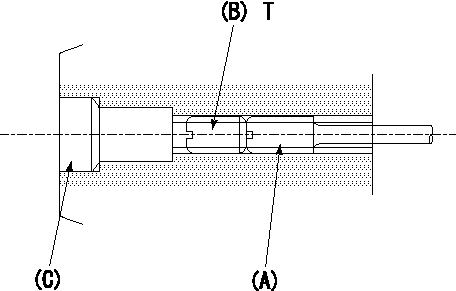

0000001501 TAMPER PROOF

Test data 101697-9110
1. Method for setting tamperproof proofing (1)Perform after governor adjustment (torque cam phase adjustment). (2)Increase the full rack position to aa using the load lever. (3)At N = N1, push in screw (A) until Ra. (4)Temporarily caulk using the tip of a screwdriver (5)Confirm that the rack at that time is Rb. (6)Lock using setscrew (B). (Tightening torque = T) (7)Pressfit (C) after applying adhesive. (8)Readjust the full rack using the load lever.
----------
N1=1500r/min aa=(1)mm Ra=R1(12.5)+0.35mm Rb=R1(12.5)+0.35mm
----------
T=4.9~7N-m(0.5~0.7Kgf-m)

Timing setting

Test data 101697-9110
(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(30deg)




Information:

General Recommendations and Contamination Control Guidelines for Fuels
Follow all applicable industry standards and all applicable governmental, environmental, and safety guidelines, practices, regulations, and mandates.Note: These general recommendations and guidelines concerning maintenance and care of fuel and fuel storage systems are not intended to be all inclusive. Discuss proper fuel safety and health, handling, and maintenance practices with your fuel supplier. Use of these general recommendations and guidelines does not lessen the engine owners and/or fuel supplier responsibility to follow all industry standard practices for fuel storage and for fuel handling.Note: Where recommendations for draining water and/or sediment and/or debris are stated, dispose of this waste according to all applicable regulations and mandates.Note: Caterpillar filters are designed and built to provide optimal performance and protection of the fuel system components.Clean fuels, as detailed below, are strongly recommended to allow optimal performance and durability of the fuel systems and to reduce power loss, failures, and related down time of engines.Fuels of “ISO 18/16/13” cleanliness levels or cleaner as dispensed into the engine or machine fuel tank should be used. Reduced power, failures and related downtime can result if clean fuels are not used. Fuels of “ISO 18/16/13” are particularly important for new fuel system designs such as Common Rail injection systems and unit injection systems. These new injection system designs utilize higher fuel pressures and are designed with tight clearances between moving parts to meet required stringent emissions regulations. Peak injection pressures in current fuel injection systems may exceed 30,000 psi. Clearances in these systems are less than 5 µm. As a result, particle contaminants as small as 4 µm can cause scoring and scratching of internal pump and injector surfaces and of injector nozzles.Water in the fuel causes cavitation, corrosion of fuel system parts, and provides an environment where microbial growth in the fuel can flourish. Other sources of fuel contamination are soaps, gels, or other compounds that may result from undesirable chemical interactions in the fuels. Gels and other insoluble compounds can also form in biodiesel fuel at low temperatures or if biodiesel is stored for extended periods. An indication of microbial contamination, detrimental fuel additives interactions, or cold temperature gel is very rapid filter plugging of bulk fuel filters or machine fuel filters.To reduce downtime due to contamination, follow these fuel maintenance guidelines in addition to the recommendations given in the "Contamination Control" Chapter in this Special Publication:
Use high-quality fuels per recommended and required specifications (refer to the “Fuel” chapter in this Special Publication).
Do not add new engine oil, waste engine oil or any oil product to the fuel unless the engine is designed and certified to burn diesel engine oil (for example Caterpillar ORS designed for large engines). Engine oils may raise the sulfur level of the fuel and may cause fouling of the fuel system and loss of performance. Engine oils in fuels can also reduce the maintenance intervals of aftertreatment devices in Tier 4 machines.
Use recommended Cat filtration products, including Cat Advanced Efficiency Fuel
