101696-9380 ZEXEL 9 400 610 799 BOSCH INJECTION-PUMP ASSEMBLY 9400610799 1016969380 16713z6418

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 610 799 9400610799

ZEXEL 101696-9380 1016969380

NISSAN-DIESEL 16713Z6418 16713z6418

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101696-9380 zexel genuine, new aftermarket engine parts with delivery

Service parts 101696-9380 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101069-3660

3. GOVERNOR 105921-7820

4. SUPPLY PUMP 105220-7020

5. AUTOM. ADVANCE MECHANIS 105614-3860

6. COUPLING PLATE 105662-1410

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105101-5630

11. Nozzle and Holder 16600-Z5570

12. Open Pre:MPa(Kqf/cm2) 21.6{220}

13. NOZZLE-HOLDER 105031-4650

14. NOZZLE 105015-7370

15. NOZZLE SET

Include in #1:

101696-9380 as INJECTION-PUMP ASSEMBLY

106673-2170 as _

Cross reference number

BOSCH 9 400 610 799 9400610799

ZEXEL 101696-9380 1016969380

NISSAN-DIESEL 16713Z6418 16713z6418

Zexel num

Bosch num

Firm num

Name

101696-9380

9 400 610 799

16713Z6418 NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
FE6T * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-1520

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 3.4 3.35 3.45

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point -

Rack position 12.5

Pump speed r/min 1500 1500 1500

Average injection quantity mm3/st. 83.7 82.1 85.3

Max. variation between cylinders % 0 -3.5 3.5

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point H

Rack position 9.5+-0.5

Pump speed r/min 300 300 300

Average injection quantity mm3/st. 9.5 7.7 11.3

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_03

Adjusting point A

Rack position R1(12.5)

Pump speed r/min 1500 1500 1500

Average injection quantity mm3/st. 83.7 82.7 84.7

Basic *

Fixing the lever *

Injection quantity adjustment_04

Adjusting point B

Rack position R1-0.55

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 68.7 66.7 70.7

Fixing the lever *

Injection quantity adjustment_05

Adjusting point I

Rack position -

Pump speed r/min 150 150 150

Average injection quantity mm3/st. 85 85 105

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min 1050--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 1000

Advance angle deg. 0.5

Timer adjustment_03

Pump speed r/min 1500

Advance angle deg. 2 1.5 2.5

Remarks
Finish

Test data Ex:

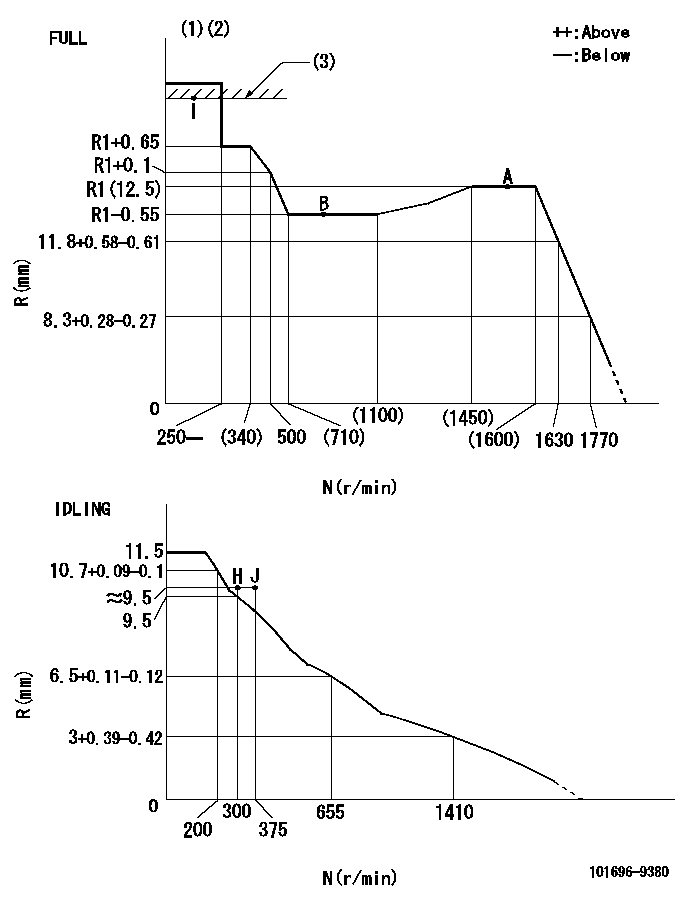

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT
----------
T1=C35
----------

Speed control lever angle

F:Full speed I:Idle (1)Use the hole at R = aa (2)Stopper bolt set position 'H'
----------
aa=100mm
----------
a=26.5deg+-5deg b=39deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Use the pin at R = aa
----------
aa=42mm
----------
a=27deg+-5deg b=40deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of timer's threaded hole at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(60deg)
