101696-9360 ZEXEL 9 400 610 798 BOSCH INJECTION-PUMP ASSEMBLY 9400610798 1016969360 16713z6416




Information injection-pump assembly

BOSCH 9 400 610 798 9400610798
ZEXEL 101696-9360 1016969360
NISSAN-DIESEL 16713Z6416 16713z6416
101696-9360 INJECTION-PUMP ASSEMBLY
Rating:
70
Buy INJECTION-PUMP ASSEMBLY 101696-9360 zexel genuine, new aftermarket engine parts with delivery

Service parts 101696-9360 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 101069-5010
3. GOVERNOR 105921-7800
4. SUPPLY PUMP 105220-7020
5. AUTOM. ADVANCE MECHANIS 105614-3850
6. COUPLING PLATE 105662-1410
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105101-5630
11. Nozzle and Holder 16600-Z5570
12. Open Pre:MPa(Kqf/cm2) 21.6{220}
13. NOZZLE-HOLDER 105031-4650
14. NOZZLE 105015-7370
15. NOZZLE SET

Include in #1:

101696-9360 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 610 798 9400610798
ZEXEL 101696-9360 1016969360
NISSAN-DIESEL 16713Z6416 16713z6416


Zexel num
Bosch num
Firm num
Name
101696-9360
101696-9361
9 400 610 798
16713Z6416  NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
FE6T * K 14BE INJECTION PUMP ASSY PE6A PE

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Overflow valve   131424-1520
Overflow valve opening pressure kPa   157 123 191
Overflow valve opening pressure kgf/cm2   1.6 1.25 1.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-4-2-6- 3-5
Pre-stroke mm   3.4 3.35 3.45
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-4
deg.   60 59.5 60.5
Difference between angles 2
Cyl.1-2
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cal 1-3
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-5
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   -
Rack position   12.5
Pump speed r/min   1500 1500 1500
Average injection quantity mm3/st.   83.7 82.1 85.3
Max. variation between cylinders %   0 -3.5 3.5
Basic   *
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Injection quantity adjustment_02
Adjusting point   H
Rack position   9.5+-0.5
Pump speed r/min   300 300 300
Average injection quantity mm3/st.   9.5 7.7 11.3
Max. variation between cylinders %   0 -10 10
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Injection quantity adjustment_03
Adjusting point   A
Rack position   R1(12.5)
Pump speed r/min   1500 1500 1500
Average injection quantity mm3/st.   83.7 82.7 84.7
Basic   *
Fixing the lever   *
Injection quantity adjustment_04
Adjusting point   B
Rack position   R1-0.55
Pump speed r/min   900 900 900
Average injection quantity mm3/st.   68.7 66.7 70.7
Fixing the lever   *
Injection quantity adjustment_05
Adjusting point   I
Rack position   -
Pump speed r/min   150 150 150
Average injection quantity mm3/st.   85 85 105
Fixing the lever   *
Rack limit   *
Timer adjustment
Pump speed r/min   1050--
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   1000
Advance angle deg.   0.5
Timer adjustment_03
Pump speed r/min   1500
Advance angle deg.   2 1.5 2.5
Remarks
Finish


Test data Ex:

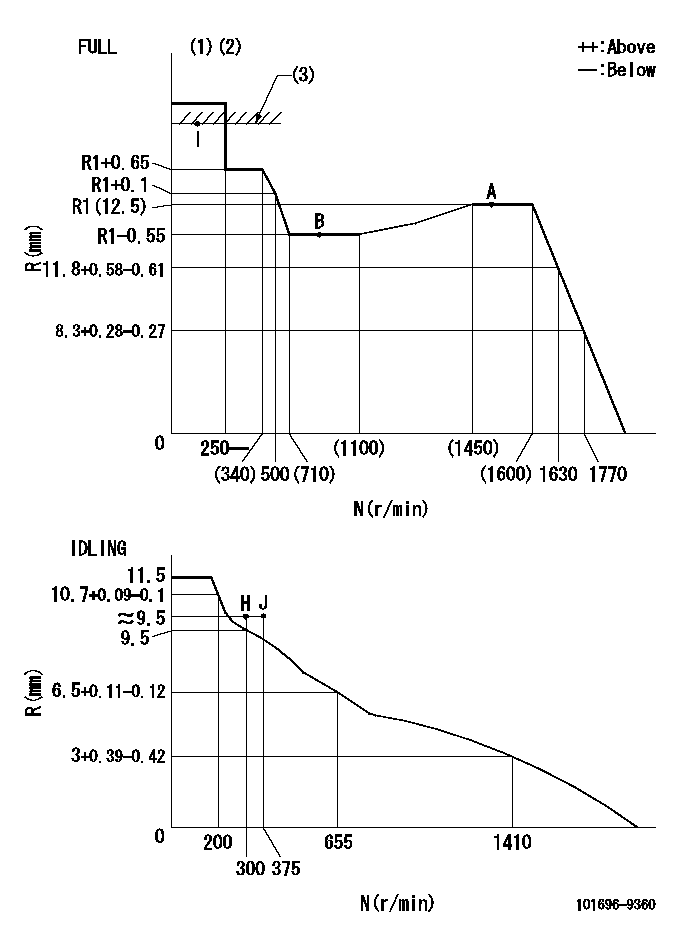

Governor adjustment

Test data 101696-9360
N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT
----------
T1=C35
----------

Speed control lever angle

Test data 101696-9360
F:Full speed I:Idle (1)Use the hole at R = aa (2)Stopper bolt setting
----------
aa=100mm
----------
a=26.5deg+-5deg b=39deg+-3deg

Stop lever angle

Test data 101696-9360
N:Pump normal S:Stop the pump. (1)Use the pin at R = aa
----------
aa=42mm
----------
a=27deg+-5deg b=40deg+-5deg

Timing setting

Test data 101696-9360
(1)Pump vertical direction (2)Position of timer's threaded hole at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(60deg)




Information:


27Jun2018
(Revised 10Jul2018)
U-356
A-265
D-311
O-319
Parts stock action only
PRODUCT IMPROVEMENT PROGRAM FOR INSPECTING AND REPLACING INTAKE VALVES IN CERTAIN GAS AND DIESEL 3600 REMAN CYLINDER HEADS
7750 PI70709
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
When submitting claim for Parts Stock Action, Use the appropriate 99Z as the s/n, the appropriate Service Letter Program Number as the Part number in the Part Causing Failure field, "7751" as the Group Number, "56" as the Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Revised Service Letter replaces the 27Jun2018 Service Letter. Changes have been made to the Action Required.
TERMINATION DATE
30Sep2018
PROBLEM
The existing remanufactured intake valves installed in certain Reman 3600 cylinder heads may have improper surface finish, which may lead to excessive bridge wear. If the affected valves cause excessive early bridge wear, the intake valves may drop.
ACTION REQUIRED
Please inspect all dealer stock of the following Reman part numbers: 10R-1835, 20R-6518, 10R-9360, 10R-1602, 10R-1496, 0R-7467, 10R-3484, 10R-4829, and 10R-3474.
Inspection procedure:
1) Check the packaging label date code on the Reman cylinder head. If the packaging label date code is dated on or after D08M06Y18 (8-June-2018), return the head to dealer stock without further action.
2) If the packaging label date code is dated earlier than 8-June-2018, remove the head from the box. Inspect the intake valves for part number (if the valve is remanufactured the part number will be hand-scribed, pin stamped, or both on the bottom of the valve head). If a hand-scribed Reman part number is present, remove this valve and replace with new. Reuse all rotocoils, keepers, springs, and seals. Replace all valves that have hand-scribed part numbers even if a pin stamp part number is also present. Refer to Image 1 for an example of both hand-scribed and pin stamped part numbers. Refer to Image 2 for a table of intake valves required for a given cylinder head part number.
If a valve without a hand-scribed Reman part number is present (or without a part number at all), return the head to the crate and ensure rust preventative is applied to any area it may have been removed from. Return the head to dealer stock.
SERVICE CLAIM ALLOWANCES
This letter allows 0.5 hours of labor for the inspection of each Reman 3600 cylinder head with a packaging date code prior to 8-June-2018. An additional 2.5 hours, 3 hours total, is allowed for every cylinder head that requires an intake valve(s) replacement.One valve will allowed for each valve that requires replacement up to two per head. See the chart in Image 2 for the applicable part numbers.
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
