101695-3841 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016953841

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101695-3841 1016953841

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101695-3841 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101695-3841 1016953841

Zexel num

Bosch num

Firm num

Name

101695-3841

INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.6 3.55 3.65

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 9.7

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 37.6 36.6 38.6

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point -

Rack position 8.9+-0.5

Pump speed r/min 425 425 425

Average injection quantity mm3/st. 8 7 9

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Test data Ex:

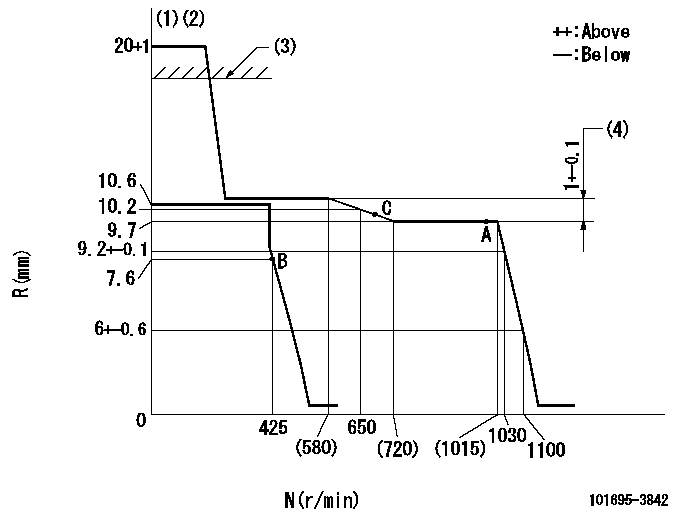

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK CAP: R1 (4)Rack difference between N = N1 and N = N2
----------
K=18 R1=(17.5)mm N1=1000r/min N2=450r/min
----------

Speed control lever angle

F:Full speed I:Idle
----------

----------
a=18deg+-5deg b=29deg+-5deg

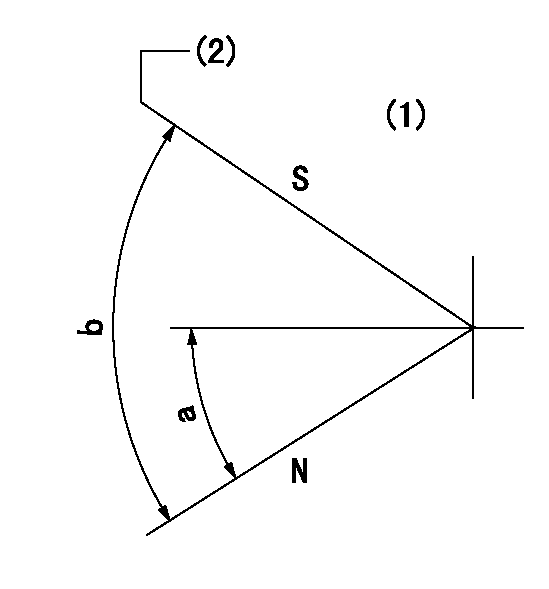

Stop lever angle

N:Pump normal S:Stop the pump. (1)At hole above left hand side R = aa (2)At delivery
----------
aa=27mm
----------
a=26.5deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of key groove at No 1 cylinder's beginning of injection (3)Stamp aligning marks on the pump housing flange. (4)-
----------

----------
a=59deg36min+-3deg b=0deg24min+-30min
