101681-9491 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016819491

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101681-9491 1016819491

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101681-9491 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101681-9491 1016819491

Zexel num

Bosch num

Firm num

Name

101681-9491

INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 2.2 2.15 2.25

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 10.1

Pump speed r/min 1400 1400 1400

Average injection quantity mm3/st. 46.3 44.8 47.8

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point -

Rack position 8.2+-0.5

Pump speed r/min 300 300 300

Average injection quantity mm3/st. 9.4 8.1 10.7

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_03

Adjusting point C

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 62.5 62.5 72.5

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min 550--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 500

Advance angle deg. 0.5

Timer adjustment_03

Pump speed r/min 700

Advance angle deg. 1 0.5 1.5

Timer adjustment_04

Pump speed r/min 1100

Advance angle deg. 2.7 2 3.4

Timer adjustment_05

Pump speed r/min 1400

Advance angle deg. 4.4 3.7 5.1

Timer adjustment_06

Pump speed r/min -

Advance angle deg. 6 6 6

Remarks
Measure the actual speed, stop

Test data Ex:

Governor adjustment

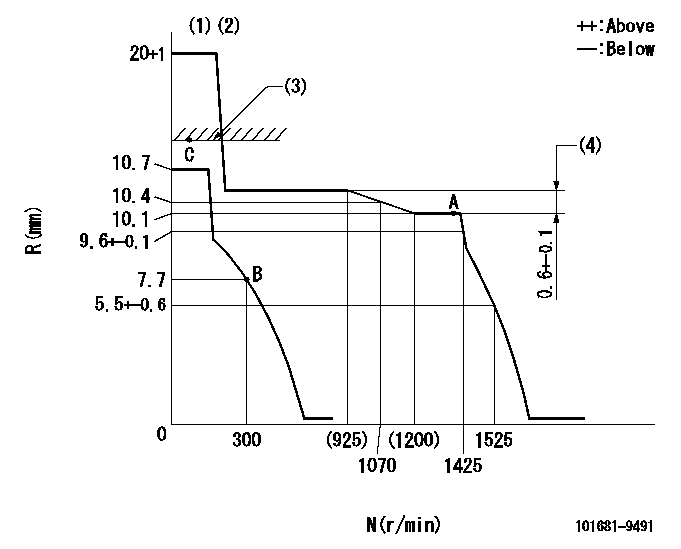

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Rack difference between N = N1 and N = N2
----------
K=12 N1=1400r/min N2=900r/min
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=27deg+-5deg b=16deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=19deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of timer's threaded hole at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(50deg)
