101681-9380 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016819380 16717z5504

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101681-9380 1016819380

NISSAN-DIESEL 16717Z5504 16717z5504

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101681-9380 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101681-9380 1016819380

NISSAN-DIESEL 16717Z5504 16717z5504

Zexel num

Bosch num

Firm num

Name

101681-9380

16717Z5504 NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
FD6T * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 2.4 2.35 2.45

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 9.7

Pump speed r/min 800 800 800

Average injection quantity mm3/st. 62.3 60.9 63.7

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 7+-0.5

Pump speed r/min 300 300 300

Average injection quantity mm3/st. 14.6 12.8 16.4

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Timer adjustment

Pump speed r/min 650

Advance angle deg. 0.5

Timer adjustment_02

Pump speed r/min 1000

Advance angle deg. 0.6 0.1 1.1

Timer adjustment_03

Pump speed r/min -

Advance angle deg. 3 2.5 3.5

Remarks
Measure the actual speed, stop

Test data Ex:

Governor adjustment

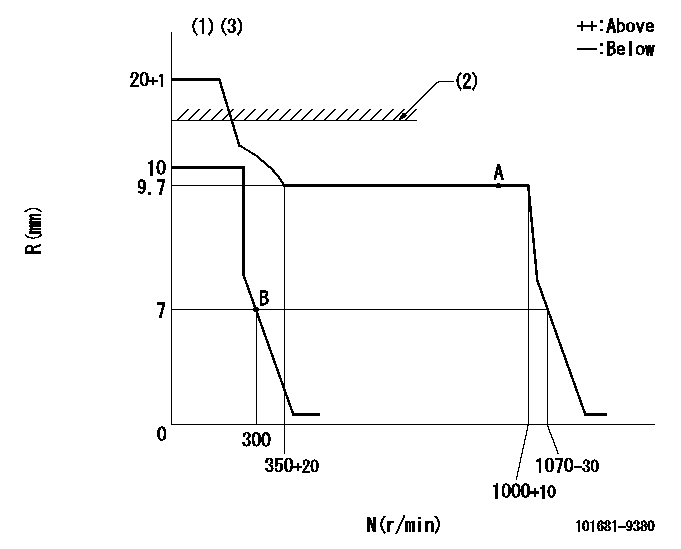

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)RACK LIMIT: RAL (3)Solenoid operation confirmation: Set the speed control lever in the full speed position. At pump speed N1 when the solenoid is operated, confirm that the rack position is R1 or less.
----------
K=16 RAL=11.5+-0.1mm N1=100r/min R1=6mm
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=10deg+-5deg b=21eg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=(25deg) b=(40deg)

Timing setting

(1)Pump vertical direction (2)Position of gear mark 'P' at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(50deg)
