101681-9120 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016819120 16700z5513

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101681-9120 1016819120

NISSAN-DIESEL 16700Z5513 16700z5513

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101681-9120 zexel genuine, new aftermarket engine parts with delivery

Service parts 101681-9120 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101068-3810

3. GOVERNOR 105461-0060

4. SUPPLY PUMP 105220-5640

5. AUTOM. ADVANCE MECHANIS 105622-0440

6. COUPLING PLATE

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105100-5240

11. Nozzle and Holder 16600-Z5508

12. Open Pre:MPa(Kqf/cm2) 21.6{220}

13. NOZZLE-HOLDER 105031-4420

14. NOZZLE

105015-4730

15. NOZZLE SET

Include in #1:

101681-9120 as INJECTION-PUMP ASSEMBLY

Include in #2:

104740-8801 as _

104740-8802

104740-8803

104740-8804

Cross reference number

ZEXEL 101681-9120 1016819120

NISSAN-DIESEL 16700Z5513 16700z5513

Zexel num

Bosch num

Firm num

Name

101681-9120

16700Z5513 NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
FD6T * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 2.4 2.35 2.45

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 11.2

Pump speed r/min 1600 1600 1600

Average injection quantity mm3/st. 77 74.7 79.3

Max. variation between cylinders % 0 -3 3

Fixing the lever *

Boost pressure kPa 56 56

Boost pressure mmHg 420 420

Injection quantity adjustment_02

Adjusting point B

Rack position 11.2

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 73.5 71.9 75.1

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Boost pressure kPa 56 56

Boost pressure mmHg 420 420

Injection quantity adjustment_03

Adjusting point C

Rack position 10.5

Pump speed r/min 600 600 600

Average injection quantity mm3/st. 55 53 57

Max. variation between cylinders % 0 -4 4

Fixing the lever *

Boost pressure kPa 36

Boost pressure mmHg 270

Injection quantity adjustment_04

Adjusting point D

Rack position 7.5+-0.5

Pump speed r/min 300 300 300

Average injection quantity mm3/st. 10.7 8.9 12.5

Max. variation between cylinders % 0 -12 12

Fixing the rack *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Boost compensator adjustment

Pump speed r/min 1000 1000 1000

Rack position 10.5

Boost pressure kPa 36 36 36

Boost pressure mmHg 270 270 270

Boost compensator adjustment_02

Pump speed r/min 1000 1000 1000

Rack position 11.2

Boost pressure kPa 54.7 53.4 56

Boost pressure mmHg 410 400 420

Timer adjustment

Pump speed r/min 400+-50

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 1000

Advance angle deg. 1.5 1 2

Timer adjustment_03

Pump speed r/min 1600

Advance angle deg. 3 2.5 3.5

Remarks
Finish

Test data Ex:

Governor adjustment

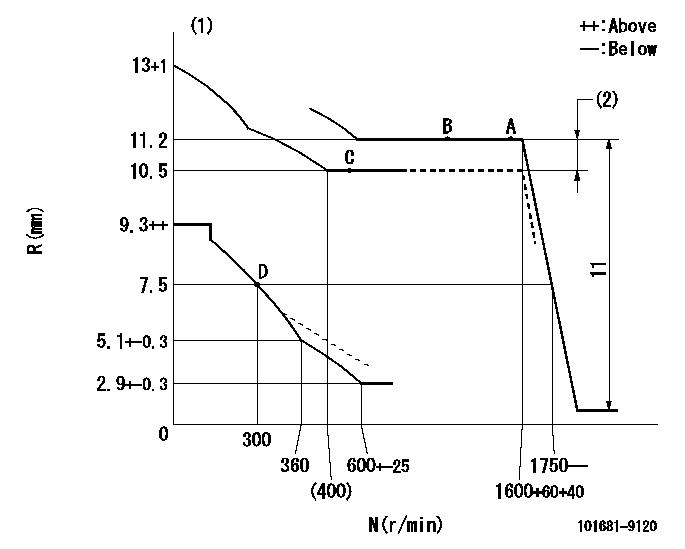

N:Pump speed R:Rack position (mm) (1)Beginning of damper spring operation: DL (2)Boost compensator stroke: BCL
----------
DL=6.5-0.2mm BCL=0.7mm
----------

0000000901

F:Full load I:Idle (1)Stopper bolt setting
----------

----------
a=15deg+-5deg b=30.5deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=21deg+-5deg b=47deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of gear mark 'P' at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(50deg)
