Cross reference number

ZEXEL 101672-0100 1016720100

ISUZU 9812021447 9812021447

Zexel num

Bosch num

Firm num

Name

101672-0100

9812021447 ISUZU

INJECTION-PUMP ASSEMBLY
D500 * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 2.2 2.15 2.25

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 11.6

Pump speed r/min 1050 1050 1050

Average injection quantity mm3/st. 55.7 53.3 58.1

Max. variation between cylinders % 0 -4 4

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 11.6

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 52.8 51.6 54

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 8.4+-0.5

Pump speed r/min 275 275 275

Average injection quantity mm3/st. 8.6 7.1 10.1

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Test data Ex:

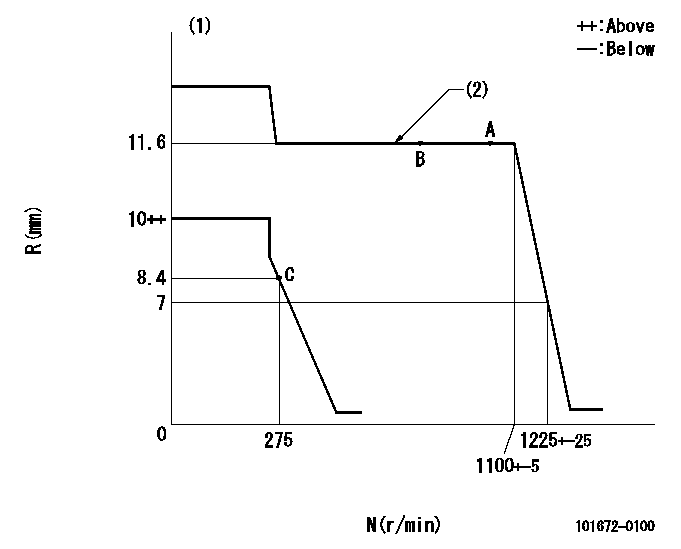

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)The torque control spring does not operate.
----------
K=18
----------

Speed control lever angle

F:Full speed I:Idle S:Stop
----------

----------
a=12deg+-5deg b=22deg+-5deg c=32deg+-3deg
