101671-9820 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016719820 16713z5017

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101671-9820 1016719820

NISSAN-DIESEL 16713Z5017 16713z5017

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101671-9820 zexel genuine, new aftermarket engine parts with delivery

Service parts 101671-9820 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101067-1650

3. GOVERNOR 105921-0160

4. SUPPLY PUMP 105220-5660

5. AUTOM. ADVANCE MECHANIS 105622-0720

6. COUPLING PLATE

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105141-1961

11. Nozzle and Holder 16600-T9000

12. Open Pre:MPa(Kqf/cm2) 9.8{100}

13. NOZZLE-HOLDER 105071-1271

14. NOZZLE

105000-1080

15. NOZZLE SET

Include in #1:

101671-9820 as INJECTION-PUMP ASSEMBLY

Include in #2:

104740-8520 as _

104740-8521

Cross reference number

ZEXEL 101671-9820 1016719820

NISSAN-DIESEL 16713Z5017 16713z5017

Zexel num

Bosch num

Firm num

Name

101671-9820

16713Z5017 NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
ED6 * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 2.6 2.55 2.65

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 12+-0.5

Pump speed r/min 1600 1600 1600

Average injection quantity mm3/st. 72 70 74

Max. variation between cylinders % 0 -3 3

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 12

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 64.6 63.2 66

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 12.3+-0. 5

Pump speed r/min 650 650 650

Average injection quantity mm3/st. 63.4 60.7 66.1

Max. variation between cylinders % 0 -4 4

Fixing the lever *

Injection quantity adjustment_04

Adjusting point H

Rack position 9+-0.5

Pump speed r/min 275 275 275

Average injection quantity mm3/st. 10 7.7 12.3

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Timer adjustment

Pump speed r/min 400

Advance angle deg. 0.5

Timer adjustment_02

Pump speed r/min (600)

Advance angle deg. 1.1

Timer adjustment_03

Pump speed r/min 800

Advance angle deg. 1.3 0.8 1.8

Timer adjustment_04

Pump speed r/min 1100

Advance angle deg. 2.8 2.3 3.3

Timer adjustment_05

Pump speed r/min 1400

Advance angle deg. 4.5 4 5

Timer adjustment_06

Pump speed r/min 1600

Advance angle deg. 6 5.5 6.5

Remarks
Finish

Test data Ex:

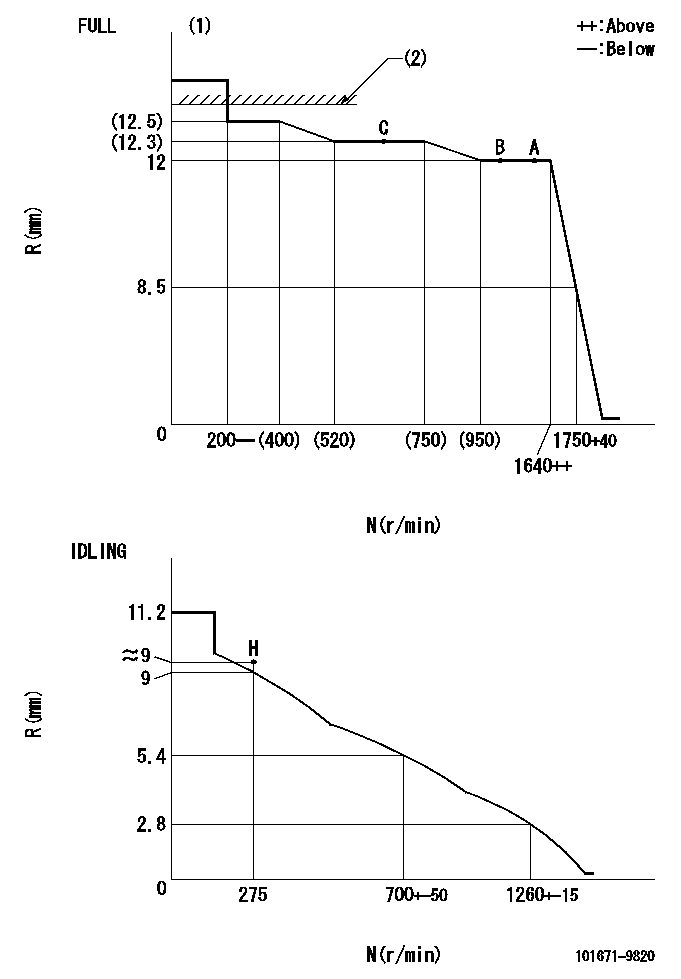

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)RACK LIMIT: RAL
----------
