101671-9250 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016719250 1670095014

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101671-9250 1016719250

NISSAN-DIESEL 1670095014 1670095014

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101671-9250 zexel genuine, new aftermarket engine parts with delivery

Service parts 101671-9250 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101067-1780

3. GOVERNOR 105460-0420

4. SUPPLY PUMP 105220-5640

5. AUTOM. ADVANCE MECHANIS 105612-0350

6. COUPLING PLATE 105661-2210

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105100-4030

11. Nozzle and Holder 16600-95000

12. Open Pre:MPa(Kqf/cm2) 17.7{180}

13. NOZZLE-HOLDER 105031-4260

14. NOZZLE

105015-3370

15. NOZZLE SET

Include in #1:

101671-9250 as INJECTION-PUMP ASSEMBLY

Include in #2:

104740-8330 as _

Cross reference number

ZEXEL 101671-9250 1016719250

NISSAN-DIESEL 1670095014 1670095014

Zexel num

Bosch num

Firm num

Name

101671-9250

1670095014 NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
ND6 * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 2.5 2.45 2.55

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 12.5

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 64.7 63.3 66.1

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 12.5

Pump speed r/min 650 650 650

Average injection quantity mm3/st. 58.3 55.7 60.9

Max. variation between cylinders % 0 -4 4

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 8.2+-0.5

Pump speed r/min 225 225 225

Average injection quantity mm3/st. 8.3 7.1 9.5

Max. variation between cylinders % 0 -13 13

Fixing the rack *

Timer adjustment

Pump speed r/min 300+-50

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 600

Advance angle deg. 1.3 0.9 1.7

Timer adjustment_03

Pump speed r/min 1000

Advance angle deg. 3.5 3 4

Timer adjustment_04

Pump speed r/min 1400

Advance angle deg. 6.1 5.7 6.5

Remarks
Finish

Test data Ex:

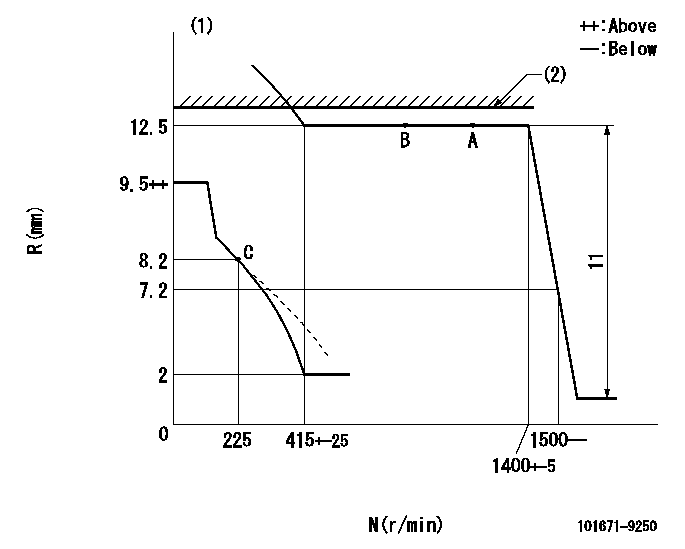

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Beginning of damper spring operation: DL (2)RACK LIMIT: RAL
----------
DL=7.7-0.2mm RAL=12.7+-0.1mm
----------

0000000901

F:Full load I:Idle S:Stop
----------

----------
a=39deg+-3deg b=10.5deg+-3deg c=13deg+-5deg
