101631-9861 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016319861




Information injection-pump assembly

ZEXEL 101631-9861 1016319861
101631-9861 INJECTION-PUMP ASSEMBLY
Rating:
21
Buy INJECTION-PUMP ASSEMBLY 101631-9861 zexel genuine, new aftermarket engine parts with delivery

Service parts 101631-9861 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 101063-9371
3. GOVERNOR 105542-4221
4. SUPPLY PUMP 105220-4871
5. AUTOM. ADVANCE MECHANIS 105622-1100
6. COUPLING PLATE
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105141-1881
11. Nozzle and Holder 16600-20053
12. Open Pre:MPa(Kqf/cm2) 9.8{100}
13. NOZZLE-HOLDER 105071-1241
14. NOZZLE 105000-1080
15. NOZZLE SET

Include in #1:

101631-9861 as INJECTION-PUMP ASSEMBLY

Include in #2:

Cross reference number

ZEXEL 101631-9861 1016319861


Zexel num
Bosch num
Firm num
Name
101631-9861
101631-9862

  NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
SD33 *

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-4-2-6- 3-5
Pre-stroke mm   2.15 2.1 2.2
Rack position   R=11.7
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-4
deg.   60 59.5 60.5
Difference between angles 2
Cyl.1-2
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cal 1-3
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-5
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   -
Rack position   12.2
Pump speed r/min   800 800 800
Average injection quantity mm3/st.   32.1 31.1 33.1
Max. variation between cylinders %   0 -2.5 2.5
Basic   *
Fixing the rack   *
Injection quantity adjustment_02
Adjusting point   -
Rack position   11.7
Pump speed r/min   1900 1900 1900
Average injection quantity mm3/st.   36.1 34.5 37.7
Max. variation between cylinders %   0 -4 4
Fixing the rack   *
Injection quantity adjustment_03
Adjusting point   -
Rack position   8.6+-0.5
Pump speed r/min   300 300 300
Average injection quantity mm3/st.   7.5 6.5 8.5
Max. variation between cylinders %   0 -15 15
Fixing the rack   *
Timer adjustment
Pump speed r/min   550--
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   500
Advance angle deg.   0.5
Timer adjustment_03
Pump speed r/min   1100
Advance angle deg.   1.7 1.2 2.2
Timer adjustment_04
Pump speed r/min   1900
Advance angle deg.   6 5.5 6.5
Remarks
Finish


Test data Ex:

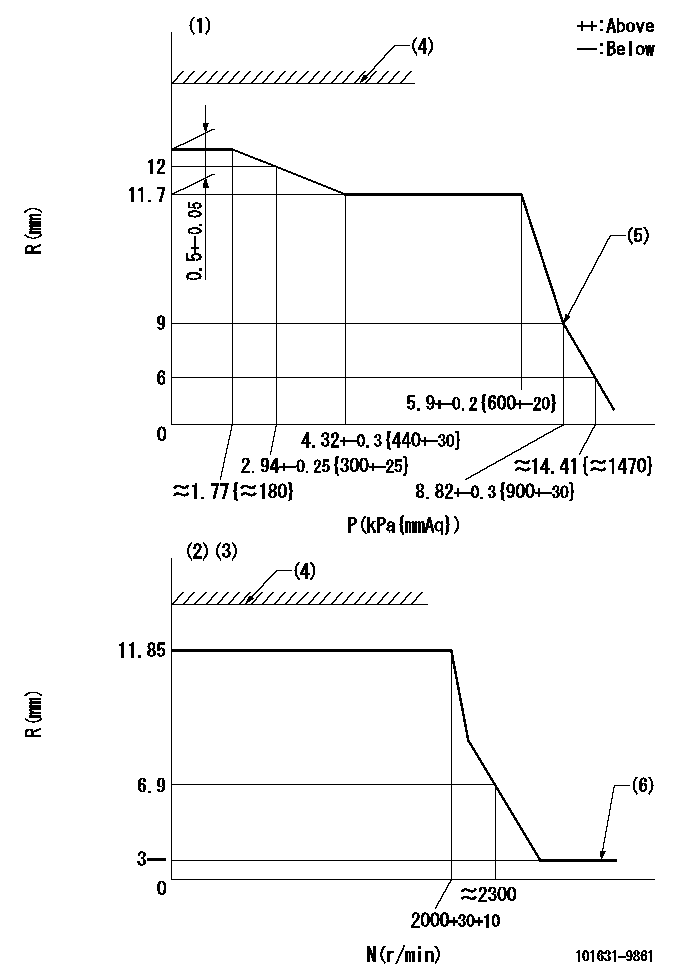

Governor adjustment

Test data 101631-9861
N:Pump speed R:Rack position (mm) P:Negative pressure (1)Pneumatic governor (2)Mechanical governor (3)Acting negative pressure: P1 (4)RACK LIMIT: RAL (5)Beginning of idle sub spring operation: L1 (6)Injection quantity Q = Q1 or less
----------
P1=3.63+-0.2kPa(370+-20mmAq) RAL=16.7-0.3mm L1=9+0.3mm Q1=3mm3/st
----------

Speed control lever angle

Test data 101631-9861
N:Normal B:When boosted S:Stop (1)Rack position = aa (2)Rack position corresponding to bb
----------
aa=0mm bb=18mm
----------
a=23.5deg+-3deg b=11.5deg+-5deg c=0.5deg+-5deg

Timing setting

Test data 101631-9861
(1)Pump vertical direction (2)Position of gear mark 'Y' at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=20deg
----------
a=(130deg)




Information:


Be sure to read the correct side of the dipstick. The ADD and FULL levels are not the same when checking the oil while stopped or while idling.
Checking Oil Pressure
Immediately after starting, and frequently during operation, observe the oil pressure gauge reading. The indicator should register in the NORMAL range. If the indicator fluctuates or registers below NORMAL range:1. Move the governor control to low idle position.2. Check the oil level. Be sure to read the ENGINE IDLING side of the dipstick.3. Add oil until the oil level is at the FULL mark on the ENGINE IDLING side of the dipstick. Do not overfill.4. Check for oil leaks.5. If necessary, stop the engine and have repairs made.Draining Engine Oil
With engine stopped and oil warm:1. Remove the crankcase oil drain plug.2. Allow the oil to drain. 3. Clean and install the drain plug.OR, if a sump pump is used:1. Connect a suitable drain line and container to the pump outlet.2. With engine stopped and oil warm, open the sump pump valve to the engine crankcase drain line: The two marks on the valve must be turned so that one mark points to the pump, and the second mark points to the engine drain line.3. Operate the sump pump handle until the crankcase is empty.4. Close the valve to the engine crankcase drain line.Cleaning the Breather
1. Release the hose clamp and disconnect the fumes disposal tube.2. Remove the breather assembly. 3. Wash the breather in solvent.4. Allow to drain dry and then wipe.5. Inspect the gasket. Install a new gasket if necessary.6. Install the breather.7. Connect the fumes disposal tube. Changing Oil Filter
1. Unscrew and remove the filter. 2. Be sure the old filter gasket did not remain attached inside the filter base: Leaking will occur between the new filter gasket and this old gasket.3. Wipe the filter base. 4. Apply a thin coat of clean oil to the gasket of the new filter. 5. Install the new filter: Hand tighten the filter 3/4turn after the filter gasket contacts the base. Use rotation index numbers, which are painted on the filter can, as a guide for proper tightening. Filling the Crankcase
1. Fill the crankcase to the safe starting range on the ENGINE STOPPED side of the dipstick. See the Lubrication Specifications for refill capacity and proper oil viscosity. 2. Start the engine and check for oil leaks.3. After the engine is warm, check the oil level with the engine idling.4. Add oil if necessary to maintain the oil level at the FULL mark on the ENGINE IDLING side of the dipstick.Fan Drive Bearings
Lubricate the fan drive bearings with lubricating grease through one fitting, 1 or 2 strokes.
LOCATION OF 4B4550 PRESSURE RELIEF FITTING AND 2D4867 FITTING SHOWN IN THE STANDARD LOCATION.If the grease fitting is not readily accessible, it may be necessary to1. Remove the 4B4550 Fitting (relief) from the fan mounting bracket assembly and install the 2D4867 Fitting in its place.2. Install the 4B4550 Fitting (relief) in place of the
