Information injection-pump assembly
BOSCH
9 400 613 297
9400613297
ZEXEL
101609-3750
1016093750
KOMATSU
4063844
4063844

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

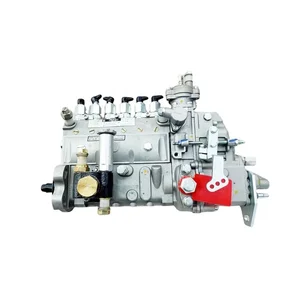

Compatible with Cummins Engine 6BT5.9 Fuel Injection Pump 101609-3750 4063845 1016093750 Compatible with Komatsu Excavator PC200-7 PC220-7 Engine SAA6D102
KoovDem Part Number: 101609-3750 4063845 1016093750 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Part Name: Fuel Injection Pump || The 6BT5.9 engine is a durable and efficient diesel engine commonly used in various vehicles and industrial equipment. With its turbocharged design and 5.9 liter displacement, it provides consistent power and torque for heavy-duty applications. Known for its reliability, fuel efficiency, and low emissions, this engine is a popular choice for operators seeking dependable and efficient power solutions. || Suitable for use with Cummins Engine 6BT5.9 || This product is designed to be compatible with the Komatsu Excavator models PC200-7 and PC220-7, specifically the engine SAA6D102. It is engineered to seamlessly integrate with these specific excavator models for optimal performance and reliability. With this compatibility, you can trust that this product will work efficiently and effectively with your Komatsu Excavator, providing a reliable solution for your construction or excavation needs.
KoovDem Part Number: 101609-3750 4063845 1016093750 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Part Name: Fuel Injection Pump || The 6BT5.9 engine is a durable and efficient diesel engine commonly used in various vehicles and industrial equipment. With its turbocharged design and 5.9 liter displacement, it provides consistent power and torque for heavy-duty applications. Known for its reliability, fuel efficiency, and low emissions, this engine is a popular choice for operators seeking dependable and efficient power solutions. || Suitable for use with Cummins Engine 6BT5.9 || This product is designed to be compatible with the Komatsu Excavator models PC200-7 and PC220-7, specifically the engine SAA6D102. It is engineered to seamlessly integrate with these specific excavator models for optimal performance and reliability. With this compatibility, you can trust that this product will work efficiently and effectively with your Komatsu Excavator, providing a reliable solution for your construction or excavation needs.

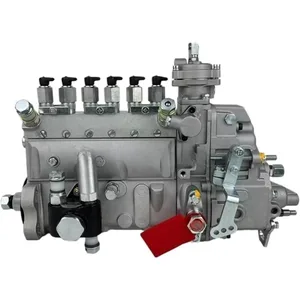

Fuel Injection Pump 101609-3760 101609-3750 6738-71-1520 Fits Compatible with Cummins Engine 6BT 6BTAA 5.9L 6BT5.9 Fits For Komatsu Excavator PC200-7 PC200-6 PC220-6 Engine 6D102
KoovDem Part Number: 6738-71-1520 101609-3760 101609-3750 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Part Name: Fuel Injection Pump || The 6D102 engine model is a reliable and durable choice for various applications like construction, generators, and agriculture. Its compact design and powerful performance make it popular among manufacturers and operators. Built to last with high-quality materials and precision engineering, this engine delivers consistent power in tough conditions. Overall, the 6D102 is a top choice for those in need of a dependable and efficient power source. || 6.7L 4BT 4BTA 4BT3.9 6BT 5.9L 6BT5.9 6BTA 5.9L 6BTA5.9. This part is designed to be compatible with Cummins engines such as the 6BT and 6BTAA, providing a dependable and precise fit. With a focus on quality and performance, this component is suitable for use in various Cummins engine models, ensuring reliable operation and optimal functionality. || Compatible with Komatsu excavator models PC200-7, PC200-6, and PC220-6, this high-quality 6D102 engine is designed for reliable performance. Ideal for heavy-duty construction work, it enhances productivity and efficiency. Perfect for routine maintenance or replacement, it ensures your Komatsu excavator runs smoothly and efficiently.
KoovDem Part Number: 6738-71-1520 101609-3760 101609-3750 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Part Name: Fuel Injection Pump || The 6D102 engine model is a reliable and durable choice for various applications like construction, generators, and agriculture. Its compact design and powerful performance make it popular among manufacturers and operators. Built to last with high-quality materials and precision engineering, this engine delivers consistent power in tough conditions. Overall, the 6D102 is a top choice for those in need of a dependable and efficient power source. || 6.7L 4BT 4BTA 4BT3.9 6BT 5.9L 6BT5.9 6BTA 5.9L 6BTA5.9. This part is designed to be compatible with Cummins engines such as the 6BT and 6BTAA, providing a dependable and precise fit. With a focus on quality and performance, this component is suitable for use in various Cummins engine models, ensuring reliable operation and optimal functionality. || Compatible with Komatsu excavator models PC200-7, PC200-6, and PC220-6, this high-quality 6D102 engine is designed for reliable performance. Ideal for heavy-duty construction work, it enhances productivity and efficiency. Perfect for routine maintenance or replacement, it ensures your Komatsu excavator runs smoothly and efficiently.
Fits Compatible with Cummins Engine 6BT 6BT5.9 Fuel Injection Pump 101062-9270 4063844 101609-3750
KoovDem Part Number: 101062-9270 4063844 101609-3750 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Part Name: Fuel Injection Pump || The 6BT5.9 engine is a durable and efficient diesel engine commonly used in vehicles and industrial equipment. With a turbocharged design and 5.9 liter displacement, it is ideal for heavy-duty applications. Known for its smooth operation, low emissions, and low maintenance, this engine delivers consistent power and torque for demanding tasks. Popular among operators for its reliability and efficiency, the 6BT5.9 engine is a top choice in various industries. || Eligible for use with Cummins Engine 6BT 6BT5.9 || Package includes: 1 piece of Fuel Injection Pump with part number 101062-9270 4063844 101609-3750.
KoovDem Part Number: 101062-9270 4063844 101609-3750 Note: Please check the fitment carefully before purchase. Or just tell us the part number you need. || Part Name: Fuel Injection Pump || The 6BT5.9 engine is a durable and efficient diesel engine commonly used in vehicles and industrial equipment. With a turbocharged design and 5.9 liter displacement, it is ideal for heavy-duty applications. Known for its smooth operation, low emissions, and low maintenance, this engine delivers consistent power and torque for demanding tasks. Popular among operators for its reliability and efficiency, the 6BT5.9 engine is a top choice in various industries. || Eligible for use with Cummins Engine 6BT 6BT5.9 || Package includes: 1 piece of Fuel Injection Pump with part number 101062-9270 4063844 101609-3750.
You can express buy:
Service parts 101609-3750 INJECTION-PUMP ASSEMBLY:
1.
_
5.
AUTOM. ADVANCE MECHANIS
6.
COUPLING PLATE
7.
COUPLING PLATE
8.
_
9.
_
11.
Nozzle and Holder
12.
Open Pre:MPa(Kqf/cm2)
22{224}
15.
NOZZLE SET
Include in #1:
101609-3750
as INJECTION-PUMP ASSEMBLY
Include in #2:
104268-1100
as _
Cross reference number
BOSCH
9 400 613 297
9400613297
ZEXEL
101609-3750
1016093750
KOMATSU
4063844
4063844
Zexel num
Bosch num
Firm num
Name
101609-3750
9 400 613 297
4063844 KOMATSU
INJECTION-PUMP ASSEMBLY
6BTAA K 14BE INJECTION PUMP ASSY PE6A PE
6BTAA K 14BE INJECTION PUMP ASSY PE6A PE
101609-3750
9 400 613 297
6738711520 KOMATSU
INJECTION-PUMP ASSEMBLY
6BTAA K 14BE INJECTION PUMP ASSY PE6A PE
6BTAA K 14BE INJECTION PUMP ASSY PE6A PE
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113 or {SAEJ967d}
1404 Test oil ISO4113 or {SAEJ967d}
Test oil temperature
degC
40
40
45
Nozzle and nozzle holder
105780-8140
Bosch type code
EF8511/9A
Nozzle
105780-0000
Bosch type code
DN12SD12T
Nozzle holder
105780-2080
Bosch type code
EF8511/9
Opening pressure
MPa
17.2
Opening pressure
kgf/cm2
175
Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600
Outer diameter - inner diameter - length (mm) mm 6-2-600
Overflow valve
131424-3420
Overflow valve opening pressure
kPa
255
221
289
Overflow valve opening pressure
kgf/cm2
2.6
2.25
2.95
Tester oil delivery pressure
kPa
255
255
255
Tester oil delivery pressure
kgf/cm2
2.6
2.6
2.6
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right R
Right R
Injection order
1-5-3-6-
2-4
Pre-stroke
mm
2.7
2.65
2.75
Rack position
After adjusting injection quantity. R=A
After adjusting injection quantity. R=A
Beginning of injection position
Drive side NO.1
Drive side NO.1
Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5
Cal 1-5 deg. 60 59.5 60.5
Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5
Cal 1-3 deg. 120 119.5 120.5
Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5
Cal 1-6 deg. 180 179.5 180.5
Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5
Cyl.1-2 deg. 240 239.5 240.5
Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5
Cal 1-4 deg. 300 299.5 300.5
Injection quantity adjustment
Adjusting point
A
Rack position
10.1
Pump speed
r/min
975
975
975
Average injection quantity
mm3/st.
110
109
111
Max. variation between cylinders
%
0
-2.5
2.5
Basic
*
Fixing the lever
*
Boost pressure
kPa
38.7
38.7
Boost pressure
mmHg
290
290
Injection quantity adjustment_02
Adjusting point
-
Rack position
6.7+-0.5
Pump speed
r/min
525
525
525
Average injection quantity
mm3/st.
9.5
8.5
10.5
Max. variation between cylinders
%
0
-15
15
Fixing the rack
*
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.
Adjust only variation between cylinders; adjust governor according to governor specifications.
Injection quantity adjustment_03
Adjusting point
D
Rack position
10.3++
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
90
85
95
Fixing the lever
*
Boost pressure
kPa
38.7
38.7
Boost pressure
mmHg
290
290
Rack limit
*
Injection quantity adjustment_04
Adjusting point
E
Rack position
9.4
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
50
45
55
Fixing the lever
*
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Boost compensator adjustment
Pump speed
r/min
850
850
850
Rack position
9.4
Boost pressure
kPa
10
8.7
11.3
Boost pressure
mmHg
75
65
85
Boost compensator adjustment_02
Pump speed
r/min
850
850
850
Rack position
(10.1)
Boost pressure
kPa
25.3
25.3
25.3
Boost pressure
mmHg
190
190
190
Test data Ex:
Governor adjustment

N:Pump speed
R:Rack position (mm)
(1)Target notch: K
(2)Tolerance for racks not indicated: +-0.05mm.
(3)It is not necessary to supply hydraulic pressure because the specification is for the hydraulic ACT normally ON.
(4)RACK LIMIT
(5)Set idle sub-spring
(6)Boost compensator stroke: BCL
----------
K=12 BCL=(0.7)mm
----------
----------
K=12 BCL=(0.7)mm
----------
Speed control lever angle

F:Full speed
I:Idle
(1)Use hole at R = aa (middle hole)
(2)Stopper bolt setting
----------
aa=77mm
----------
a=7deg+-5deg b=26deg+-5deg
----------
aa=77mm
----------
a=7deg+-5deg b=26deg+-5deg
Stop lever angle

N:Pump normal
S:Stop the pump.
(1)No return spring
----------
----------
a=0deg+-5deg b=53deg+-5deg
----------
----------
a=0deg+-5deg b=53deg+-5deg
0000001501 I/P WITH LOAD PLUNGER ADJ
Adjusting procedure for load plunger equipped pump with RSV (cam lock) governor (see service information S.I. 434 for details).
At cam lift h+-0.01, set the camshaft c deg from the * mark in accordance with the timing adjustment procedure.
2. Align the flyweight's timing tooth position and the lock pin groove and then fully tighten the flyweight to the camshaft. Then, remove the lock pin.
3. Adjust the maximum variation between cylinders and injection quantity.
4. Adjust using the pre-stroke adjusting shim so that the pre-stroke value is the value for 4/4 load (standard point A).
5. After adjusting the pre-stroke, reconfirm that the injection quantity and the maximum variation between cylinders are as specified.
6. At delivery, again fix the flyweight using the lock pin.
----------
h=2.7+-0.01mm c=5deg30min+-30min
----------
----------
h=2.7+-0.01mm c=5deg30min+-30min
----------
0000001601 TAMPER PROOF

Tamperproofing-equipped boost compensator cover installation procedure
(1)After adjusting the governor and the boost compensator, tighten to the specified torque to break off the bolt heads.
(Tightening torque T = T1 maximum)
(2)After adjusting the governor and the boost compensator, tighten to the specified torque to break off the bolt heads.
(Tightening torque T = T2)
(3)After adjusting the governor and the boost compensator, tighten to the specified torque to break off the bolt heads.
(Tightening torque T = T3)
----------
T1=7.16~9.12N-m(0.73~0.93kgf-m) T2=2.9~4.4N-m(0.3~0.45kgf-m) T3=2.9~4.4N-m(0.3~0.45kgf-m)
----------
----------
T1=7.16~9.12N-m(0.73~0.93kgf-m) T2=2.9~4.4N-m(0.3~0.45kgf-m) T3=2.9~4.4N-m(0.3~0.45kgf-m)
----------
Timing setting

(1)Pump vertical direction
(2)Key groove position for No. 1 cylinder's cam lift h = cc (at BTDC aa).
(3)Key groove position for No. 1 cylinder's beginning of injection (at point A after injection quantity adjustment).
(4)Position of the key groove of the No. 1 cylinder at B.T.D.C. bb (fix the governor flyweight at this position for delivery).
(5)B.T.D.C.: aa
----------
aa=11deg bb=0deg cc=2.7+-0.01mm
----------
a=55deg48min+-3deg b=55deg48min+-3deg13min48sec c=5deg30min+-30min
----------
aa=11deg bb=0deg cc=2.7+-0.01mm
----------
a=55deg48min+-3deg b=55deg48min+-3deg13min48sec c=5deg30min+-30min
