101609-3400 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016093400

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101609-3400 1016093400

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101609-3400 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101609-3400 1016093400

Zexel num

Bosch num

Firm num

Name

101609-3400

INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-3420

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 2.5 2.45 2.55

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 11.2

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 140.5 139.5 141.5

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the rack *

Injection quantity adjustment_02

Adjusting point C

Rack position 7+-0.5

Pump speed r/min 400 400 400

Average injection quantity mm3/st. 11 10 12

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Injection quantity adjustment_03

Adjusting point E

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 115 115 125

Fixing the lever *

Rack limit *

Test data Ex:

Governor adjustment

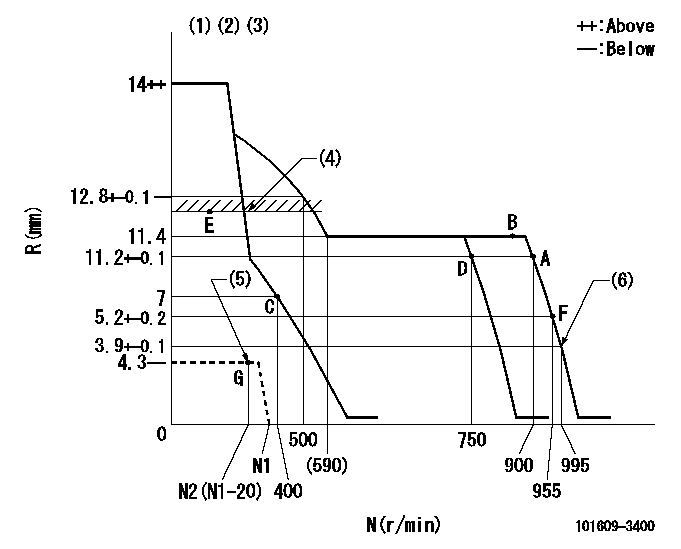

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)Adjust the secondary timing before adjusting the governor. (4)RACK LIMIT (5)Stop lever at stopping (with the speed lever at full) (6)Set idle sub-spring
----------
K=15
----------

Speed control lever angle

F:Full speed I:Idle (1)Set the pump speed at aa. ( At delivery ) (2)Set the pump speed at bb.
----------
aa=900r/min bb=750r/min
----------
a=(2deg)+-5deg b=(21deg)+-5deg c=(5deg)+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)No return spring
----------

----------
a=0deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Key groove position at No. 1 cylinder's beginning of injection position (at BTDC: aa). (3)Position of the key groove of the No. 1 cylinder at B.T.D.C. bb (fix the governor flyweight at this position for delivery). (4)B.T.D.C.: aa (5)At second timing adjustment, set the camshaft at the * position and tighten the flyweight locknut. (6)Align the flyweight's timing gear position with the lockpin groove and then fully tighten the flyweight to the camshaft. (7)Remove the lock pin and adjust the governor. Reinstall the lock pin to fix the flyweight for delivery.
----------
aa=16deg bb=0deg
----------
a=54deg54min+-3deg b=8deg+-30min
