101608-1430 ZEXEL 9 400 610 755 BOSCH INJECTION-PUMP ASSEMBLY 9400610755 1016081430 me078427




Information injection-pump assembly

BOSCH 9 400 610 755 9400610755
ZEXEL 101608-1430 1016081430
MITSUBISHI ME078427 me078427
101608-1430 INJECTION-PUMP ASSEMBLY
Rating:
25
Buy INJECTION-PUMP ASSEMBLY 101608-1430 zexel genuine, new aftermarket engine parts with delivery

Service parts 101608-1430 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 101061-8760
3. GOVERNOR 105412-2311
4. SUPPLY PUMP 105210-5450
5. AUTOM. ADVANCE MECHANIS 105672-5370
6. COUPLING PLATE
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105160-4190
11. Nozzle and Holder ME078067
12. Open Pre:MPa(Kqf/cm2) 17.7{180}
13. NOZZLE-HOLDER 105030-3350
14. NOZZLE 105025-0370
15. NOZZLE SET

Include in #1:

101608-1430 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 610 755 9400610755
ZEXEL 101608-1430 1016081430
MITSUBISHI ME078427 me078427


Zexel num
Bosch num
Firm num
Name
101608-1430
9 400 610 755
ME078427  MITSUBISHI
INJECTION-PUMP ASSEMBLY
6D16T K 14BF INJECTION PUMP ASSY PE6AD PE

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Overflow valve   131424-5520
Overflow valve opening pressure kPa   255 221 289
Overflow valve opening pressure kgf/cm2   2.6 2.25 2.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Left
  L
Injection timing adjustment
Direction of rotation (viewed from drive side)
Left
  L
Injection order   1-5-3-6- 2-4
Pre-stroke mm   4.5 4.45 4.55
Beginning of injection position
Governor side
  NO.1
Difference between angles 1
Cal 1-5
deg.   60 59.5 60.5
Difference between angles 2
Cal 1-3
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cyl.1-2
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-4
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   A
Rack position   10.2
Pump speed r/min   1000 1000 1000
Average injection quantity mm3/st.   93.5 92.5 94.5
Max. variation between cylinders %   0 -2.5 2.5
Basic   *
Fixing the lever   *
Injection quantity adjustment_02
Adjusting point   B
Rack position   7.8+-0.5
Pump speed r/min   425 425 425
Average injection quantity mm3/st.   10.5 9 12
Max. variation between cylinders %   0 -15 15
Fixing the rack   *
Timer adjustment
Pump speed r/min   0
Advance angle deg.   1.5 1 2
Timer adjustment_02
Pump speed r/min   -
Advance angle deg.   1.5 1 2
Remarks
Measure speed (beginning of operation).

Timer adjustment_03
Pump speed r/min   600
Advance angle deg.   0 0 0
Remarks
Finish


Test data Ex:

Governor adjustment

Test data 101608-1430

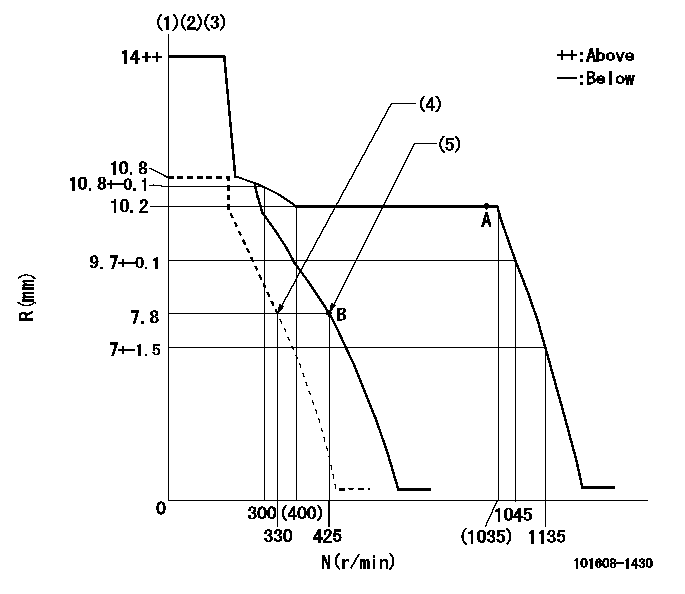

N:Pump speed R:Rack position (mm) (1)Notch fixed: K (2)Tolerance for racks not indicated: +-0.05mm. (3)Torque spring does not operate. (4)Set idle sub-spring (5)Main spring setting
----------
K=7
----------

Speed control lever angle

Test data 101608-1430
F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=(19deg)+-5deg b=(1deg)+-5deg

Stop lever angle

Test data 101608-1430
N:Pump normal S:Stop the pump.
----------

----------
a=26deg+-5deg b=53deg+-5deg

Timing setting

Test data 101608-1430
(1)Pump vertical direction (2)Position of coupling's tooth at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=11deg
----------
a=(1deg)
