101607-9844 ZEXEL F 01G 09U 060 BOSCH INJECTION-PUMP ASSEMBLY f01g09u060 1016079844 16714z5606




Information injection-pump assembly

BOSCH F 01G 09U 060 f01g09u060
ZEXEL 101607-9844 1016079844
NISSAN-DIESEL 16714Z5606 16714z5606
101607-9844 INJECTION-PUMP ASSEMBLY
Rating:
85
Buy INJECTION-PUMP ASSEMBLY 101607-9844 zexel genuine, new aftermarket engine parts with delivery

Include in #2:

Cross reference number

BOSCH F 01G 09U 060 f01g09u060
ZEXEL 101607-9844 1016079844
NISSAN-DIESEL 16714Z5606 16714z5606


Zexel num
Bosch num
Firm num
Name
101607-9844
F 01G 09U 060
16714Z5606  NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
FE6E * K

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8260
Bosch type code   9 430 610 133
Nozzle   105780-0120
Bosch type code   1 688 901 990
Nozzle holder   105780-2190
Opening pressure MPa   18
Opening pressure kgf/cm2   184
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Overflow valve   131425-0420
Overflow valve opening pressure kPa   157 123 191
Overflow valve opening pressure kgf/cm2   1.6 1.25 1.95
Tester oil delivery pressure kPa   255 255 255
Tester oil delivery pressure kgf/cm2   2.6 2.6 2.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-4-2-6- 3-5
Pre-stroke mm   3.7 3.65 3.75
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-4
deg.   60 59.5 60.5
Difference between angles 2
Cyl.1-2
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cal 1-3
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-5
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   -
Rack position   11.7
Pump speed r/min   800 800 800
Average injection quantity mm3/st.   92 90.4 93.6
Max. variation between cylinders %   0 -3.5 3.5
Basic   *
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Injection quantity adjustment_02
Adjusting point   Z
Rack position   9.5+-0.5
Pump speed r/min   265 265 265
Average injection quantity mm3/st.   9 7.2 10.8
Max. variation between cylinders %   0 -10 10
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Injection quantity adjustment_03
Adjusting point   A
Rack position   R1(11.7)
Pump speed r/min   800 800 800
Average injection quantity mm3/st.   92 91 93
Basic   *
Fixing the lever   *
Injection quantity adjustment_04
Adjusting point   B
Rack position   R1+0.95
Pump speed r/min   1500 1500 1500
Average injection quantity mm3/st.   97.5 93.5 101.5
Fixing the lever   *
Injection quantity adjustment_05
Adjusting point   C
Rack position   (R1-0.35 )
Pump speed r/min   600 600 600
Average injection quantity mm3/st.   86.5 82.5 90.5
Fixing the lever   *
Injection quantity adjustment_06
Adjusting point   I
Rack position   -
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   140 140 150
Fixing the lever   *
Rack limit   *
Timer adjustment
Pump speed r/min   (900)
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   1080
Advance angle deg.   2 1.5 2.5
Timer adjustment_03
Pump speed r/min   1225
Advance angle deg.   2 1.5 2.5
Timer adjustment_04
Pump speed r/min   1425
Advance angle deg.   6 5.5 6.5
Remarks
Finish


Test data Ex:

Governor adjustment

Test data 101607-9844

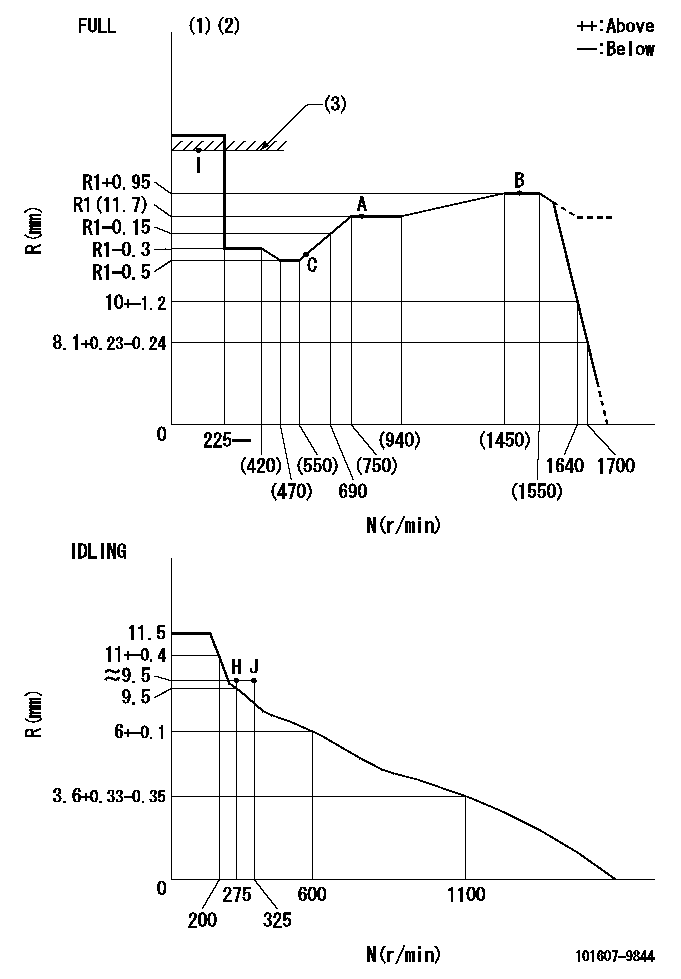

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT
----------
T1=L95
----------

Speed control lever angle

Test data 101607-9844
F:Full speed I:Idle (1)Use the hole at R = aa (2)Stopper bolt set position 'H'
----------
aa=100mm
----------
a=26.5deg+-5deg b=(46deg)+-3deg

Stop lever angle

Test data 101607-9844
N:Pump normal S:Stop the pump. (1)Use the pin at R = aa
----------
aa=42mm
----------
a=25deg+-5deg b=40deg+-5deg

Timing setting

Test data 101607-9844
(1)Pump vertical direction (2)Position of timer's threaded hole at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(60deg)
