101607-9120 ZEXEL 9 400 615 748 BOSCH INJECTION-PUMP ASSEMBLY 9400615748 1016079120 16713z6363




Information injection-pump assembly

BOSCH 9 400 615 748 9400615748
ZEXEL 101607-9120 1016079120
NISSAN-DIESEL 16713Z6363 16713z6363
101607-9120 INJECTION-PUMP ASSEMBLY
Rating:
76
Buy INJECTION-PUMP ASSEMBLY 101607-9120 zexel genuine, new aftermarket engine parts with delivery

Include in #2:

Cross reference number

BOSCH 9 400 615 748 9400615748
ZEXEL 101607-9120 1016079120
NISSAN-DIESEL 16713Z6363 16713z6363


Zexel num
Bosch num
Firm num
Name
101607-9120
9 400 615 748
16713Z6363  NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
FE6A * K

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Overflow valve   131424-1520
Overflow valve opening pressure kPa   157 123 191
Overflow valve opening pressure kgf/cm2   1.6 1.25 1.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-4-2-6- 3-5
Pre-stroke mm   3 2.95 3.05
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-4
deg.   60 59.5 60.5
Difference between angles 2
Cyl.1-2
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cal 1-3
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-5
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   -
Rack position   11.3
Pump speed r/min   600 600 600
Average injection quantity mm3/st.   48.2 46.6 49.8
Max. variation between cylinders %   0 -3.5 3.5
Basic   *
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Injection quantity adjustment_02
Adjusting point   -
Rack position   9.8+-0.5
Pump speed r/min   300 300 300
Average injection quantity mm3/st.   9 7.2 10.8
Max. variation between cylinders %   0 -10 10
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_03
Adjusting point   A
Rack position   R1(11.3)
Pump speed r/min   600 600 600
Average injection quantity mm3/st.   48.2 47.2 49.2
Basic   *
Fixing the lever   *
Injection quantity adjustment_04
Adjusting point   B
Rack position   R1-0.2
Pump speed r/min   1000 1000 1000
Average injection quantity mm3/st.   63.6 60.4 66.8
Fixing the lever   *
Injection quantity adjustment_05
Adjusting point   I
Rack position   -
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   80 80 90
Fixing the lever   *
Rack limit   *
Timer adjustment
Pump speed r/min   (1140)
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   1500
Advance angle deg.   4 3.5 4.5
Remarks
Finish


Test data Ex:

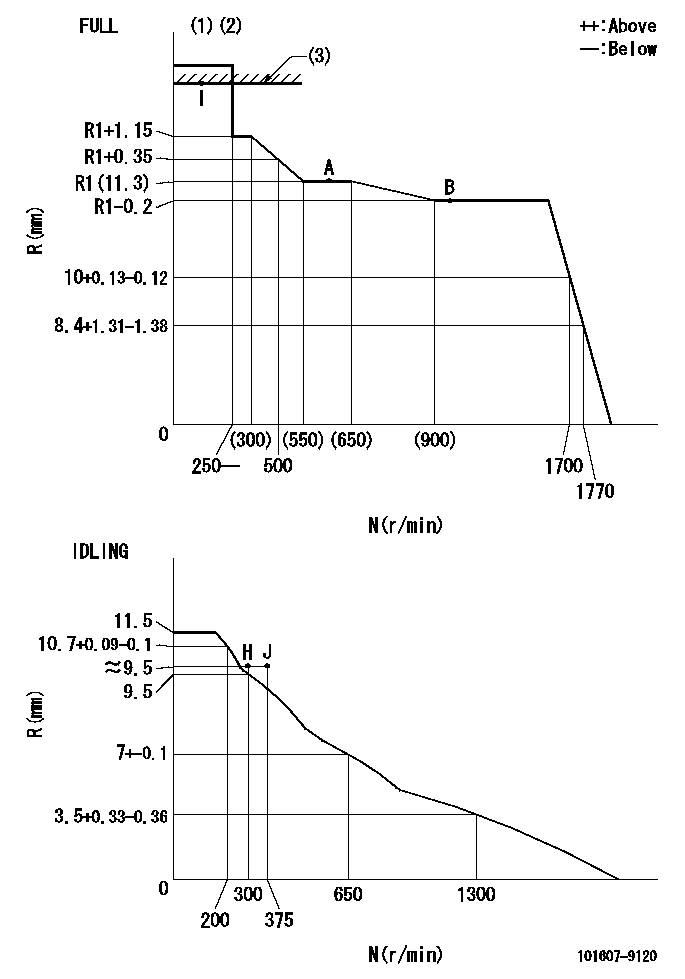

Governor adjustment

Test data 101607-9120
N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT
----------
T1=C42
----------

Speed control lever angle

Test data 101607-9120
F:Full speed I:Idle (1)Use the hole at R = aa (2)Stopper bolt set position 'H'
----------
aa=39mm
----------
a=26.5deg+-5deg b=40deg+-3deg

Stop lever angle

Test data 101607-9120
N:Pump normal S:Stop the pump.
----------

----------
a=20deg+-5deg b=40deg+-5deg

Timing setting

Test data 101607-9120
(1)Pump vertical direction (2)Position of timer's threaded hole at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(60deg)
