101606-9090 ZEXEL F 01G 09U 04U BOSCH INJECTION-PUMP ASSEMBLY f01g09u04u 1016069090 16713z5976

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH F 01G 09U 04U f01g09u04u

ZEXEL 101606-9090 1016069090

NISSAN-DIESEL 16713Z5976 16713z5976

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101606-9090 zexel genuine, new aftermarket engine parts with delivery

Service parts 101606-9090 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101060-5190

3. GOVERNOR 105921-6360

4. SUPPLY PUMP 105220-7020

5. AUTOM. ADVANCE MECHANIS 105614-3520

6. COUPLING PLATE 105662-1340

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105101-6340

11. Nozzle and Holder 16600-Z5600

12. Open Pre:MPa(Kqf/cm2) 19.6{200}

13. NOZZLE-HOLDER 105031-4650

14. NOZZLE 105015-8750

15. NOZZLE SET

Include in #1:

101401-7312 as _

101606-9090 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH F 01G 09U 04U f01g09u04u

ZEXEL 101606-9090 1016069090

NISSAN-DIESEL 16713Z5976 16713z5976

Zexel num

Bosch num

Firm num

Name

101606-9090

F 01G 09U 04U

16713Z5976 NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
FE6A * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-1520

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 3 2.95 3.05

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point -

Rack position 11.2

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 61.6 60 63.2

Max. variation between cylinders % 0 -3.5 3.5

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point H

Rack position 9.5+-0.5

Pump speed r/min 275 275 275

Average injection quantity mm3/st. 8.7 6.9 10.5

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_03

Adjusting point A

Rack position R1(11.2)

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 61.6 60.6 62.6

Basic *

Fixing the lever *

Injection quantity adjustment_04

Adjusting point B

Rack position R1+0.2

Pump speed r/min 1500 1500 1500

Average injection quantity mm3/st. 76.1 72.1 80.1

Fixing the lever *

Injection quantity adjustment_05

Adjusting point I

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 81 81 91

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min (1140)

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 1500

Advance angle deg. 4 3.5 4.5

Remarks
Finish

Test data Ex:

Governor adjustment

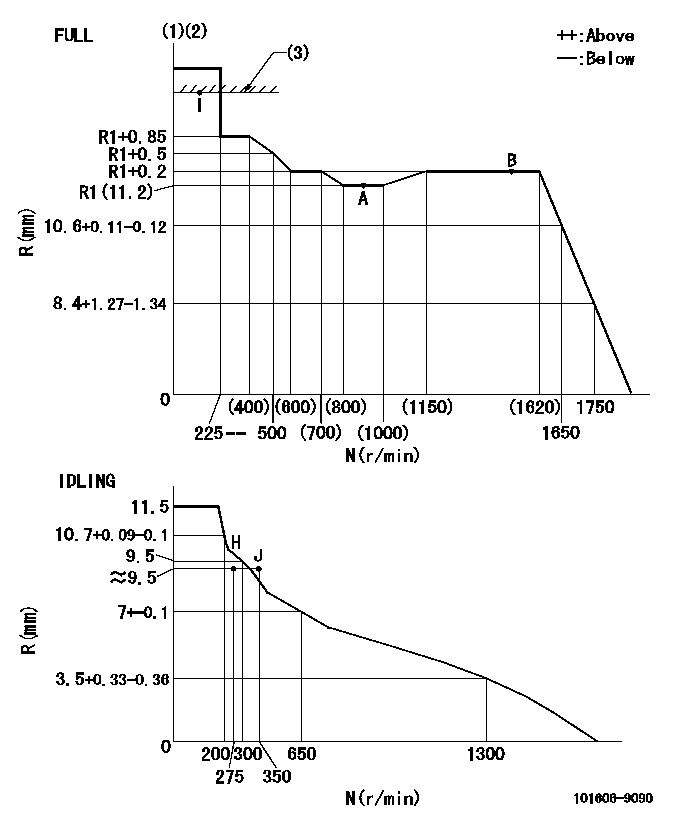

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT
----------
T1=H02
----------

Speed control lever angle

F:Full speed I:Idle (1)Use the hole at R = aa (2)Stopper bolt set position 'H'
----------
aa=36mm
----------
a=27.5deg+-5deg b=40deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=20deg+-5deg b=40deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of timer's threaded hole at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(60deg)
