101606-6660 ZEXEL 9 400 613 228 BOSCH INJECTION-PUMP ASSEMBLY 9400613228 1016066660 me047557




Information injection-pump assembly

BOSCH 9 400 613 228 9400613228
ZEXEL 101606-6660 1016066660
MITSUBISHI ME047557 me047557
101606-6660 INJECTION-PUMP ASSEMBLY
Rating:
74
Buy INJECTION-PUMP ASSEMBLY 101606-6660 zexel genuine, new aftermarket engine parts with delivery

Service parts 101606-6660 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 101061-8131
3. GOVERNOR 105490-5530
4. SUPPLY PUMP 105210-4980
5. AUTOM. ADVANCE MECHANIS 105643-0560
6. COUPLING PLATE
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105101-5540
11. Nozzle and Holder ME047437
12. Open Pre:MPa(Kqf/cm2) 17.7{180}
13. NOZZLE-HOLDER 105031-3900
14. NOZZLE 105015-6230
15. NOZZLE SET

Include in #1:

101606-6660 as INJECTION-PUMP ASSEMBLY

Include in #2:

Cross reference number

BOSCH 9 400 613 228 9400613228
ZEXEL 101606-6660 1016066660
MITSUBISHI ME047557 me047557


Zexel num
Bosch num
Firm num
Name
101606-6660
9 400 613 228
ME047557  MITSUBISHI
INJECTION-PUMP ASSEMBLY
6D16T K 14BF INJECTION PUMP ASSY PE6AD PE

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Overflow valve   131424-5520
Overflow valve opening pressure kPa   255 221 289
Overflow valve opening pressure kgf/cm2   2.6 2.25 2.95
Tester oil delivery pressure kPa   255 255 255
Tester oil delivery pressure kgf/cm2   2.6 2.6 2.6
Direction of rotation (viewed from drive side)
Left
  L
Injection timing adjustment
Direction of rotation (viewed from drive side)
Left
  L
Injection order   1-5-3-6- 2-4
Pre-stroke mm   4.2 4.15 4.25
Beginning of injection position
Governor side
  NO.1
Difference between angles 1
Cal 1-5
deg.   60 59.5 60.5
Difference between angles 2
Cal 1-3
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cyl.1-2
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-4
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   A
Rack position   9.8
Pump speed r/min   1400 1400 1400
Average injection quantity mm3/st.   94.8 93.8 95.8
Max. variation between cylinders %   0 -2.5 2.5
Basic   *
Fixing the lever   *
Injection quantity adjustment_02
Adjusting point   E
Rack position   8.1+-0.5
Pump speed r/min   340 340 340
Average injection quantity mm3/st.   13.8 12.3 15.3
Max. variation between cylinders %   0 -15 15
Fixing the rack   *
Timer adjustment
Pump speed r/min   1050--
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   1000
Advance angle deg.   0.5
Timer adjustment_03
Pump speed r/min   1400
Advance angle deg.   3 2.5 3.5
Remarks
Finish


Test data Ex:

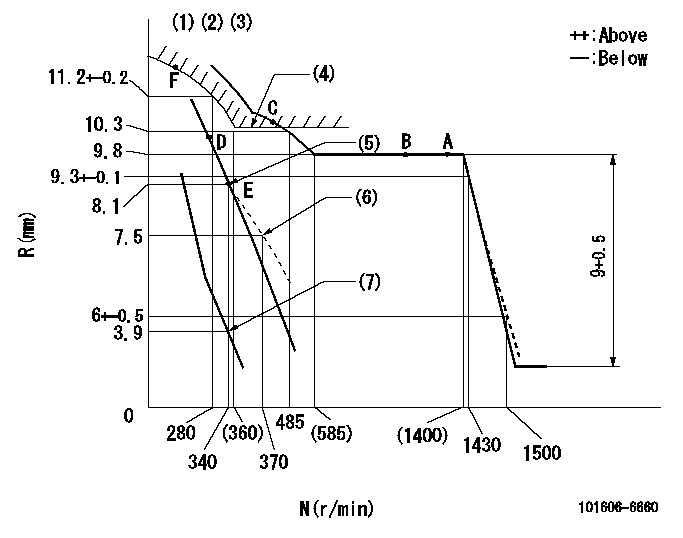

Governor adjustment

Test data 101606-6660
N:Pump speed R:Rack position (mm) (1)Lever ratio: RT (2)Target shim dimension: TH (3)Tolerance for racks not indicated: +-0.05mm. (4)Excess fuel setting for starting: SXL (5)Main spring setting (6)Damper spring setting (7)Set idle sub-spring
----------
RT=1 TH=2.7mm SXL=10.7+-0.1mm
----------

Speed control lever angle

Test data 101606-6660
F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=(20deg)+-5deg b=(3deg)+-5deg

0000000901

Test data 101606-6660
F:Full load (1)Fix the lever at the full load position
----------

----------
a=16deg+-5deg

Stop lever angle

Test data 101606-6660
N:Pump normal S:Stop the pump.
----------

----------
a=20deg+-5deg b=71deg+-5deg

Timing setting

Test data 101606-6660
(1)Pump vertical direction (2)Position of timer's tooth at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=14deg
----------
a=(1deg)




Information:
