101606-1741 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016061741 me076211

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101606-1741 1016061741

MITSUBISHI ME076211 me076211

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101606-1741 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101606-1741 1016061741

MITSUBISHI ME076211 me076211

Zexel num

Bosch num

Firm num

Name

101606-1741

ME076211 MITSUBISHI

INJECTION-PUMP ASSEMBLY
6D16T * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-5520

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Left L

Injection timing adjustment

Direction of rotation (viewed from drive side)
Left L

Injection order 1-5-3-6- 2-4

Pre-stroke mm 4.2 4.15 4.25

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point -

Rack position 13

Pump speed r/min 700 700 700

Each cylinder's injection qty mm3/st. 96.8 93.9 99.7

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point H

Rack position 9.5+-0.5

Pump speed r/min 275 275 275

Each cylinder's injection qty mm3/st. 10.2 8.7 11.7

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_03

Adjusting point A

Rack position R1(13)

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 96.8 95.8 97.8

Basic *

Fixing the lever *

Boost pressure kPa 33.3 33.3

Boost pressure mmHg 250 250

Injection quantity adjustment_04

Adjusting point B

Rack position R1-0.35

Pump speed r/min 1400 1400 1400

Average injection quantity mm3/st. 100.3 96.3 104.3

Fixing the lever *

Boost pressure kPa 33.3 33.3

Boost pressure mmHg 250 250

Injection quantity adjustment_05

Adjusting point C

Rack position R2-0.6

Pump speed r/min 300 300 300

Average injection quantity mm3/st. 66.9 62.9 70.9

Fixing the lever *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Injection quantity adjustment_06

Adjusting point D

Rack position R2(R1+0. 25)

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 96.5 92.5 100.5

Fixing the lever *

Boost pressure kPa 33.3 33.3

Boost pressure mmHg 250 250

Injection quantity adjustment_07

Adjusting point I

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 95 75 115

Fixing the lever *

Rack limit *

Boost compensator adjustment

Pump speed r/min 450 450 450

Rack position R2-0.6

Boost pressure kPa 6 4.7 7.3

Boost pressure mmHg 45 35 55

Boost compensator adjustment_02

Pump speed r/min 450 450 450

Rack position R2(R1+0. 25)

Boost pressure kPa 20 20 20

Boost pressure mmHg 150 150 150

Timer adjustment

Pump speed r/min 1150

Advance angle deg. 0.5

Timer adjustment_02

Pump speed r/min 1250

Advance angle deg. 1.7 1.2 2.2

Timer adjustment_03

Pump speed r/min 1350

Advance angle deg. 3.5 3 4

Remarks
Finish

Test data Ex:

Governor adjustment

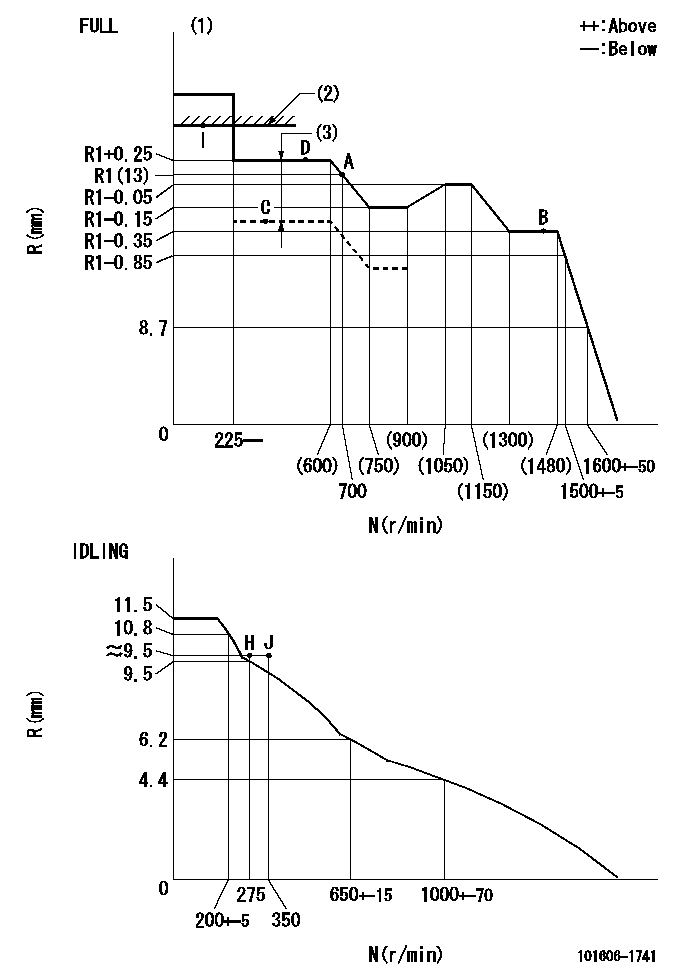

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)RACK LIMIT (3)Boost compensator stroke: BCL
----------
T1=D24 BCL=0.6+-0.1mm
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt set position 'H'
----------

----------
a=18.5deg+-5deg b=41deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Set the stopper bolt at speed = rated point and rack position = aa (non-injection rack position). Confirm non-injection. (2)After setting the stopper bolt , confirm non-injection at pump speed bb. Rack position = cc (non-injection rack position).
----------
aa=6.5-0.5mm bb=275r/min cc=8.6-0.5mm
----------
a=11.5deg+-5deg b=27deg+-5deg

0000001501 MICRO SWITCH

Adjustment of the micro-switch Adjust the bolt to obtain the following lever position when the micro-switch is ON. (1)Speed N1 (2)Rack position Ra
----------
N1=400+-5r/min Ra=9.2mm
----------

Timing setting

(1)Pump vertical direction (2)Position of timer's tooth at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=10deg
----------
a=(2deg)
