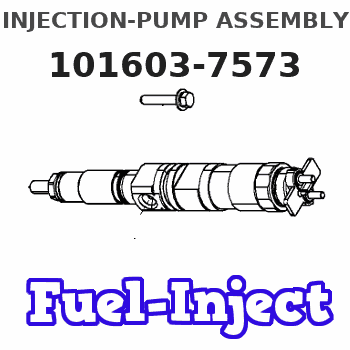

Information injection-pump assembly
ZEXEL
101603-7573
1016037573
ISUZU
8943965864
8943965864
Rating:
Service parts 101603-7573 INJECTION-PUMP ASSEMBLY:
1.
_
7.
COUPLING PLATE
8.
_
9.
_
11.
Nozzle and Holder
8-94394-787-1
12.
Open Pre:MPa(Kqf/cm2)
18.1{185}
15.
NOZZLE SET
Include in #1:
101603-7573
as INJECTION-PUMP ASSEMBLY
Include in #2:
104749-5140
as _
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Improved Diesel Exhaust Fluid (DEF) cooling line clamps are adaptable to the product within the listed serial numbers and are effective with all the product after the listed serial numbers.
Table 1
Required Parts
Item Qty Part Number Part Name Former Part Number(1)
1 10 577-7966 Clamp 520-7003
(1) The former part number listed is for reference only and may differ.
Table 2
Required Tool
Qty Part Number Part Name
1 522-3730 Pliers
Illustration 1 g06408909
View of 398-6108 Cooling Lines Gp
(1) 577-7966 ClampInstall new clamps (1) in 398-6108 Cooling Lines Gp.Note: Ensure 522-3730 Pliers tool is used to install new clamp.
Illustration 2 g06408916
(1) 577-7966 Clamp
(A) Hose
(D1) 5 mm (0.20 inch)Position clamp (1) within 5 mm (0.20 inch) of the bead and perpendicular to the hose axis. If the hose insertion length permits, another clamp can be installed to ensure fluid retention.
