101603-7550 ZEXEL 9 400 615 194 BOSCH INJECTION-PUMP ASSEMBLY 9400615194 1016037550

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 615 194 9400615194

ZEXEL 101603-7550 1016037550

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101603-7550 zexel genuine, new aftermarket engine parts with delivery

Include in #2:

104749-5150 as _

Cross reference number

BOSCH 9 400 615 194 9400615194

ZEXEL 101603-7550 1016037550

Zexel num

Bosch num

Firm num

Name

101603-7550

9 400 615 194

INJECTION-PUMP ASSEMBLY
6HE1-S *

101603-7550

9 400 615 194

8943969270 ISUZU

INJECTION-PUMP ASSEMBLY
6HE1-S *

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8210

Nozzle 105780-0070

Bosch type code DN12SD12T-1

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-4920

Overflow valve opening pressure kPa 127 107 147

Overflow valve opening pressure kgf/cm2 1.3 1.1 1.5

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Left L

Injection timing adjustment

Direction of rotation (viewed from drive side)
Left L

Injection order 1-5-3-6- 2-4

Pre-stroke mm 4.2 4.15 4.25

Rack position
After adjusting injection quantity. R=A

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point -

Rack position 11.2

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 73.5 71.9 75.1

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point H

Rack position 9.5+-0.5

Pump speed r/min 260 260 260

Average injection quantity mm3/st. 8.3 7 9.6

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_03

Adjusting point A

Rack position R1(11.2)

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 73.5 72.5 74.5

Basic *

Fixing the lever *

Injection quantity adjustment_04

Adjusting point B

Rack position R1-0.1

Pump speed r/min 1500 1500 1500

Average injection quantity mm3/st. 84.6 80.6 88.6

Fixing the lever *

Injection quantity adjustment_05

Adjusting point C

Rack position R1-0.3

Pump speed r/min 600 600 600

Average injection quantity mm3/st. 55.3 52.1 58.5

Fixing the lever *

Injection quantity adjustment_06

Adjusting point I

Rack position -

Pump speed r/min 150 150 150

Average injection quantity mm3/st. 103 103 135

Fixing the lever *

Timer adjustment

Pump speed r/min (1220)

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 1300

Advance angle deg. 1.3 0.8 1.8

Timer adjustment_03

Pump speed r/min 1500

Advance angle deg. 5.5 5 6

Remarks
Finish

Test data Ex:

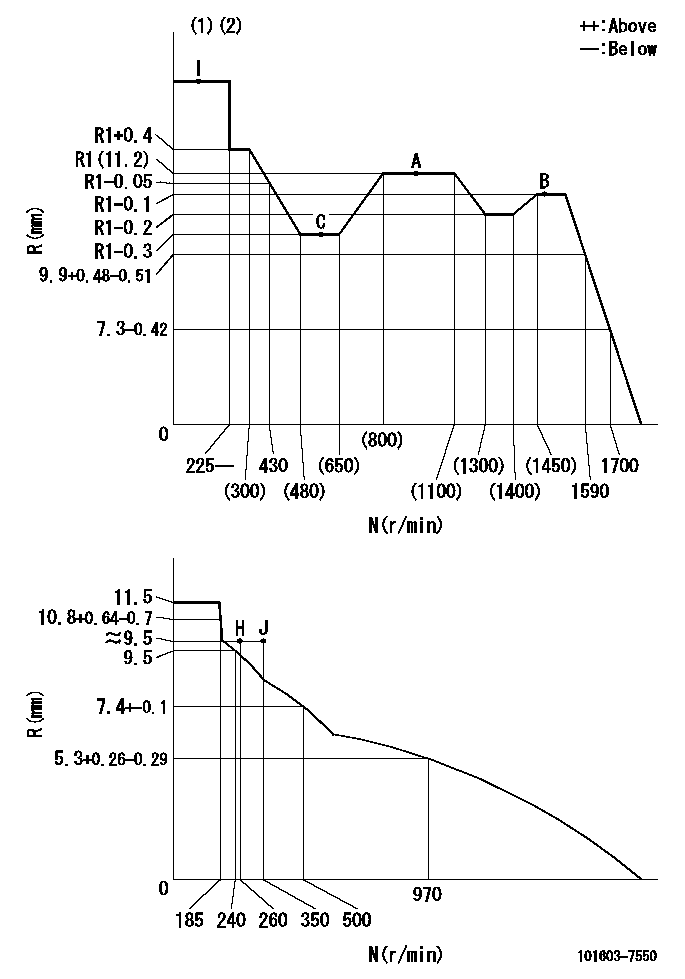

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)Tolerance for racks not indicated: +-0.05mm.
----------
T1=F10
----------

Speed control lever angle

F:Full speed I:Idle (1)Use the hole at R = aa (2)Stopper bolt set position 'H'
----------
aa=60mm
----------
a=28.5deg+-5deg b=(36.5deg)+-3deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=32.5deg+-5deg b=40deg+-5deg

0000001501 I/P WITH LOAD PLUNGER ADJ

Plunger assembly number: PL (stamping: ST) 1. Adjustment procedures (1)Insert the pre-stroke adjusting shims L1 for each cylinder. (2)Adjust injection quantity.(max. var. bet. cyl. idling a1, full a2) (3)At basic point A, adjust so that the pre-stroke is L2. (4)Reconfirm the injection quantity.
----------
PL=131153-4520 ST=A724 L1=1mm L2=4.2+-0.05mm a1=+-14% a2=+-2.5%
----------

Timing setting

(1)Pump vertical direction (2)Position of timer's threaded hole at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)- (5)Pump vertical direction (6)Direction of rotation (7)Pointer (8)Pointer stamping (9)Timing device stamping (10)Timing device (11)Move b deg and stamp both at the same time as shown above. (12)Outside circumference of timing device (13)Secondary timing stamping position for the No. 1 cylinder's beginning of injection
----------
aa=11deg
----------
a=(150deg) b=1deg

Information:

Illustration 1 g02004767
(1) Ring for Identification (2) 228-7094 O-Ring Seal (3) 345-3399 Injector Sleeve An oversized injector sleeve will be introduced in order to improve the life cycle of the cylinder heads. The new sleeve has an oversized outside diameter, which does not allow the injector sleeve to fit the standard bore. The oversized sleeve will have an added ring that is located around the middle of the insert for identification. Also, the new sleeve will require a larger bottom O-ring. Refer to Illustration 1.
Illustration 2 g02004793
(4) Identification markThe remanufactured cylinder head has an identification mark that is located on the top of the cylinder head. This mark indicates the cylinders that have the oversized inserts.
