101603-4060 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016034060 1156020030

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101603-4060 1016034060

ISUZU 1156020030 1156020030

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101603-4060 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101603-4060 1016034060

ISUZU 1156020030 1156020030

Zexel num

Bosch num

Firm num

Name

101603-4060
101603-4063

1156020030 ISUZU

INJECTION-PUMP ASSEMBLY
6SA1 *

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Left L

Injection timing adjustment

Direction of rotation (viewed from drive side)
Left L

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.2 3.15 3.25

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point -

Rack position 11.7

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 89.5 87.9 91.1

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point H

Rack position 9.5+-0.5

Pump speed r/min 250 250 250

Average injection quantity mm3/st. 10.4 8.4 12.4

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_03

Adjusting point A

Rack position R1(11.7)

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 89.5 88.5 90.5

Basic *

Fixing the lever *

Injection quantity adjustment_04

Adjusting point C

Rack position R1-0.2

Pump speed r/min 550 550 550

Average injection quantity mm3/st. 79.7 78.1 81.3

Fixing the lever *

Injection quantity adjustment_05

Adjusting point I

Rack position 14.5+-0. 5

Pump speed r/min 100 100 100

Each cylinder's injection qty mm3/st. 107.7 107.7 117.7

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min 800

Advance angle deg. 0.5

Timer adjustment_02

Pump speed r/min 1000

Advance angle deg. 1 0.5 1.5

Timer adjustment_03

Pump speed r/min 1200

Advance angle deg. 2.3 1.8 2.8

Timer adjustment_04

Pump speed r/min 1350

Advance angle deg. 3.5 3 4

Remarks
Finish

Test data Ex:

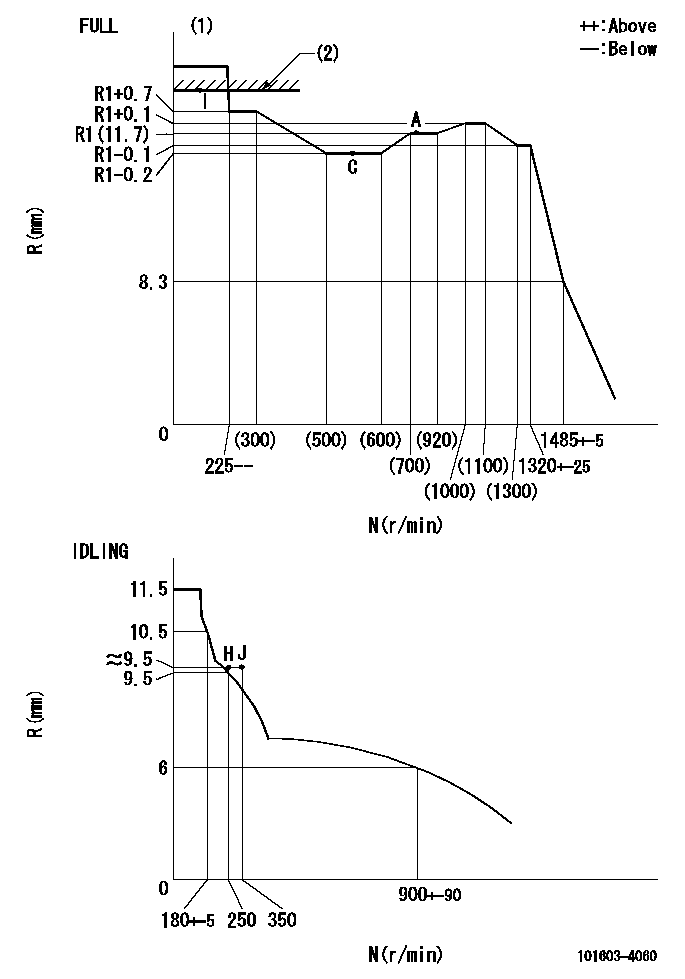

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)RACK LIMIT
----------
T1=62
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt set position 'H'
----------

----------
a=18deg+-5deg b=(29deg)+-3deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=25deg+-5deg b=40deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of timer's threaded hole at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=20deg
----------
a=(30deg)
