101603-2631 ZEXEL 9 400 611 698 BOSCH INJECTION-PUMP ASSEMBLY 9400611698 1016032631

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 611 698 9400611698

ZEXEL 101603-2631 1016032631

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101603-2631 zexel genuine, new aftermarket engine parts with delivery

Service parts 101603-2631 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101060-5310

3. GOVERNOR 105401-0861

4. SUPPLY PUMP 105210-5560

5. AUTOM. ADVANCE MECHANIS 105672-0560

6. COUPLING PLATE 105662-1160

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105160-4100

11. Nozzle and Holder 23600-2710A

12. Open Pre:MPa(Kqf/cm2) 17.7{180}

13. NOZZLE-HOLDER 105030-4440

14. NOZZLE 105015-9220

15. NOZZLE SET

Include in #1:

101603-2631 as INJECTION-PUMP ASSEMBLY

Include in #2:

104749-6830 as _

Cross reference number

BOSCH 9 400 611 698 9400611698

ZEXEL 101603-2631 1016032631

Zexel num

Bosch num

Firm num

Name

101603-2631
101603-2632

9 400 611 698

INJECTION-PUMP ASSEMBLY
* K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 134424-0920

Overflow valve opening pressure kPa 162 147 177

Overflow valve opening pressure kgf/cm2 1.65 1.5 1.8

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 4.8 4.77 4.83

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.75 60.25

Difference between angles 2
Cyl.1-2 deg. 120 119.75 120.25

Difference between angles 3
Cal 1-6 deg. 180 179.75 180.25

Difference between angles 4
Cal 1-3 deg. 240 239.75 240.25

Difference between angles 5
Cal 1-5 deg. 300 299.75 300.25

Injection quantity adjustment

Adjusting point A

Rack position 11.8

Pump speed r/min 1300 1300 1300

Average injection quantity mm3/st. 121.5 119.5 123.5

Max. variation between cylinders % 0 -3.5 3.5

Basic *

Fixing the lever *

Boost pressure kPa 37.3 37.3

Boost pressure mmHg 280 280

Injection quantity adjustment_02

Adjusting point -

Rack position 6.2+-0.5

Pump speed r/min 550 550 550

Average injection quantity mm3/st. 10 9 11

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Boost compensator adjustment

Pump speed r/min 800 800 800

Rack position R1-0.7

Boost pressure kPa 10.7 10.7 12

Boost pressure mmHg 80 80 90

Boost compensator adjustment_02

Pump speed r/min 800 800 800

Rack position R1(11.8)

Boost pressure kPa 24 24 24

Boost pressure mmHg 180 180 180

Timer adjustment

Pump speed r/min -

Advance angle deg. 0 0 0

Remarks
Measure speed (beginning of operation).

Timer adjustment_02

Pump speed r/min -

Advance angle deg. 1.5 1.2 1.8

Remarks
Measure the actual speed, stop

Test data Ex:

Governor adjustment

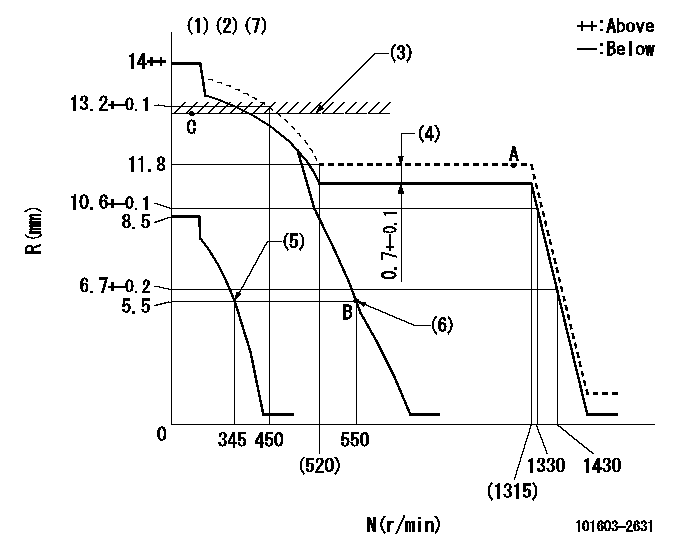

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)SMA RACK LIMIT; RAL (boost pressure exceeds P1 at N = N1) (4)Boost compensator stroke (5)Set idle sub-spring (6)Main spring setting (7)Perform governor adjustment at an ambient temperature of at least 15 deg C (rack limit spring is shape memory alloy).
----------
K=13 RAL=13.1+-0.1mm N1=350r/min P1=37.3kPa(280mmHg)
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=16deg+-5deg b=24deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Pump speed aa and rack position bb (to be sealed at delivery) (2)Normal stop (3)Stopper bolt setting (4)Stopper bolt setting (5)Use the hole above R = cc
----------
aa=0r/min bb=1-0.5mm cc=25mm
----------
a=13deg+-5deg b=50deg+-5deg

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(50deg)
