101603-2290 ZEXEL 9 400 610 643 BOSCH INJECTION-PUMP ASSEMBLY 9400610643 1016032290 220204660a

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 610 643 9400610643

ZEXEL 101603-2290 1016032290

HINO 220204660A 220204660a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101603-2290 zexel genuine, new aftermarket engine parts with delivery

Service parts 101603-2290 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101061-9940

3. GOVERNOR 105402-2590

4. SUPPLY PUMP 105220-5300

5. AUTOM. ADVANCE MECHANIS 105676-1010

6. COUPLING PLATE

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105110-5161

11. Nozzle and Holder 23600-2142A

12. Open Pre:MPa(Kqf/cm2) 19.6{200}

13. NOZZLE-HOLDER 105041-5041

14. NOZZLE 105015-8241

15. NOZZLE SET

Include in #1:

101603-2290 as INJECTION-PUMP ASSEMBLY

101603-7593 as _

Cross reference number

BOSCH 9 400 610 643 9400610643

ZEXEL 101603-2290 1016032290

HINO 220204660A 220204660a

Zexel num

Bosch num

Firm num

Name

101603-2290
101603-2291

9 400 610 643

220204660A HINO

INJECTION-PUMP ASSEMBLY
W06E * K 14BE PE6A PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 134424-0920

Overflow valve opening pressure kPa 162 147 177

Overflow valve opening pressure kgf/cm2 1.65 1.5 1.8

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 3.45 3.42 3.48

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.75 60.25

Difference between angles 2
Cyl.1-2 deg. 120 119.75 120.25

Difference between angles 3
Cal 1-6 deg. 180 179.75 180.25

Difference between angles 4
Cal 1-3 deg. 240 239.75 240.25

Difference between angles 5
Cal 1-5 deg. 300 299.75 300.25

Injection quantity adjustment

Adjusting point A

Rack position 9

Pump speed r/min 1050 1050 1050

Average injection quantity mm3/st. 37.8 35.8 39.8

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point C

Rack position 7.9+-0.5

Pump speed r/min 425 425 425

Average injection quantity mm3/st. 13.5 12 15

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Injection quantity adjustment_03

Adjusting point D

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 80 80 90

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min 900--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 850

Advance angle deg. 0.3

Timer adjustment_03

Pump speed r/min 1050

Advance angle deg. 1.5 1.2 1.8

Remarks
Finish

Test data Ex:

Governor adjustment

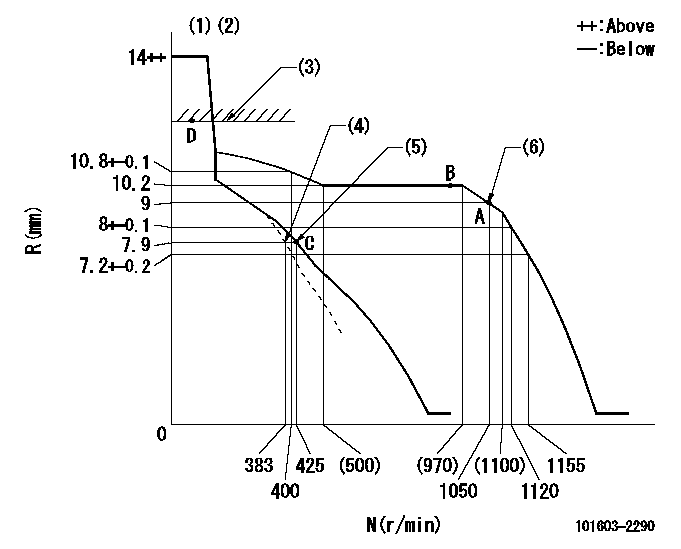

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Main spring setting (5)Set idle sub-spring (6)Set the torque spring.
----------
K=14
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=9deg+-5deg b=17deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Rack position aa or less, pump speed bb
----------
aa=7.4mm bb=0r/min
----------
a=27deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of gear's standard threaded hole at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(70deg)
