101603-2061 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016032061 220204341a

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101603-2061 1016032061

HINO 220204341A 220204341a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101603-2061 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101603-2061 1016032061

HINO 220204341A 220204341a

Zexel num

Bosch num

Firm num

Name

101603-2061
101603-2062

220204341A HINO

INJECTION-PUMP ASSEMBLY
H07C-T * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 134424-0920

Overflow valve opening pressure kPa 162 147 177

Overflow valve opening pressure kgf/cm2 1.65 1.5 1.8

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 4.8 4.77 4.83

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.75 60.25

Difference between angles 2
Cyl.1-2 deg. 120 119.75 120.25

Difference between angles 3
Cal 1-6 deg. 180 179.75 180.25

Difference between angles 4
Cal 1-3 deg. 240 239.75 240.25

Difference between angles 5
Cal 1-5 deg. 300 299.75 300.25

Injection quantity adjustment

Adjusting point A

Rack position 9.5

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 85.5 84 87

Max. variation between cylinders % 0 -3.5 3.5

Basic *

Fixing the lever *

Boost pressure kPa 36 36

Boost pressure mmHg 270 270

Injection quantity adjustment_02

Adjusting point -

Rack position 6.4+-0.5

Pump speed r/min 400 400 400

Average injection quantity mm3/st. 10 9 11

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Boost compensator adjustment

Pump speed r/min 600 600 600

Rack position 9.9

Boost pressure kPa 14.7 12 17.4

Boost pressure mmHg 110 90 130

Boost compensator adjustment_02

Pump speed r/min 600 600 600

Rack position 10.5

Boost pressure kPa 22.7 22.7 22.7

Boost pressure mmHg 170 170 170

Timer adjustment

Pump speed r/min (N1+50)- -

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min N1

Advance angle deg. 0.5

Remarks
Measure the actual speed.

Timer adjustment_03

Pump speed r/min -

Advance angle deg. 2 1.5 2.5

Remarks
Measure the actual speed, stop

Test data Ex:

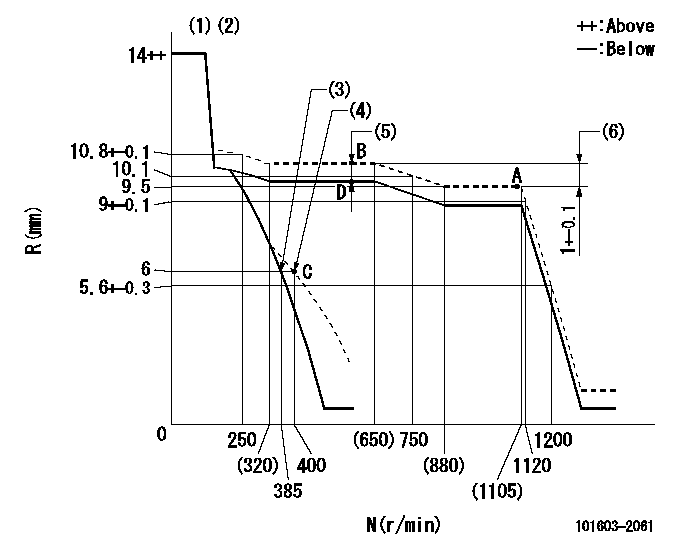

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)Main spring setting (4)Set idle sub-spring (5)Boost compensator stroke: BCL (6)Rack difference between N = N1 and N = N2
----------
K=16 BCL=0.6+-0.1mm N1=1100r/min N2=600r/min
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=12deg+-5deg b=24deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Speed = aa, rack position = bb (sealed at shipping)
----------
aa=0r/min bb=1-0.2mm
----------
a=21deg+-5deg b=(55deg)

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(50deg)
