101603-1201 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016031201 me039660

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101603-1201 1016031201

MITSUBISHI ME039660 me039660

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101603-1201 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101603-1201 1016031201

MITSUBISHI ME039660 me039660

Zexel num

Bosch num

Firm num

Name

101603-1201
101603-1202

ME039660 MITSUBISHI

INJECTION-PUMP ASSEMBLY
6D14T *

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-3720

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Left L

Injection timing adjustment

Direction of rotation (viewed from drive side)
Left L

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.3 3.25 3.35

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 10.7

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 74 73 75

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 8.2+-0.5

Pump speed r/min 300 300 300

Average injection quantity mm3/st. 13 11.5 14.5

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Timer adjustment

Pump speed r/min 1100++

Advance angle deg. 0 0 0

Remarks
Do not advance until starting N = 1100.

Timer adjustment_02

Pump speed r/min -

Advance angle deg. 2 1.5 2.5

Remarks
Measure the actual speed, stop

Test data Ex:

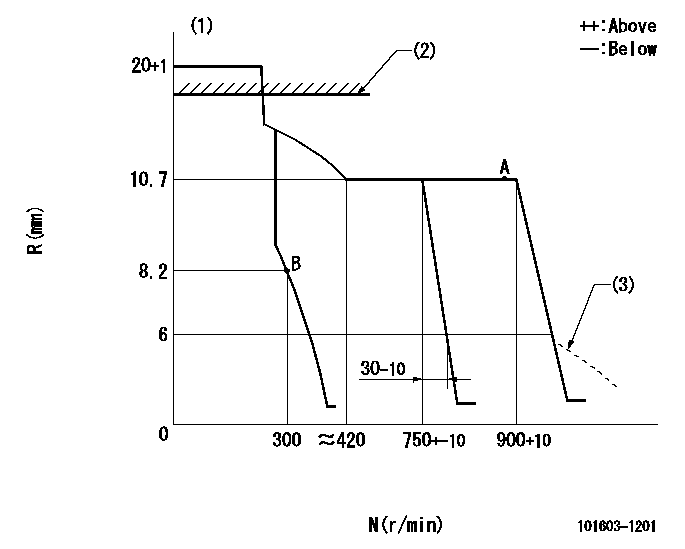

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)RACK CAP: R1 (3)Idle sub spring setting: L1.
----------
K=10 R1=(17)mm L1=6-0.5mm
----------

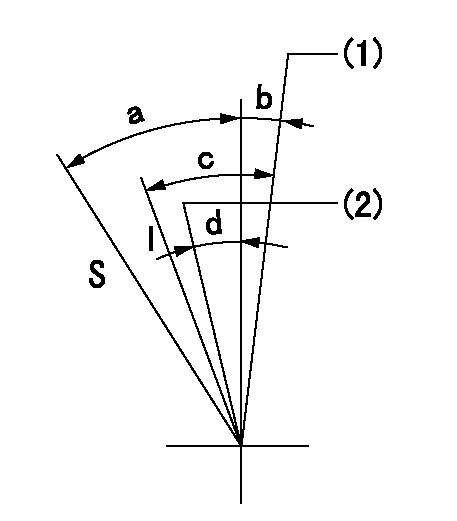

Speed control lever angle

I:Idle S:Stop (1)Set the pump speed at aa. ( At delivery ) (2)Pump speed = bb
----------
aa=900r/min bb=750r/min
----------
a=32deg+-3deg b=1deg+-5deg c=28deg+-5deg d=6deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=26deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of gear mark '2' at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=18deg
----------
a=(90deg)
