101603-0980 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016030980 1156016703

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101603-0980 1016030980

ISUZU 1156016703 1156016703

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101603-0980 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101603-0980 1016030980

ISUZU 1156016703 1156016703

Zexel num

Bosch num

Firm num

Name

101603-0980
101603-4360

1156016703 ISUZU

INJECTION-PUMP ASSEMBLY
6BG1 * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.6 3.55 3.65

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point -

Rack position 11.4

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 70.7 69.1 72.3

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point -

Rack position 9.6+-0.5

Pump speed r/min 260 260 260

Average injection quantity mm3/st. 9.4 8.1 10.7

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_03

Adjusting point A

Rack position R1(11.4)

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 70.7 69.7 71.7

Basic *

Fixing the lever *

Injection quantity adjustment_04

Adjusting point B

Rack position (R1-0.4)

Pump speed r/min 1500 1500 1500

Average injection quantity mm3/st. 76 74.4 77.6

Fixing the lever *

Injection quantity adjustment_05

Adjusting point I

Rack position -

Pump speed r/min 150 150 150

Average injection quantity mm3/st. 86 86 96

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min 550--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 500

Advance angle deg. 0.5

Timer adjustment_03

Pump speed r/min 1500

Advance angle deg. 4 3.5 4.5

Remarks
Finish

Test data Ex:

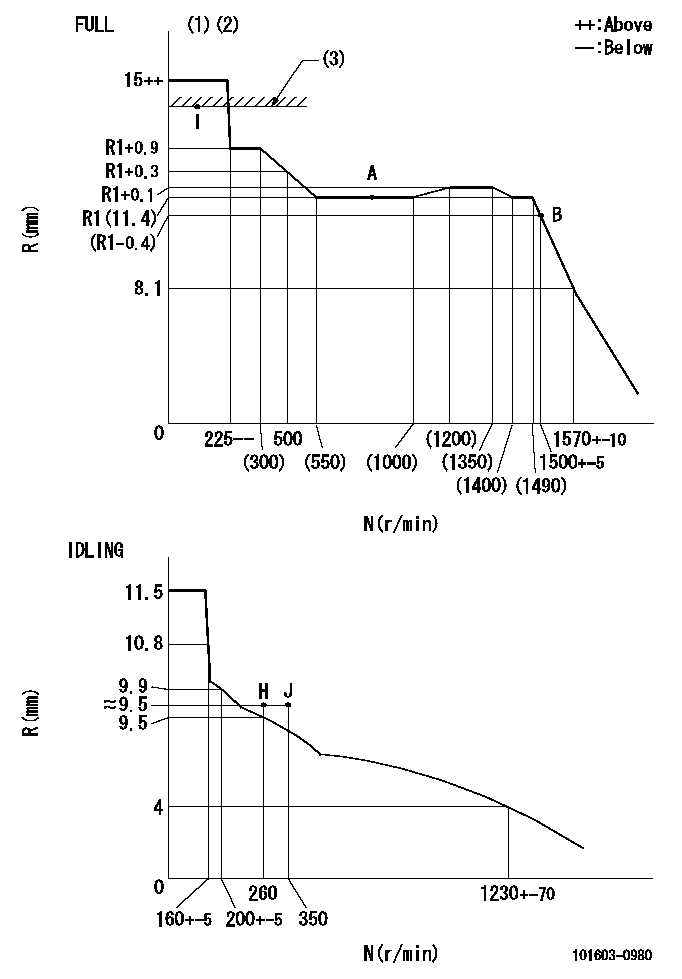

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)Torque control stroke: L1 (3)RACK LIMIT
----------
T1=A66 L1=(0.5)mm
----------

Speed control lever angle

F:Full speed I:Idle (1)Use the hole at R = aa (2)Stopper bolt set position 'H'
----------
aa=35mm
----------
a=42deg+-5deg b=35deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=25deg+-5deg b=40deg+-5deg

0000001501 TAMPER PROOF

Tamper proof adjustment (1)Set the full load screw at rack position Ra+0.4. (2)Set the full load position Ra using screw (A).
----------
Ra=R1(11.4)mm
----------

0000001601 VARIABLE TORQUE CONTROL

N:Pump speed (r/min) R:Rack position (mm) Adjusting shim A Guide screw B (c) Nut (d) Nut (e) nut Torque control spring adjustment method for model responding to speed droop [Advice] Confirm that adjusting shim (A) thickness t = 1.3~1.5 mm is assembled before beginning adjustment. (1)Temporary idle lever position setting 1. Refer to the RLD type governor service manual (Publication no. EE13E-11083). (2)Idling spring adjustment 1. Refer to the RLD type governor service manual (Publication no. EE13E-11083). (3)Governor spring setting adjustment 1. Temporarily fix so that the governor shaft's guide screw B protrudes L2 (18 mm) from the end of the governor. 2. Set the control lever where it contacts the idle stopper bolt. 3. Increase the speed to Nh2+100 r/min or more. 4. Adjust using the two nuts C and D so that L1 = 0.3+0.5 mm and fix temporarily. 5. Adjust the protrusion L2 of the guide screw (B) so that the rack position at Nh1 is Rh1 and at Nh2 is Rh2. Then fix using the nut (E). 6. Further increase the speed and readjust the two nuts (C) and (D) so that there is no change in L1 until Nf+50 r/min. Then fix temporarily. [Advice] When L1 becomes smaller while speed is increasing to Nf+50 r/min, decrease speed by Nh2+100 r/min. Adjust so that L1 is even smaller, then again increase speed to Nf+50 r/min and confirm that L1 does not change. (4)Full load position setting 1. Refer to the RLD type governor service manual (Publication no. EE13E-11083). (5)Torque control spring adjustment 1. Set the control lever so that it contacts the full speed stopper bolt. 2. At the specified speed Nf, adjust using the full speed stopper bolt so that governing begins, then fix temporarily. 3. Increase the speed and adjust using the two nuts (C) and (D) so that the rack position Rg can be obtained at the specified speed Ng. Fix temporarily. 4. Decrease the speed and confirm the governing point (the beginning of governing point) at the specified speed Nf. 5. Set the speed at Nf-50 r/min. 6. Measure the torque control stroke (L1) and adjust to the specified stroke (L1) using the shim (A). 7. After completing shim adjustment, repeat the above adjustment using the two nuts. 8. After confirming the specifications Nf and Ng, fix the two nuts (C) and (D). 9. In this condition, increase the speed and confirm that R = 0 can be obtained. (6)Full speed lever position setting 1. Set the control lever so that it contacts the full speed stopper bolt. 2. At the specified speed Nu, adjust using the full speed stopper bolt so that governing begins, then fix temporarily 3. Increase the speed and confirm that the specified rack position Ru can be obtained. 4. Adjust using the full speed stopper bolt so that governing begins at the specified speed Nf, then fix. 5. Confirm that the result is the same as that in '(5) Torque control spring adjustment.' 6. Confirm that the control lever operating angle is within the specifications. (7)Rack limit adjustment 1. Refer to the RLD type governor service manual (Publication no. EE13E-11083).
----------

----------

Timing setting

(1)Pump vertical direction (2)Position of timer's threaded hole at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=14deg
----------
a=(60deg)

Information:

The primary fuel filter should be cleaned, and the secondary (main) fuel filter element replaced, as follows: 1. When the fuel pressure gauge (if equipped) indicates low fuel pressure.2. When the engine has a noticable loss of power.3. Every 500 service hours of operation if the engine is not equipped with a fuel pressure gauge.
Fuel leaked or spilled onto hot surfaces or electrical components can cause a fire. Disconnect the battery (turn disconnect switch OFF) when changing fuel filters.
Do not fill fuel filters with fuel before installing them. Contaminated fuel will cause accelerated wear to fuel system parts.
Close the fuel supply valve at the tank before servicing filters. Open the valve after filter servicing is completed.Cleaning Primary Filter
Use all cleaning solutions with care.
1. Loosen the nut (1) on the filter cover and lower the filter case (3).2. Remove the element (2). Wash the cover and element in clean nonflammable solvent.3. Reinstall the element.4. Install the element and case onto the cover into the case.5. Tighten the bolt.Changing Secondary Filter
1. Unscrew filter element. Throw away the used element. 2. Make certain all of the used element seal is cleaned from the filter base. 3. Coat the seal of the new element with clean diesel fuel.4. Install the filter by hand. When the seal contacts the base, tighten 3/4 turn more.There are rotation marks 90° apart on the filter. Use these as a guide for proper tightening.5. Start the engine and check for leaks. If the engine will not start, prime the fuel system.
