Cross reference number

ZEXEL 101603-0773 1016030773

ISUZU 1156018573 1156018573

Zexel num

Bosch num

Firm num

Name

101603-0773

1156018573 ISUZU

INJECTION-PUMP ASSEMBLY
6BG1 * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-4920

Overflow valve opening pressure kPa 127 107 147

Overflow valve opening pressure kgf/cm2 1.3 1.1 1.5

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.6 3.55 3.65

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point -

Rack position 11.5

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 73.1 71.5 74.7

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point H

Rack position 9.5+-0.5

Pump speed r/min 275 275 275

Average injection quantity mm3/st. 8 6.7 9.3

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_03

Adjusting point A

Rack position R1(11.5)

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 73.1 72.1 74.1

Basic *

Fixing the lever *

Injection quantity adjustment_04

Adjusting point I

Rack position 14+-0.5

Pump speed r/min 150 150 150

Average injection quantity mm3/st. 90 90 98

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min 1350--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 1300

Advance angle deg. 0.5

Timer adjustment_03

Pump speed r/min 1400

Advance angle deg. 2 1.5 2.5

Timer adjustment_04

Pump speed r/min 1500

Advance angle deg. 4.5 4 5

Remarks
Finish

Test data Ex:

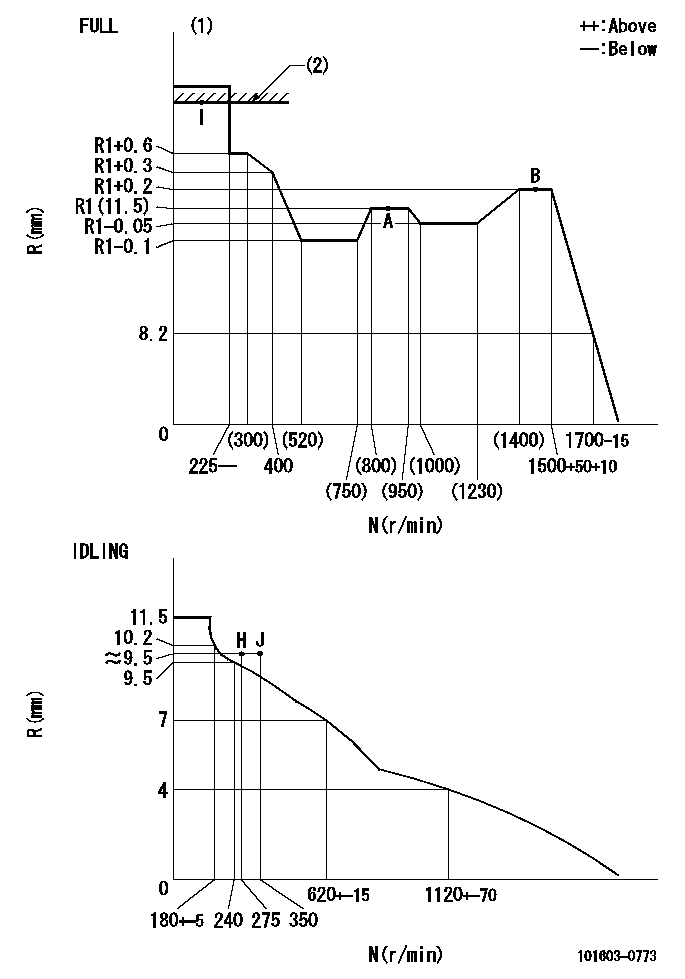

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)RACK LIMIT
----------
T1=D27
----------

Speed control lever angle

F:Full speed I:Idle (1)Use the hole at R = aa (2)Stopper bolt set position 'H'
----------
aa=45mm
----------
a=21.5deg+-5deg b=35deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=25deg+-5deg b=40deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of timer's threaded hole at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=13deg
----------
a=(60deg)
