101602-9751 ZEXEL 9 400 611 254 BOSCH INJECTION-PUMP ASSEMBLY 9400611254 1016029751 1671295003

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 611 254 9400611254

ZEXEL 101602-9751 1016029751

NISSAN-DIESEL 1671295003 1671295003

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101602-9751 zexel genuine, new aftermarket engine parts with delivery

Service parts 101602-9751 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101060-3690

3. GOVERNOR 105400-5201

4. SUPPLY PUMP 105220-7050

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE 105661-0601

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105101-5620

11. Nozzle and Holder 16600-95015

12. Open Pre:MPa(Kqf/cm2) 19.6{200}

13. NOZZLE-HOLDER 105031-4620

14. NOZZLE 105015-7360

15. NOZZLE SET

Include in #1:

101602-9751 as INJECTION-PUMP ASSEMBLY

Include in #2:

104742-1220 as _

Cross reference number

BOSCH 9 400 611 254 9400611254

ZEXEL 101602-9751 1016029751

NISSAN-DIESEL 1671295003 1671295003

Zexel num

Bosch num

Firm num

Name

101602-9751

9 400 611 254

1671295003 NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
NE6T05 K 14BE INJECTION PUMP ASSY PE6A PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-1520

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 2.75 2.7 2.8

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 10.4

Pump speed r/min 750 750 750

Average injection quantity mm3/st. 99 97.5 100.5

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point C

Rack position 5.7+-0.5

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 9 7.5 10.5

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Test data Ex:

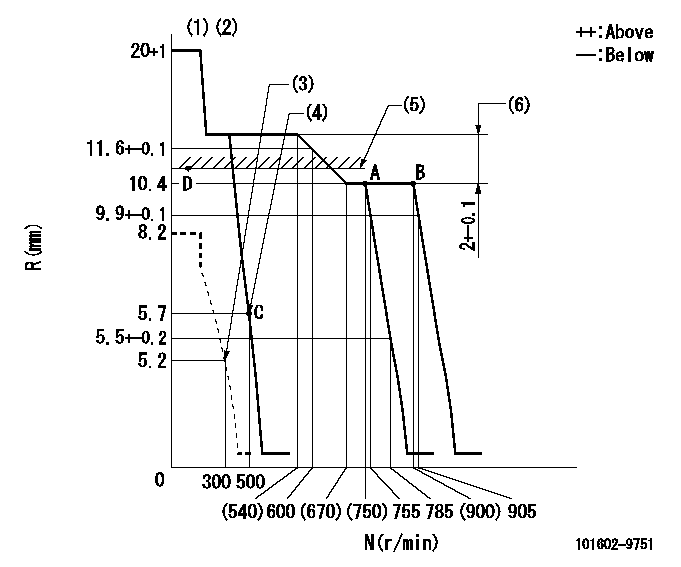

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)Set idle sub-spring (4)Main spring setting (5)RACK LIMIT: RAL (6)Rack difference between N = N1 and N = N2
----------
K=10 RAL=11+-0.1mm N1=750r/min N2=450r/min
----------

Speed control lever angle

F:Full speed I:Idle (1)Set the pump speed at aa (2)Stopper bolt setting (3)Stopper bolt setting (4)Set the pump speed at bb.
----------
aa=905r/min bb=755r/min
----------
a=(2deg)+-5deg b=(20deg)+-5deg c=(7deg)+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=26.5deg+-5deg b=53deg+-5deg

0000001501 GOV FULL LOAD ADJUSTMENT

Title1:Full load stopper adjustment Title2:Governor set speed LABEL1:Distinguishing LABEL2:Pump speed (r/min) LABEL3:Ave. injection quantity (mm3/st) LABEL4:Max. var. bet. cyl. LABEL5:Remarks LABEL6:Distinguishing LABEL7:Governor set speed (r/min) LABEL8:Remarks (1)Adjustment conditions are the same as those for measuring injection quantity. (2)-
----------

----------
a1=A a2=- r1=750r/min r2=- Q1=99+-1.5mm3/st Q2=- c1=+-2.5% c2=- a3=18 a4=15 r3=900r/min r4=750r/min

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=18deg
----------
a=(30deg)
