101602-9721 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016029721 1679095009

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101602-9721 1016029721

NISSAN-DIESEL 1679095009 1679095009

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101602-9721 zexel genuine, new aftermarket engine parts with delivery

Service parts 101602-9721 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101060-3690

3. GOVERNOR 105400-4851

4. SUPPLY PUMP 105220-7050

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE 105661-0601

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105100-6970

11. Nozzle and Holder 1660095011

12. Open Pre:MPa(Kqf/cm2) 19.6(200)

13. NOZZLE-HOLDER 105031-4620

14. NOZZLE

105015-6600

15. NOZZLE SET

Include in #1:

101401-0980 as _

101602-9721 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 101602-9721 1016029721

NISSAN-DIESEL 1679095009 1679095009

Zexel num

Bosch num

Firm num

Name

101602-9721

1679095009 NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
NE6T * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 2.75 2.7 2.8

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point B

Rack position 9.8

Pump speed r/min 750 750 750

Average injection quantity mm3/st. 86.8 85.3 88.3

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point C

Rack position 6.8+-0.5

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 10.6 9.1 12.1

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Injection quantity adjustment_03

Adjusting point D

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 68 68 88

Fixing the lever *

Rack limit *

Test data Ex:

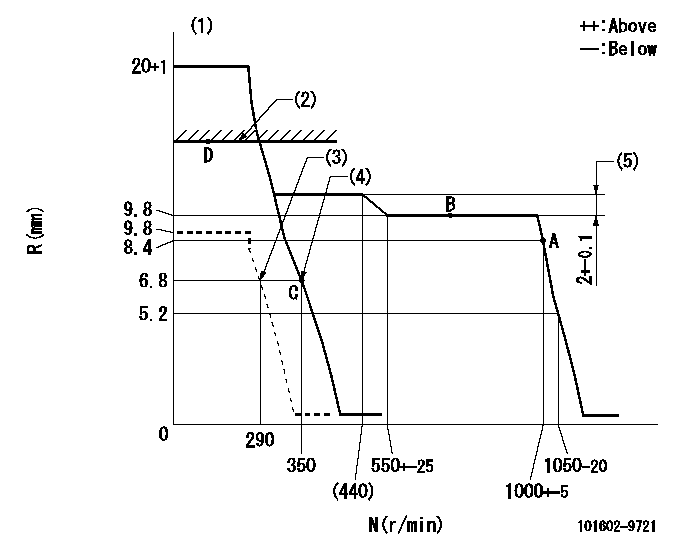

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)RACK LIMIT (3)Set idle sub-spring (4)Main spring setting (5)Rack difference between N = N1 and N = N2
----------
K=12 N1=750r/min N2=350r/min
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=12deg+-5deg b=26deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=26.5deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=18deg
----------
a=(30deg)
