101602-8750 ZEXEL 9 400 614 959 BOSCH INJECTION-PUMP ASSEMBLY 9400614959 1016028750

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 614 959 9400614959

ZEXEL 101602-8750 1016028750

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101602-8750 zexel genuine, new aftermarket engine parts with delivery

Include in #2:

104741-6410 as _

Cross reference number

BOSCH 9 400 614 959 9400614959

ZEXEL 101602-8750 1016028750

Zexel num

Bosch num

Firm num

Name

101602-8750

9 400 614 959

INJECTION-PUMP ASSEMBLY
6BG1-T *

101602-8750

9 400 614 959

1156033260 ISUZU

INJECTION-PUMP ASSEMBLY
6BG1-T *

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-4920

Overflow valve opening pressure kPa 127 107 147

Overflow valve opening pressure kgf/cm2 1.3 1.1 1.5

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.6 3.55 3.65

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 10.5

Pump speed r/min 1075 1075 1075

Average injection quantity mm3/st. 93 91.5 94.5

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point C

Rack position 7.4+-0.5

Pump speed r/min 450 450 450

Average injection quantity mm3/st. 9.5 8.2 10.8

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Injection quantity adjustment_03

Adjusting point D

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 95 90 100

Fixing the lever *

Rack limit *

Test data Ex:

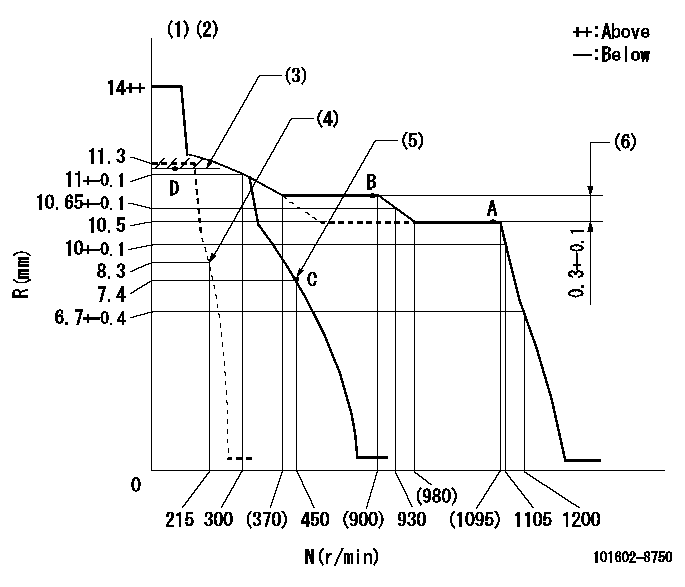

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Set idle sub-spring (5)Main spring setting (6)Rack difference between N = N1 and N = N2
----------
K=10 N1=1075r/min N2=800r/min
----------

Speed control lever angle

F:Full speed I:Idle D:Dead point S:Stop
----------

----------
a=(19deg)+-5deg b=(18deg)+-5deg c=20deg+-3deg d=(35deg)+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Normal
----------

----------
a=13deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of coupling's threaded hole at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=11deg
----------
a=(20deg)
