101602-8730 ZEXEL 9 400 614 958 BOSCH INJECTION-PUMP ASSEMBLY 9400614958 1016028730 1156033200

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 614 958 9400614958

ZEXEL 101602-8730 1016028730

ISUZU 1156033200 1156033200

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101602-8730 zexel genuine, new aftermarket engine parts with delivery

Include in #2:

104741-6390 as _

Cross reference number

BOSCH 9 400 614 958 9400614958

ZEXEL 101602-8730 1016028730

ISUZU 1156033200 1156033200

Zexel num

Bosch num

Firm num

Name

101602-8730

9 400 614 958

1156033200 ISUZU

INJECTION-PUMP ASSEMBLY
6BG1 K 14BE INJECTION PUMP ASSY PE6A PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-4920

Overflow valve opening pressure kPa 127 93 161

Overflow valve opening pressure kgf/cm2 1.3 0.95 1.65

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.6 3.55 3.65

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 8.8

Pump speed r/min 800 800 800

Average injection quantity mm3/st. 59.5 58 61

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point -

Rack position 7+-0.5

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 8 6.7 9.3

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_03

Adjusting point D

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 105 100 110

Fixing the lever *

Rack limit *

Test data Ex:

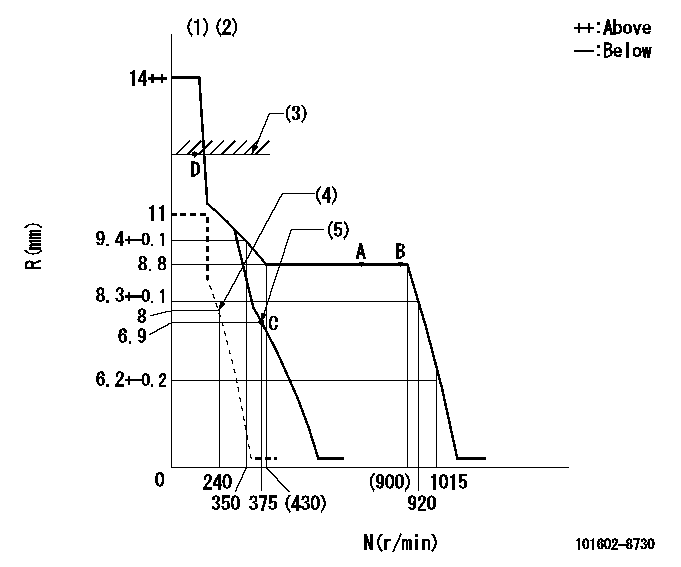

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Set idle sub-spring (5)Main spring setting
----------
K=8
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=1deg+-5deg b=13deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Normal
----------

----------
a=53deg+-5deg b=45deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of flywheel's threaded hole at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=14deg
----------
a=(10deg)
