101602-8700 ZEXEL 9 400 614 955 BOSCH INJECTION-PUMP ASSEMBLY 9400614955 1016028700

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 614 955 9400614955

ZEXEL 101602-8700 1016028700

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101602-8700 zexel genuine, new aftermarket engine parts with delivery

Include in #2:

104741-6370 as _

Cross reference number

BOSCH 9 400 614 955 9400614955

ZEXEL 101602-8700 1016028700

Zexel num

Bosch num

Firm num

Name

101602-8700

9 400 614 955

INJECTION-PUMP ASSEMBLY
6BG1-T *

101602-8700

9 400 614 955

1156033160 ISUZU

INJECTION-PUMP ASSEMBLY
6BG1-T *

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-4920

Overflow valve opening pressure kPa 127 107 147

Overflow valve opening pressure kgf/cm2 1.3 1.1 1.5

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.6 3.55 3.65

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 9.2

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 82.5 81 84

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the rack *

Injection quantity adjustment_02

Adjusting point -

Rack position 7.5+-0.5

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 12 10.7 13.3

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_03

Adjusting point D

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 80 80 90

Fixing the lever *

Rack limit *

Test data Ex:

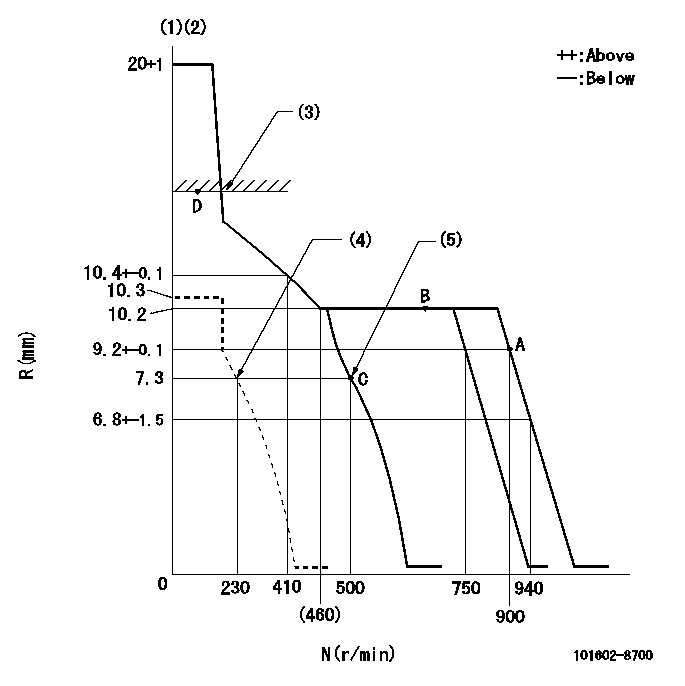

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Notch fixed: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Set idle sub-spring (5)Main spring setting
----------
K=7
----------

Speed control lever angle

F:Full speed I:Idle (1)When pump speed set at aa (2)Stopper bolt setting (3)Set speed at bb (setting at delivery).
----------
aa=750r/min bb=900r/min
----------
a=(5deg)+-5deg b=(0deg)+-5deg c=(16deg)+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Normal
----------

----------
a=4.5deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of gear mark 'CC' at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=12deg
----------
a=(100deg)
