Information injection-pump assembly
BOSCH
9 400 614 941
9400614941
ZEXEL
101602-8510
1016028510
ISUZU
1156032610
1156032610

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

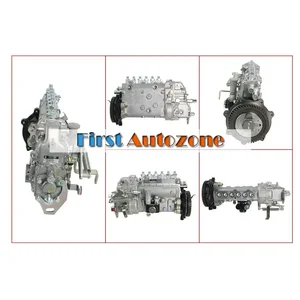

Car fuel pump assembly, Fuel Injection Pump 115603-2610 101602-8510 Compatible For ISUZU 6BG1 Engine
ZTUVUNVA The design of the oil outlet is exquisite and reasonable, which avoids carbon deposition at the oil outlet and effectively prolongs the service life. || Reduce fuel consumption, improve jitter and accelerate smoothly. || The oil meter is accurate, which can solve the problems of abnormal oil consumption, misfire and no power. || Solve problems such as abnormal fuel meter data. || Sufficient oil return flow ensures stable pressure and sufficient cooling of the fuel system.
ZTUVUNVA The design of the oil outlet is exquisite and reasonable, which avoids carbon deposition at the oil outlet and effectively prolongs the service life. || Reduce fuel consumption, improve jitter and accelerate smoothly. || The oil meter is accurate, which can solve the problems of abnormal oil consumption, misfire and no power. || Solve problems such as abnormal fuel meter data. || Sufficient oil return flow ensures stable pressure and sufficient cooling of the fuel system.
Car fuel pump assembly, Fuel Injection Pump 115603-2610 101602-8510 Compatible For ISUZU 6BG1 Engine
ZTUVUNVA The design of the oil outlet is exquisite and reasonable, which avoids carbon deposition at the oil outlet and effectively prolongs the service life. || Reduce fuel consumption, improve jitter and accelerate smoothly. || The oil meter is accurate, which can solve the problems of abnormal oil consumption, misfire and no power. || Solve problems such as abnormal fuel meter data. || Sufficient oil return flow ensures stable pressure and sufficient cooling of the fuel system.
ZTUVUNVA The design of the oil outlet is exquisite and reasonable, which avoids carbon deposition at the oil outlet and effectively prolongs the service life. || Reduce fuel consumption, improve jitter and accelerate smoothly. || The oil meter is accurate, which can solve the problems of abnormal oil consumption, misfire and no power. || Solve problems such as abnormal fuel meter data. || Sufficient oil return flow ensures stable pressure and sufficient cooling of the fuel system.
Fuel Injection Pump 115603-2610 101602-8510 Compatible For ISUZU 6BG1 Engine
JUCAQYZT 【 Upgraded Material 】: Made of high-performance alloy, suitable for various extreme weather conditions, resistant to high temperatures and cold winters. A good fuel injection pump is crucial for engine power, fuel efficiency, and fuel economy. || 【 Non destructive installation 】: The installation is very simple, without complex installation processes, easy to get started, and does not damage your car. || 【 Improving Fuel Economy 】: High precision manufacturing processes ensure the accuracy of fuel metering and injection, and the internal fuel flow channels have been optimized to reduce pressure loss, atomize fuel, and improve fuel efficiency and economy. || 【 More Stable Operation 】: The excellent design minimizes noise and vibration during operation, providing you with a quieter and more comfortable driving experience. || Fuel Injection Pump 115603-2610 101602-8510 Compatible For ISUZU 6BG1 Engine
JUCAQYZT 【 Upgraded Material 】: Made of high-performance alloy, suitable for various extreme weather conditions, resistant to high temperatures and cold winters. A good fuel injection pump is crucial for engine power, fuel efficiency, and fuel economy. || 【 Non destructive installation 】: The installation is very simple, without complex installation processes, easy to get started, and does not damage your car. || 【 Improving Fuel Economy 】: High precision manufacturing processes ensure the accuracy of fuel metering and injection, and the internal fuel flow channels have been optimized to reduce pressure loss, atomize fuel, and improve fuel efficiency and economy. || 【 More Stable Operation 】: The excellent design minimizes noise and vibration during operation, providing you with a quieter and more comfortable driving experience. || Fuel Injection Pump 115603-2610 101602-8510 Compatible For ISUZU 6BG1 Engine
You can express buy:
Service parts 101602-8510 INJECTION-PUMP ASSEMBLY:
1.
_
5.
AUTOM. ADVANCE MECHANIS
6.
COUPLING PLATE
8.
_
9.
_
11.
Nozzle and Holder
1-15300-291-2
12.
Open Pre:MPa(Kqf/cm2)
18.1{185}
15.
NOZZLE SET
Include in #1:
101602-8510
as INJECTION-PUMP ASSEMBLY
Include in #2:
104741-6220
as _
Cross reference number
BOSCH
9 400 614 941
9400614941
ZEXEL
101602-8510
1016028510
ISUZU
1156032610
1156032610
Zexel num
Bosch num
Firm num
Name
101602-8510
9 400 614 941
1156032610 ISUZU
INJECTION-PUMP ASSEMBLY
6BG1 K 14BE INJECTION PUMP ASSY PE6A PE
6BG1 K 14BE INJECTION PUMP ASSY PE6A PE
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113 or {SAEJ967d}
1404 Test oil ISO4113 or {SAEJ967d}
Test oil temperature
degC
40
40
45
Nozzle and nozzle holder
105780-8140
Bosch type code
EF8511/9A
Nozzle
105780-0000
Bosch type code
DN12SD12T
Nozzle holder
105780-2080
Bosch type code
EF8511/9
Opening pressure
MPa
17.2
Opening pressure
kgf/cm2
175
Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600
Outer diameter - inner diameter - length (mm) mm 6-2-600
Overflow valve
131424-4920
Overflow valve opening pressure
kPa
127
107
147
Overflow valve opening pressure
kgf/cm2
1.3
1.1
1.5
Tester oil delivery pressure
kPa
157
157
157
Tester oil delivery pressure
kgf/cm2
1.6
1.6
1.6
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right R
Right R
Injection order
1-5-3-6-
2-4
Pre-stroke
mm
3.6
3.55
3.65
Beginning of injection position
Drive side NO.1
Drive side NO.1
Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5
Cal 1-5 deg. 60 59.5 60.5
Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5
Cal 1-3 deg. 120 119.5 120.5
Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5
Cal 1-6 deg. 180 179.5 180.5
Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5
Cyl.1-2 deg. 240 239.5 240.5
Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5
Cal 1-4 deg. 300 299.5 300.5
Injection quantity adjustment
Adjusting point
A
Rack position
9.1
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
71
69.5
72.5
Max. variation between cylinders
%
0
-2
2
Basic
*
Fixing the lever
*
Injection quantity adjustment_02
Adjusting point
-
Rack position
7.2+-0.5
Pump speed
r/min
350
350
350
Average injection quantity
mm3/st.
8
6.7
9.3
Max. variation between cylinders
%
0
-14
14
Fixing the rack
*
Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.
Adjust only variation between cylinders; adjust governor according to governor specifications.
Injection quantity adjustment_03
Adjusting point
D
Rack position
-
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
105
100
110
Fixing the lever
*
Rack limit
*
Test data Ex:
Governor adjustment

N:Pump speed
R:Rack position (mm)
(1)Target notch: K
(2)Tolerance for racks not indicated: +-0.05mm.
(3)RACK LIMIT
(4)Set idle sub-spring
(5)Main spring setting
----------
K=9
----------
----------
K=9
----------
Speed control lever angle

F:Full speed
I:Idle
(1)Stopper bolt setting
----------
----------
a=5deg+-5deg b=17deg+-5deg
----------
----------
a=5deg+-5deg b=17deg+-5deg
Stop lever angle

N:Pump normal
S:Stop the pump.
----------
----------
a=4.5deg+-5deg b=53deg+-5deg
----------
----------
a=4.5deg+-5deg b=53deg+-5deg
Timing setting

(1)Pump vertical direction
(2)Position of gear mark 'CC' at No 1 cylinder's beginning of injection
(3)B.T.D.C.: aa
(4)-
----------
aa=15deg
----------
a=(100deg)
----------
aa=15deg
----------
a=(100deg)
