101602-7670 ZEXEL F 019 Z10 261 BOSCH INJECTION-PUMP ASSEMBLY f019z10261 1016027670 1156025410




Information injection-pump assembly

BOSCH F 019 Z10 261 f019z10261
ZEXEL 101602-7670 1016027670
ISUZU 1156025410 1156025410
101602-7670 INJECTION-PUMP ASSEMBLY
Rating:
79
Buy INJECTION-PUMP ASSEMBLY 101602-7670 zexel genuine, new aftermarket engine parts with delivery

Service parts 101602-7670 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 101061-8640
3. GOVERNOR 105411-1093
4. SUPPLY PUMP 105220-5400
5. AUTOM. ADVANCE MECHANIS
6. COUPLING PLATE
7. COUPLING PLATE 156638-6320
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105100-7281
11. Nozzle and Holder
12. Open Pre:MPa(Kqf/cm2) 15.7{160}/22.1{225}
13. NOZZLE-HOLDER 105030-3231
14. NOZZLE 105015-6950
15. NOZZLE SET

Include in #1:

101602-7670 as INJECTION-PUMP ASSEMBLY

Include in #2:

Cross reference number

BOSCH F 019 Z10 261 f019z10261
ZEXEL 101602-7670 1016027670
ISUZU 1156025410 1156025410


Zexel num
Bosch num
Firm num
Name
101602-7670
F 019 Z10 261
1156025410  ISUZU
INJECTION-PUMP ASSEMBLY
6BG1-MTC * K

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Overflow valve   132424-0620
Overflow valve opening pressure kPa   157 123 191
Overflow valve opening pressure kgf/cm2   1.6 1.25 1.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-5-3-6- 2-4
Pre-stroke mm   4.4 4.35 4.45
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-5
deg.   60 59.5 60.5
Difference between angles 2
Cal 1-3
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cyl.1-2
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-4
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   A
Rack position   10.9
Pump speed r/min   1350 1350 1350
Average injection quantity mm3/st.   125.4 123.8 127
Max. variation between cylinders %   0 -2.5 2.5
Basic   *
Fixing the lever   *
Boost pressure kPa   100 100
Boost pressure mmHg   750 750
Injection quantity adjustment_02
Adjusting point   -
Rack position   6.1+-0.5
Pump speed r/min   250 250 250
Average injection quantity mm3/st.   9.4 8.1 10.7
Max. variation between cylinders %   0 -14 14
Fixing the rack   *
Boost pressure kPa   0 0 0
Boost pressure mmHg   0 0 0
Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Boost compensator adjustment
Pump speed r/min   700 700 700
Rack position   9.2
Boost pressure kPa   12 10.7 13.3
Boost pressure mmHg   90 80 100
Boost compensator adjustment_02
Pump speed r/min   700 700 700
Rack position   10.9
Boost pressure kPa   80 80 80
Boost pressure mmHg   600 600 600

Test data Ex:

Governor adjustment

Test data 101602-7670

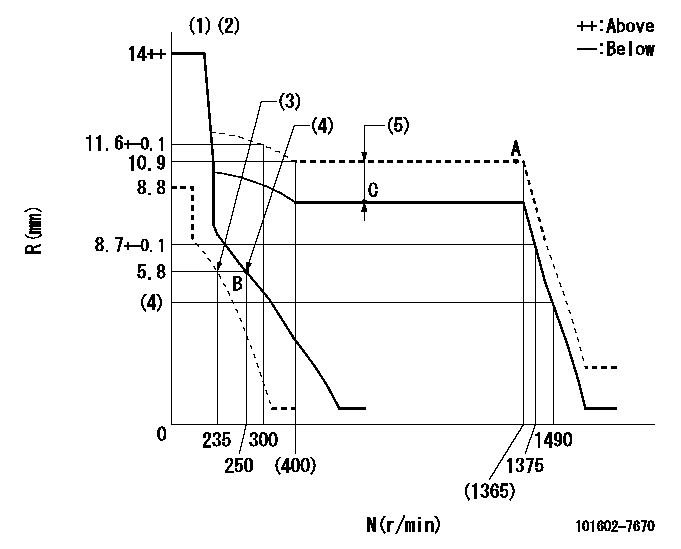

N:Pump speed R:Rack position (mm) (1)Notch fixed: K (2)Tolerance for racks not indicated: +-0.05mm. (3)Set idle sub-spring (4)Main spring setting (5)Boost compensator stroke: BCL
----------
K=10 BCL=1.7+-0.1mm
----------

Speed control lever angle

Test data 101602-7670
F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=11deg+-5deg b=29deg+-5deg

Stop lever angle

Test data 101602-7670
N:Pump normal S:Stop the pump. (1)Pump speed aa and rack position bb (to be sealed at delivery)
----------
aa=0r/min bb=1-0.2mm
----------
a=32deg+-5deg b=(55deg)

Timing setting

Test data 101602-7670
(1)Pump vertical direction (2)Position of gear mark 'CC' at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=15deg
----------
a=(100deg)
