101602-7010 ZEXEL 9 400 614 869 BOSCH INJECTION-PUMP ASSEMBLY 9400614869 1016027010 1156023160

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 614 869 9400614869

ZEXEL 101602-7010 1016027010

ISUZU 1156023160 1156023160

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101602-7010 zexel genuine, new aftermarket engine parts with delivery

Include in #1:

101401-0411 as _

Cross reference number

BOSCH 9 400 614 869 9400614869

ZEXEL 101602-7010 1016027010

ISUZU 1156023160 1156023160

Zexel num

Bosch num

Firm num

Name

101602-7010

9 400 614 869

1156023160 ISUZU

INJECTION-PUMP ASSEMBLY
6BD1 * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.6 3.55 3.65

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point -

Rack position 11.1

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 66.8 65.2 68.4

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point H

Rack position 9.5+-0.5

Pump speed r/min 325 325 325

Average injection quantity mm3/st. 9.3 8 10.6

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_03

Adjusting point A

Rack position R1(11.1)

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 66.8 65.8 67.8

Basic *

Fixing the lever *

Injection quantity adjustment_04

Adjusting point B

Rack position R1-0.05

Pump speed r/min 1300 1300 1300

Average injection quantity mm3/st. 71 69.4 72.6

Fixing the lever *

Injection quantity adjustment_05

Adjusting point C

Rack position R1-0.25

Pump speed r/min 650 650 650

Average injection quantity mm3/st. 48 46.4 49.6

Fixing the lever *

Test data Ex:

Governor adjustment

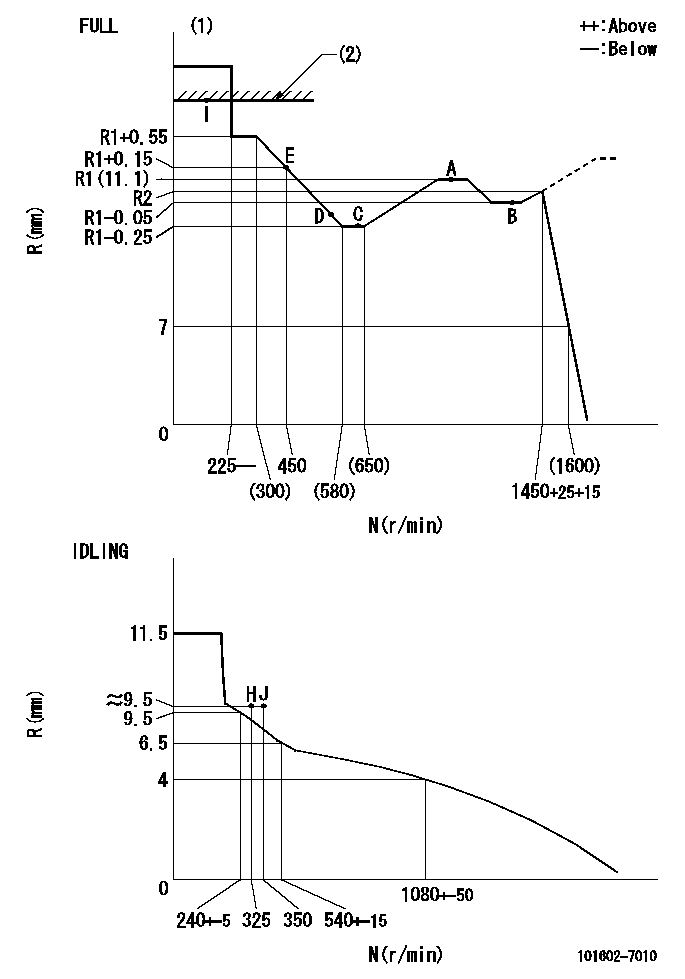

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)RACK LIMIT: RAL
----------
T1=01 RAL=13.6+0.2mm
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt set position 'H'
----------

----------
a=40deg+-5deg b=(34deg)+-3deg

Timing setting

(1)Pump vertical direction (2)Position of flywheel's threaded hole at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=20deg
----------
a=(10deg)
