101602-4190 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016024190 1156016590

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101602-4190 1016024190

ISUZU 1156016590 1156016590

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101602-4190 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101602-4190 1016024190

ISUZU 1156016590 1156016590

Zexel num

Bosch num

Firm num

Name

101602-4190
101602-4191

1156016590 ISUZU

INJECTION-PUMP ASSEMBLY
6BD1 *

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.6 3.55 3.65

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 9.8

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 64.7 63.7 65.7

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 10+-0.5

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 59.8 57.8 61.8

Max. variation between cylinders % 0 -4 4

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 7.5+-0.5

Pump speed r/min 325 325 325

Average injection quantity mm3/st. 9.4 8.1 10.7

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Test data Ex:

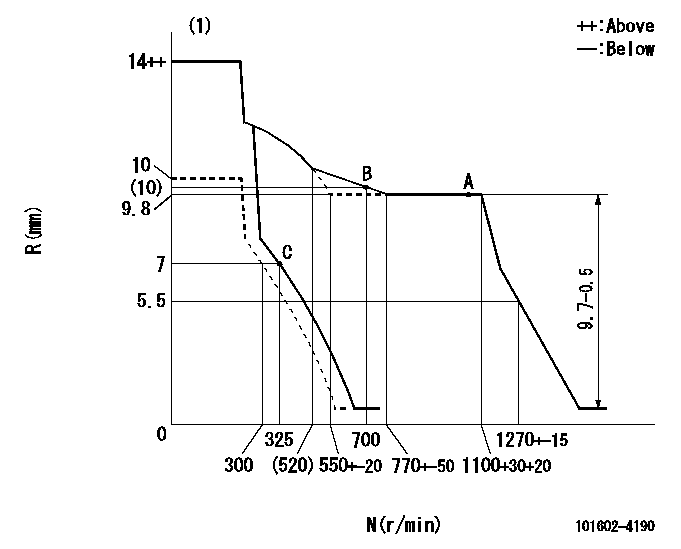

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K
----------
K=14
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=84deg+-5deg b=22deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=12deg+-5deg b=46deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of gear mark 'CC' at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=22deg
----------
a=(90deg)
