101602-4160 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016024160 1156015601

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101602-4160 1016024160

ISUZU 1156015601 1156015601

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101602-4160 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101602-4160 1016024160

ISUZU 1156015601 1156015601

Zexel num

Bosch num

Firm num

Name

101602-4160
101602-4161

1156015601 ISUZU

INJECTION-PUMP ASSEMBLY
6BD1T *

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.4 3.35 3.45

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 8.5

Pump speed r/min 800 800 800

Average injection quantity mm3/st. 74.3 72.3 76.3

Max. variation between cylinders % 0 -4 4

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 8.2

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 74 72.5 75.5

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 5.2+-0.5

Pump speed r/min 325 325 325

Average injection quantity mm3/st. 12.1 10.8 13.4

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Test data Ex:

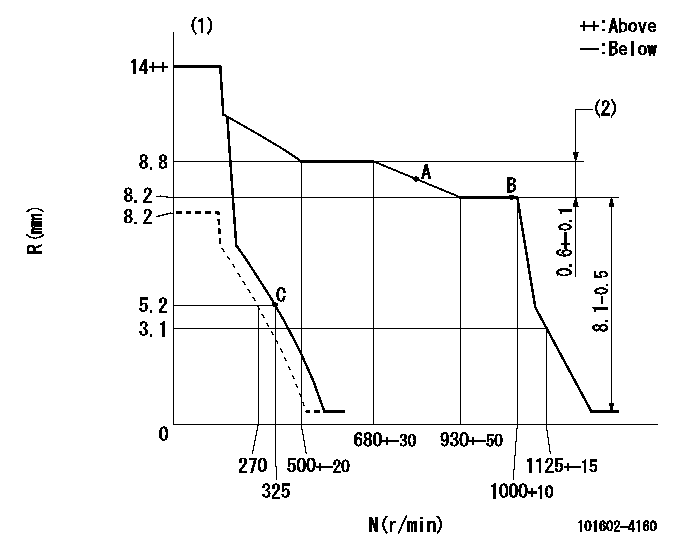

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Rack difference between N = N1 and N = N2
----------
K=8 N1=1000r/min N2=600r/min
----------

Speed control lever angle

F:Full speed I:Idle D:Dead point (1)Stopper bolt setting
----------

----------
a=0deg+-5deg b=6deg c=19deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=12deg+-5deg b=46deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of flywheel's threaded hole at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(10deg)
