101602-3390 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016023390 6137711710

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101602-3390 1016023390

KOMATSU 6137711710 6137711710

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101602-3390 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101602-3390 1016023390

KOMATSU 6137711710 6137711710

Zexel num

Bosch num

Firm num

Name

101602-3390

6137711710 KOMATSU

INJECTION-PUMP ASSEMBLY
S6D105 * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.3 3.25 3.35

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 10

Pump speed r/min 1250 1250 1250

Average injection quantity mm3/st. 71 70 72

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 7.5+-0.5

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 11.2 9.4 13

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Test data Ex:

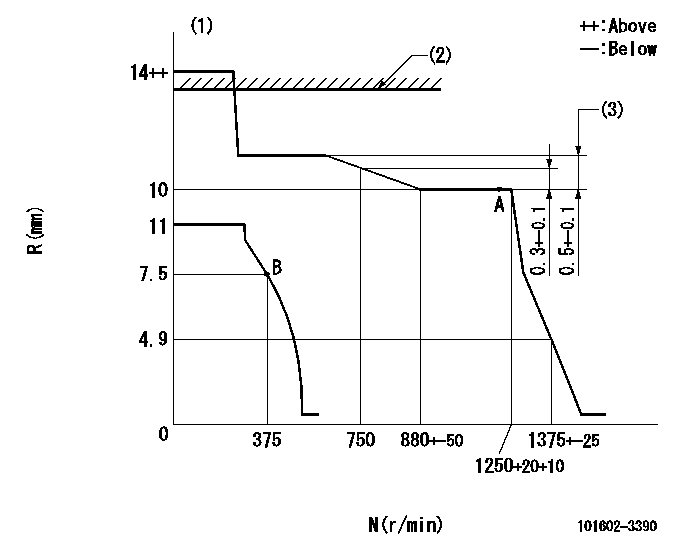

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)RACK LIMIT: RAL (3)Rack difference between N = N1 and N = N2
----------
K=10 RAL=14+0.5mm N1=1250r/min N2=500r/min
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=15deg+-5deg b=35deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=27deg+-5deg b=53deg+-5deg
