101602-3310 ZEXEL 9 400 614 818 BOSCH INJECTION-PUMP ASSEMBLY 9400614818 1016023310 6137711500

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 614 818 9400614818

ZEXEL 101602-3310 1016023310

KOMATSU 6137711500 6137711500

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101602-3310 zexel genuine, new aftermarket engine parts with delivery

Service parts 101602-3310 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101060-0800

3. GOVERNOR 105410-5550

4. SUPPLY PUMP 105210-1841

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE 105661-0330

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105100-5000

11. Nozzle and Holder 6137-11-3200

12. Open Pre:MPa(Kqf/cm2) 22.1{225}

13. NOZZLE-HOLDER 105031-4360

14. NOZZLE 105015-4610

15. NOZZLE SET

Include in #1:

101401-7290 as _

101602-3310 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 614 818 9400614818

ZEXEL 101602-3310 1016023310

KOMATSU 6137711500 6137711500

Zexel num

Bosch num

Firm num

Name

101602-3310

9 400 614 818

6137711500 KOMATSU

INJECTION-PUMP ASSEMBLY
S6D105 K 14BE INJECTION PUMP ASSY PE6A PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.3 3.25 3.35

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 9.5

Pump speed r/min 1200 1200 1200

Average injection quantity mm3/st. 64 63 65

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 7.5+-0.5

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 9 7.2 10.8

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Test data Ex:

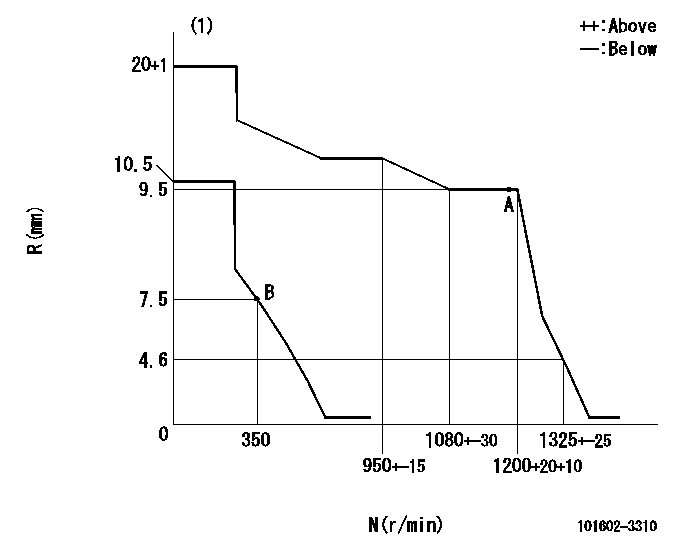

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K
----------
K=8
----------

Speed control lever angle

F:Full speed I:Idle S:Stop
----------

----------
a=11deg+-5deg b=22deg+-5deg c=32deg+-3deg

Information:

Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are adaptable to the products within the listed serial numbers, and are effective with all products after the listed serial numbers.The table below contains the new fuel injector part numbers.Note: Use a 563-8152 Engine Oil Filter (High Efficiency) along with the new fuel injectors.
Table 1
Required Parts
Item Qty New Part Number Part Name
1 6 387-9426 Fuel Injector Gp
2 6 387-9428 Fuel Injector Gp
3 6 387-9429 Fuel Injector Gp
4 6 387-9430 Fuel Injector Gp
5 6 387-9432 Fuel Injector Gp
6 6 387-9434 Fuel Injector Gp
7 6 387-9436 Fuel Injector Gp
8 6 387-9437 Fuel Injector Gp
9 6 387-9438 Fuel Injector Gp
10 6 387-9439 Fuel Injector Gp
11 6 387-9440 Fuel Injector Gp
12 6 387-9441 Fuel Injector Gp
13 6 557-7627 Fuel Injector Gp
14 6 557-7633 Fuel Injector Gp
15 1 563-8152 Engine Oil Filter
16 6 573-4231 Fuel Injector Gp
17 6 573-4235 Fuel Injector Gp The effective serial number for the improved fuel injectors is 3B142289137E.
