101602-2682 ZEXEL 9 400 614 789 BOSCH INJECTION-PUMP ASSEMBLY 9400614789 1016022682 220203971a

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 614 789 9400614789

ZEXEL 101602-2682 1016022682

HINO 220203971A 220203971a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101602-2682 zexel genuine, new aftermarket engine parts with delivery

Service parts 101602-2682 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101061-9690

3. GOVERNOR 105401-0680

4. SUPPLY PUMP 105220-5300

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE

7. COUPLING PLATE 156636-4821

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105110-4320

11. Nozzle and Holder 23600-1710

12. Open Pre:MPa(Kqf/cm2) 21.6{220}

13. NOZZLE-HOLDER 105041-5041

14. NOZZLE 105015-6240

15. NOZZLE SET

Include in #1:

101602-2682 as INJECTION-PUMP ASSEMBLY

101603-8413 as _

Cross reference number

BOSCH 9 400 614 789 9400614789

ZEXEL 101602-2682 1016022682

HINO 220203971A 220203971a

Zexel num

Bosch num

Firm num

Name

101602-2682

9 400 614 789

220203971A HINO

INJECTION-PUMP ASSEMBLY
W06D-T K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-5720

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 3.4 3.35 3.45

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 10.5

Pump speed r/min 1400 1400 1400

Average injection quantity mm3/st. 89 87 91

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the lever *

Boost pressure kPa 26.7 26.7

Boost pressure mmHg 200 200

Injection quantity adjustment_02

Adjusting point -

Rack position 7.6+-0.5

Pump speed r/min 365 365 365

Average injection quantity mm3/st. 9 7.5 10.5

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_03

Adjusting point E

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 90 90 100

Fixing the lever *

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Rack limit *

Boost compensator adjustment

Pump speed r/min 600 600 600

Rack position R1-1.2

Boost pressure kPa 2 2 4.7

Boost pressure mmHg 15 15 35

Boost compensator adjustment_02

Pump speed r/min 600 600 600

Rack position R1(10.5)

Boost pressure kPa 13.3 13.3 13.3

Boost pressure mmHg 100 100 100

Test data Ex:

Governor adjustment

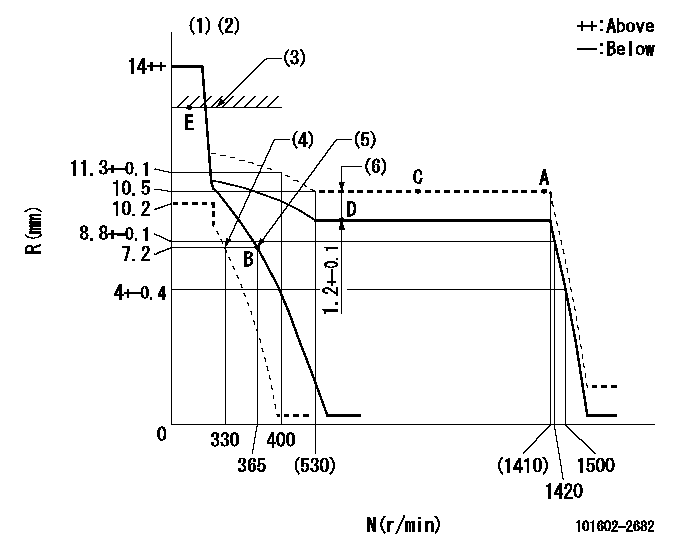

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Set idle sub-spring (5)Main spring setting (6)Boost compensator stroke
----------
K=6
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=4deg+-5deg b=29deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Pump speed aa and rack position bb (to be sealed at delivery)
----------
aa=0r/min bb=1-0.2mm
----------
a=21deg+-5deg b=(55deg)

Timing setting

(1)Pump vertical direction (2)Position of gear's standard threaded hole at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(70deg)

Information:
