Information injection-pump assembly
BOSCH
9 400 614 713
9400614713
ZEXEL
101602-1070
1016021070
MITSUBISHI
ME059641
me059641
Rating:
Include in #1:
101609-3542
as _
Cross reference number
BOSCH
9 400 614 713
9400614713
ZEXEL
101602-1070
1016021070
MITSUBISHI
ME059641
me059641
Zexel num
Bosch num
Firm num
Name
101602-1070
9 400 614 713
ME059641 MITSUBISHI
INJECTION-PUMP ASSEMBLY
6D22P * K
6D22P * K
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113 or {SAEJ967d}
1404 Test oil ISO4113 or {SAEJ967d}
Test oil temperature
degC
40
40
45
Nozzle and nozzle holder
105780-8140
Bosch type code
EF8511/9A
Nozzle
105780-0000
Bosch type code
DN12SD12T
Nozzle holder
105780-2080
Bosch type code
EF8511/9
Opening pressure
MPa
17.2
Opening pressure
kgf/cm2
175
Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600
Outer diameter - inner diameter - length (mm) mm 6-2-600
Overflow valve
132424-0620
Overflow valve opening pressure
kPa
157
123
191
Overflow valve opening pressure
kgf/cm2
1.6
1.25
1.95
Tester oil delivery pressure
kPa
157
157
157
Tester oil delivery pressure
kgf/cm2
1.6
1.6
1.6
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right R
Right R
Injection order
1-5-3-6-
2-4
Pre-stroke
mm
4.5
4.45
4.55
Beginning of injection position
Governor side NO.1
Governor side NO.1
Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5
Cal 1-5 deg. 60 59.5 60.5
Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5
Cal 1-3 deg. 120 119.5 120.5
Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5
Cal 1-6 deg. 180 179.5 180.5
Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5
Cyl.1-2 deg. 240 239.5 240.5
Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5
Cal 1-4 deg. 300 299.5 300.5
Injection quantity adjustment
Adjusting point
A
Rack position
8.9
Pump speed
r/min
900
900
900
Average injection quantity
mm3/st.
92
90
94
Max. variation between cylinders
%
0
-3
3
Basic
*
Fixing the rack
*
Injection quantity adjustment_02
Adjusting point
B
Rack position
8+-0.5
Pump speed
r/min
250
250
250
Average injection quantity
mm3/st.
17.5
14.9
20.1
Max. variation between cylinders
%
0
-14
14
Fixing the rack
*
Test data Ex:

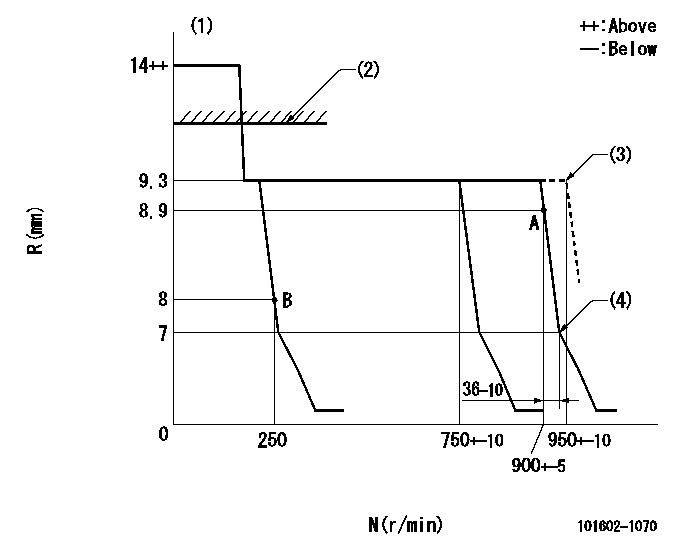

Governor adjustment
N:Pump speed
R:Rack position (mm)
(1)Target notch: K
(2)RACK LIMIT: RAL
(3)At shipping
(4)Idle sub spring setting: L1.
----------
K=16 RAL=13+1mm L1=7-0.5mm
----------
----------
K=16 RAL=13+1mm L1=7-0.5mm
----------
Speed control lever angle
F:Full speed
I:Idle
S:Stop
(1)Pump speed = aa
(2)At shipping
(3)Pump speed = bb
----------
aa=900r/min bb=750r/min
----------
a=24deg+-5deg b=32deg+-3deg c=4deg+-5deg d=(2deg) e=5deg+-5deg
----------
aa=900r/min bb=750r/min
----------
a=24deg+-5deg b=32deg+-3deg c=4deg+-5deg d=(2deg) e=5deg+-5deg
Stop lever angle
N:Pump normal
S:Stop the pump.
(1)At shipping
----------
----------
a=39deg+-5deg b=53deg+-5deg
----------
----------
a=39deg+-5deg b=53deg+-5deg
