101601-9471 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016019471




Information injection-pump assembly

ZEXEL 101601-9471 1016019471
101601-9471 INJECTION-PUMP ASSEMBLY
Rating:
18
Buy INJECTION-PUMP ASSEMBLY 101601-9471 zexel genuine, new aftermarket engine parts with delivery

Service parts 101601-9471 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 101060-1820
3. GOVERNOR 105482-0240
4. SUPPLY PUMP 105210-4710
5. AUTOM. ADVANCE MECHANIS 105644-0200
6. COUPLING PLATE 105661-0391
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY
11. Nozzle and Holder
12. Open Pre:MPa(Kqf/cm2)
13. NOZZLE-HOLDER
14. NOZZLE
15. NOZZLE SET

Include in #1:

101601-9471 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 101601-9471 1016019471


Zexel num
Bosch num
Firm num
Name
101601-9471


INJECTION-PUMP ASSEMBLY
SX6130 *

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Overflow valve   132424-0620
Overflow valve opening pressure kPa   157 123 191
Overflow valve opening pressure kgf/cm2   1.6 1.25 1.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-5-3-6- 2-4
Pre-stroke mm   2.3 2.25 2.35
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-5
deg.   60 59.5 60.5
Difference between angles 2
Cal 1-3
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cyl.1-2
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-4
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   A
Rack position   10.2
Pump speed r/min   1000 1000 1000
Average injection quantity mm3/st.   126 124 128
Max. variation between cylinders %   0 -2.5 2.5
Basic   *
Fixing the lever   *
Injection quantity adjustment_02
Adjusting point   B
Rack position   6.1+-0.5
Pump speed r/min   265 265 265
Average injection quantity mm3/st.   18 16.5 19.5
Max. variation between cylinders %   0 -15 15
Fixing the rack   *
Injection quantity adjustment_03
Adjusting point   C
Rack position   -
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   140 140
Fixing the lever   *
Remarks
After startup boost setting

Timer adjustment
Pump speed r/min   450--
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   400
Advance angle deg.   0.5
Timer adjustment_03
Pump speed r/min   700
Advance angle deg.   2.2 1.7 2.7
Timer adjustment_04
Pump speed r/min   1000
Advance angle deg.   6 5.5 6.5
Remarks
Finish


Test data Ex:

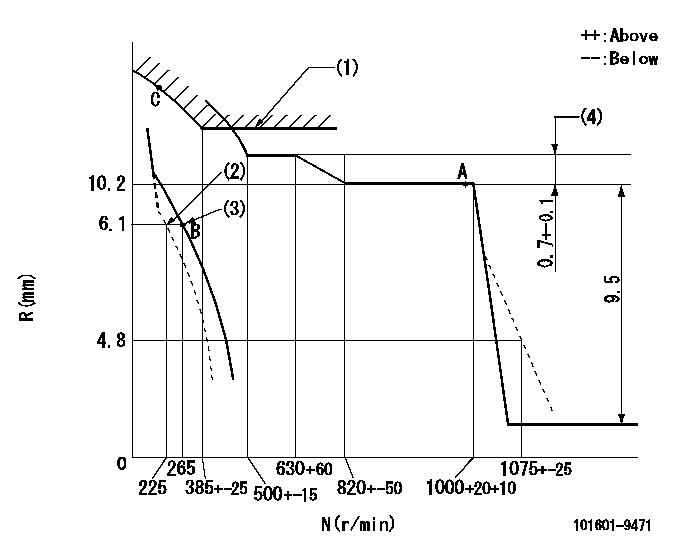

Governor adjustment

Test data 101601-9471
N:Pump speed R:Rack position (mm) (1)Excess fuel setting for starting: SXL (2)Damper spring setting (3)Set the main spring and the damper spring. (4)Rack difference between N = N1 and N = N2
----------
SXL=11+0.2mm N1=1000r/min N2=600r/min
----------

Speed control lever angle

Test data 101601-9471
F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=5deg+-5deg b=19deg+-5deg

0000000901

Test data 101601-9471
F:Full load
----------

----------
a=20deg+-5deg

Stop lever angle

Test data 101601-9471
N:Pump normal S:Stop the pump.
----------

----------
a=36deg+-5deg b=71deg+-5deg

Timing setting

Test data 101601-9471
(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(40deg)




Information:

The Primary Engine Checks consist of quick and easy procedures that could identify the problem with a minimum loss of time. Always make these checks before starting the more involved troubleshooting procedures.Whenever a problem is found and corrected, always run the test again to that point to be sure there is not a combination of problems. When the problem has been corrected and the complaint resolved, stop the test. Do not continue through the complete procedure unless it is necessary. Possible Causes/Corrections Prestart ChecksMake sure the air filter elements are in good condition and are not plugged. Also, make sure the engine oil and coolant are at the correct levels. Check Accelerator LinkageTo check the linkage adjustment, push the pedal down until it hits the stop. If the linkage adjustment is correct, the governor linkage will move to the break-over position when the pedal is against the stop. This is shown by clearance on both sides of the tang (see the illustration). When there is clearance on both sides of the tang, the governor linkage is adjusted correctly to permit the engine to operate at high idle. If clearance is not present on both sides of the tang, adjust the governor linkage to give the needed clearance.
Governor Control Linkage Adjustment
(1) Clearance on both sides of tang. (2) Governor control linkage. (3) Pedal (full travel). (4) Governor control. (5) Lever assembly. Check Vehicle TachometerInstall the 6V3121 Multitach Group. Start the engine and make sure that the vehicle tachometer is accurately indicating engine rpm. Some electric vehicle tachometers can be adjusted. Correct the tachometer as required. A defective tachometer can cause operation at the wrong engine rpm, this can give the feel of low power. Check For Air In The FuelDisconnect the fuel return line. With the engine in operation, let the fuel from the injection pump housing flow into a container. Look for air bubbles in the fuel coming from the return line. Approximately 5 to 100 visible air bubbles in the fuel is normal. If there is excessive air in the fuel find the cause and correct it. Such as checking all fuel lines and connections for leaks and repair or replacement of parts as needed. Check Fuel API Gravity RatingCaterpillar diesel engines are set in production to produce rated power with a fuel of 35 API gravity (0.85 specific gravity). This limit provides a grade of fuel that aids engine starting and avoids vapor lock. Fuel with higher API gravities (i.e., lower specific gravities), will produce less horsepower at the factory power setting and vice versa for lower than 35 API gravity fuels. The engine fuel setting should not be adjusted to compensate for a power loss with fuels lighter than 35 as fuel system component life may be decreased.For more information refer to SEBD0717, Diesel Fuels And Your Engine. Also, Special Instruction, SEHS6947 has fuel correction factors and tables. Check For Proper Fuel Heater ApplicationMake sure that fuel heaters are correctly used. In some cold climates,
