101601-9400 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016019400

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101601-9400 1016019400

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101601-9400 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101601-9400 1016019400

Zexel num

Bosch num

Firm num

Name

101601-9400
101601-9401

NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
FD6 *

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 3 2.95 3.05

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point -

Rack position 11.5

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 54.7 53.1 56.3

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point H

Rack position 9.5+-0.5

Pump speed r/min 300 300 300

Average injection quantity mm3/st. 8.2 6.4 10

Max. variation between cylinders % 0 -12 12

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_03

Adjusting point A

Rack position R1(11.5)

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 54.7 53.7 55.7

Basic *

Fixing the lever *

Injection quantity adjustment_04

Adjusting point I

Rack position 14.5+-0. 5

Pump speed r/min 150 150 150

Average injection quantity mm3/st. 80 80 90

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min (1230)

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 1500

Advance angle deg. 4 3.5 4.5

Remarks
Finish

Test data Ex:

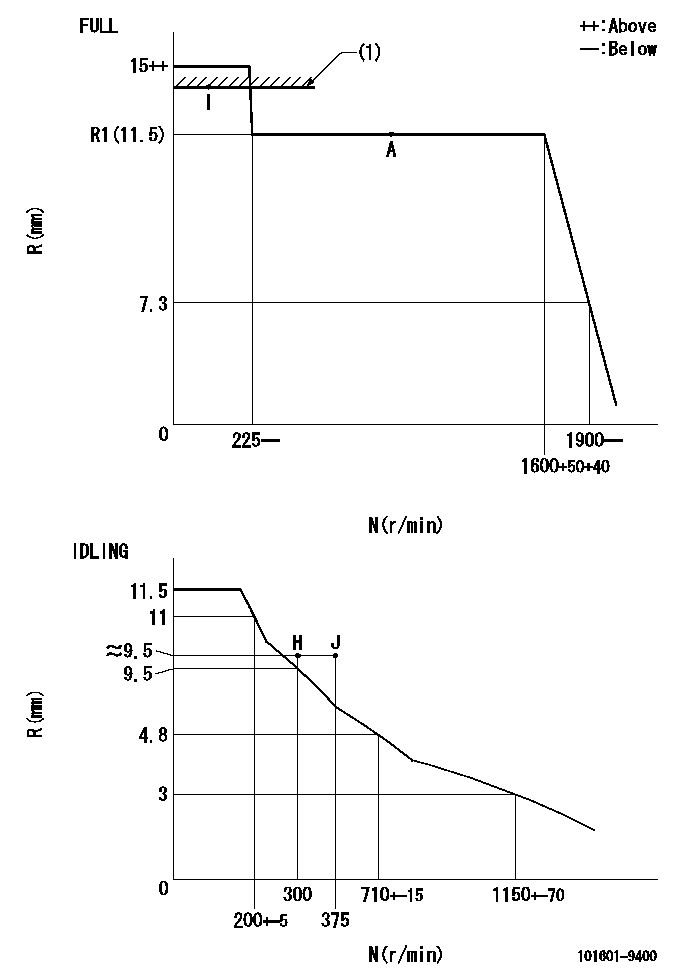

Governor adjustment

N:Pump speed R:Rack position (mm) (1)RACK LIMIT
----------

----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt set position 'H'
----------

----------
a=26.5deg+-5deg b=42deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=20deg+-5deg b=40deg+-5deg

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(30deg)
