101601-9260 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016019260

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101601-9260 1016019260

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101601-9260 zexel genuine, new aftermarket engine parts with delivery

Service parts 101601-9260 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101060-2650

3. GOVERNOR 105490-4770

4. SUPPLY PUMP 105220-5190

5. AUTOM. ADVANCE MECHANIS 105643-0060

6. COUPLING PLATE 105661-0350

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY

11. Nozzle and Holder

12. Open Pre:MPa(Kqf/cm2)

13. NOZZLE-HOLDER

14. NOZZLE

15. NOZZLE SET

Include in #1:

101482-9001 as _

101601-9260 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 101601-9260 1016019260

Zexel num

Bosch num

Firm num

Name

101601-9260

INJECTION-PUMP ASSEMBLY
6110 *

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Left L

Injection timing adjustment

Direction of rotation (viewed from drive side)
Left L

Injection order 1-5-3-6- 2-4

Pre-stroke mm 4.2 4.15 4.25

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position R1(10.7)

Pump speed r/min 1500 1500 1500

Average injection quantity mm3/st. 72.5 70.5 74.5

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 9.5+-0.5

Pump speed r/min 250 250 250

Average injection quantity mm3/st. 10.5 9 12

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Injection quantity adjustment_03

Adjusting point C

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 75 75

Fixing the lever *

Remarks
After startup boost setting

Timer adjustment

Pump speed r/min 550--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 500

Advance angle deg. 0.5

Timer adjustment_03

Pump speed r/min 1000

Advance angle deg. 3.2 2.7 3.7

Timer adjustment_04

Pump speed r/min 1500

Advance angle deg. 6.5 6 7

Remarks
Finish

Test data Ex:

Governor adjustment

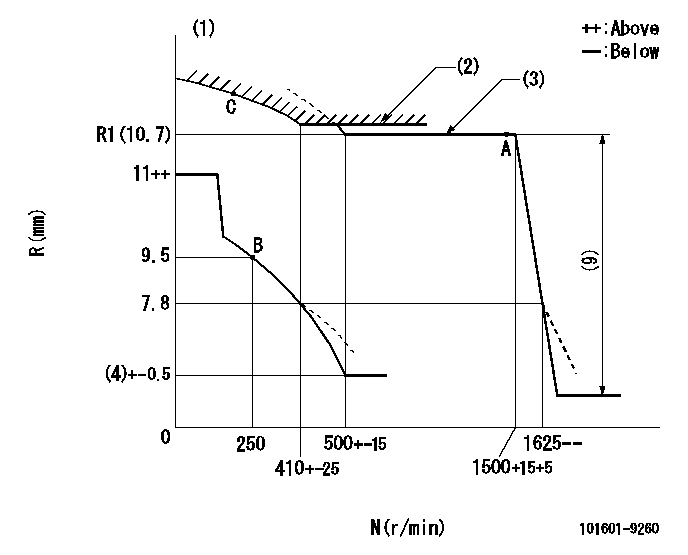

N:Pump speed R:Rack position (mm) (1)Beginning of damper spring operation: DL (2)Excess fuel setting for starting: SXL (3)The torque control spring does not operate.
----------
DL=7.8-0.5mm SXL=R1(10.7)+0.2mm
----------

Speed control lever angle

F:Full speed
----------

----------
a=20deg+-5deg

0000000901

F:Full load I:Idle (1)Stopper bolt setting
----------

----------
a=5.5deg+-5deg b=(25deg)+-3deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=20deg+-5deg b=71deg+-5deg

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position for the No. 6 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(30deg)
