101601-6180 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016016180 me03664701




Information injection-pump assembly

ZEXEL 101601-6180 1016016180
MITSUBISHI ME03664701 me03664701
101601-6180 INJECTION-PUMP ASSEMBLY
Rating:
80
Buy INJECTION-PUMP ASSEMBLY 101601-6180 zexel genuine, new aftermarket engine parts with delivery

Service parts 101601-6180 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 101060-9231
3. GOVERNOR 105490-3190
4. SUPPLY PUMP 105210-4641
5. AUTOM. ADVANCE MECHANIS 105624-5040
6. COUPLING PLATE
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105100-4632
11. Nozzle and Holder ME036780
12. Open Pre:MPa(Kqf/cm2) 21.6{220}
13. NOZZLE-HOLDER 105030-4990
14. NOZZLE 105015-4220
15. NOZZLE SET

Include in #1:

101601-6180 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 101601-6180 1016016180
MITSUBISHI ME03664701 me03664701


Zexel num
Bosch num
Firm num
Name
101601-6180

ME03664701  MITSUBISHI
INJECTION-PUMP ASSEMBLY
6D14 * K 14BE PE6A PE

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Overflow valve   131424-3720
Overflow valve opening pressure kPa   255 221 289
Overflow valve opening pressure kgf/cm2   2.6 2.25 2.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Left
  L
Injection timing adjustment
Direction of rotation (viewed from drive side)
Left
  L
Injection order   1-5-3-6- 2-4
Pre-stroke mm   3.3 3.25 3.35
Beginning of injection position
Governor side
  NO.1
Difference between angles 1
Cal 1-5
deg.   60 59.5 60.5
Difference between angles 2
Cal 1-3
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cyl.1-2
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-4
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   -
Rack position   11
Pump speed r/min   1000 1000 1000
Each cylinder's injection qty mm3/st.   67 65 69
Basic   *
Fixing the rack   *
Injection quantity adjustment_02
Adjusting point   C
Rack position   8.8+-0.5
Pump speed r/min   275 275 275
Each cylinder's injection qty mm3/st.   6.8 5.8 7.8
Fixing the rack   *
Injection quantity adjustment_03
Adjusting point   B
Rack position   R(11+-0. 5)
Pump speed r/min   1000 1000 1000
Average injection quantity mm3/st.   67 66 68
Fixing the lever   *
Injection quantity adjustment_04
Adjusting point   A
Rack position   R(11+-0. 5)
Pump speed r/min   1580 1580 1580
Average injection quantity mm3/st.   67 63 71
Difference in delivery mm3/st.   6 6 6
Fixing the lever   *
Timer adjustment
Pump speed r/min   1000+-50
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   1300
Advance angle deg.   1 0.5 1.5
Timer adjustment_03
Pump speed r/min   1600
Advance angle deg.   2 1.5 2.5
Remarks
Finish


Test data Ex:

Governor adjustment

Test data 101601-6180

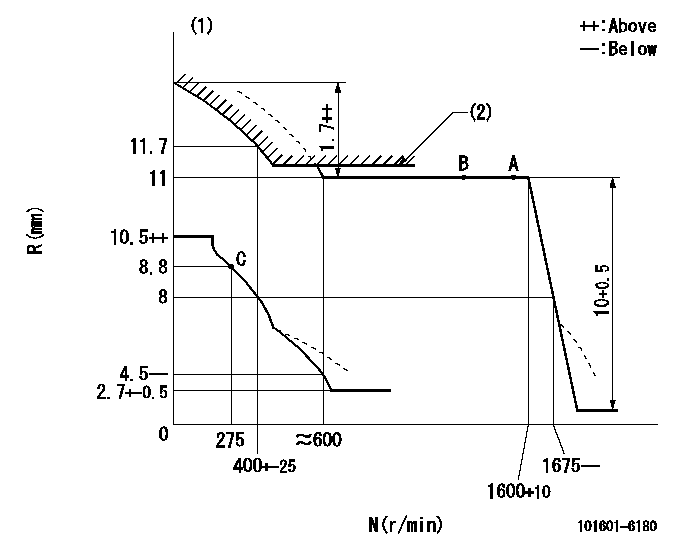

N:Pump speed R:Rack position (mm) (1)Beginning of damper spring operation: DL (2)Excess fuel setting for starting: SXL
----------
DL=6.5-0.5mm SXL=11+0.7+0.5mm
----------

0000000901

Test data 101601-6180

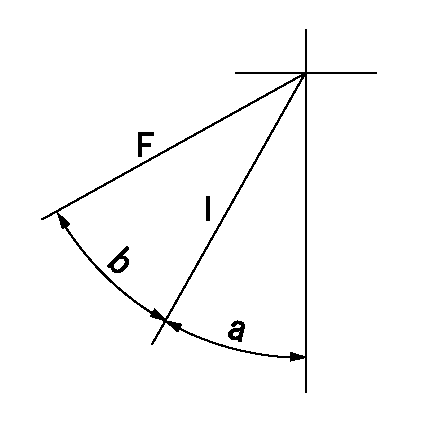

F:Full load I:Idle
----------

----------
a=33deg+-5deg b=30deg+-3deg

Stop lever angle

Test data 101601-6180
N:Pump normal S:Stop the pump.
----------

----------
a=20deg+-5deg b=71deg+-3deg




Information:


Exhaust brakes should not be used as a primary or service brake.
Auxiliary engine braking devices are approved for use on the 3406B PEEC Engine.Compression Brake
Operation (Jacobs Brake or Pacific Brake)
The Jacobs Engine Brake should not be used as a primary or service brake. Do not allow the engine to exceed 2300 rpm. However, engines equipped with a Jacobs Engine Brake should not normally be operated above 2100 rpm.
The Jacobs Engine Brake is an engine attachment that converts a diesel engine into an air compressor. Its function is to slow the vehicle and reduce brake wear.Operating Controls-Compression Brake
The Jacobs Engine Brake controls may include a dash mounted module or an ON/OFF switch and a three position switch with "Lo" and "Hi" depending on how many cylinders of braking desired. Refer to the OEM vehicle manual for the type of operating controls that your vehicle is equipped with.The PEEC ECM monitors the clutch, brake, throttle position and engine rpm to determine when the Jacobs Brake can operate. It may take up to two seconds before Jacobs Brake activates.Since the Jacobs Engine Brake is most effective at rated engine rpm, gear selection is very important. Gearing down the vehicle, within the limits of rated engine rpm, makes the engine brake a more effective retarder. Maximum retarding occurs at higher engine rpm.Cruise Control (If Equipped) OFF
With the Cruis Control (CC) in the OFF position the Jacobs Engine Brake will function like any vehicle and engine that is not equipped with Cruise Control (CC).Cruise Control (If Equipped) ON
The driver must apply the service brake approximately two seconds and then release the service brake pedal. If the retarder "Latch" mode has been programmed, the retarder will continue to slow the vehicle. To release or deactivate the retarder, the clutch or throttle foot pedal must be depressed or the engine rpm drop to 950 rpm.When using "Coast" mode, the Jacobs Brake should activate within two seconds after the brake pedal is applied and remain on as long as the brake pedal is applied. At the time the brake pedal is applied, the Cruise Control (CC) will deactivate.For information on adjustment to Jacobs Brake slave piston lash, refer to PM Level 2-Engine Valve Lash. Refer to Jacobs Brake Troubleshooting Manual, Form SENR4251 for information regarding this auxiliary braking system.There are differences in exhaust braking devices from those with little or no leakage when activated to those with a great deal of leakage.Sliding Gate Type (Williams Blue Ox)
This type of exhaust brake allows minimal leakage and must have a relief orifice to limit the maximum exhaust manifold back pressure to 50 psi (345 kPa) at maximum engine braking rpm. Flapper Type (Pacific)
With this type of exhaust brake, there is usually leakage around the movable plate. To obtain 50 psi (345 kPa) or 70 psi (485 kPa) performance level braking, a small hole would likely be required. The maximum permissible exhaust back pressure at maximum engine braking rpm is measured at the 1/4 NPT hole in the exhaust
