101601-5340 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016015340 220005720a




Information injection-pump assembly

ZEXEL 101601-5340 1016015340
HINO 220005720A 220005720a
101601-5340 INJECTION-PUMP ASSEMBLY
Rating:
38
Buy INJECTION-PUMP ASSEMBLY 101601-5340 zexel genuine, new aftermarket engine parts with delivery

Service parts 101601-5340 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 101060-1500
3. GOVERNOR 105482-7140
4. SUPPLY PUMP 105210-4351
5. AUTOM. ADVANCE MECHANIS 105634-0071
6. COUPLING PLATE 105662-0550
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105100-4303
11. Nozzle and Holder
12. Open Pre:MPa(Kqf/cm2) 18.1(185)
13. NOZZLE-HOLDER 105031-4341
14. NOZZLE 105015-3850
15. NOZZLE SET

Include in #1:

101601-5340 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 101601-5340 1016015340
HINO 220005720A 220005720a


Zexel num
Bosch num
Firm num
Name
101601-5340

220005720A  HINO
INJECTION-PUMP ASSEMBLY
EL100 * K

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Overflow valve   131424-4220
Overflow valve opening pressure kPa   162 147 177
Overflow valve opening pressure kgf/cm2   1.65 1.5 1.8
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-4-2-6- 3-5
Pre-stroke mm   4.85 4.8 4.9
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-4
deg.   60 59.5 60.5
Difference between angles 2
Cyl.1-2
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cal 1-3
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-5
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   B
Rack position   9
Pump speed r/min   850 850 850
Average injection quantity mm3/st.   86.7 85.1 88.3
Max. variation between cylinders %   0 -2 2
Basic   *
Fixing the lever   *
Injection quantity adjustment_02
Adjusting point   C
Rack position   9.7
Pump speed r/min   1450 1450 1450
Average injection quantity mm3/st.   100.7 98.1 103.3
Max. variation between cylinders %   0 -3 3
Fixing the lever   *
Injection quantity adjustment_03
Adjusting point   -
Rack position   5.1+-0.5
Pump speed r/min   250 250 250
Average injection quantity mm3/st.   10 8.5 11.5
Max. variation between cylinders %   0 -15 15
Fixing the rack   *
Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_04
Adjusting point   E
Rack position   10+-0.5
Pump speed r/min   1450 1450 1450
Average injection quantity mm3/st.   101 99.4 102.6
Fixing the rack   *
Timer adjustment
Pump speed r/min   1150+-50
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   1300
Advance angle deg.   1.9 1.4 2.4
Timer adjustment_03
Pump speed r/min   1400
Advance angle deg.   3.5 3 4
Remarks
Finish


Test data Ex:

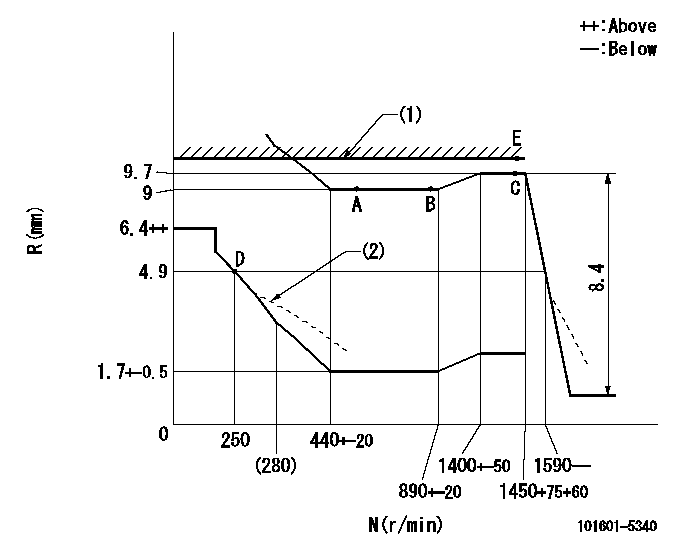

Governor adjustment

Test data 101601-5340
N:Pump speed R:Rack position (mm) (1)RACK LIMIT (2)Damper spring setting: DL
----------
DL=4-0.5mm
----------

Speed control lever angle

Test data 101601-5340
F:Full speed
----------

----------
a=11deg+-5deg

0000000901

Test data 101601-5340
F:Full load I:Idle (1)Stopper bolt setting
----------

----------
a=18deg+-5deg b=27deg+-3deg

Stop lever angle

Test data 101601-5340
N:Pump normal S:Stop the pump.
----------

----------
a=21deg+-5deg b=69deg+-5deg

Timing setting

Test data 101601-5340
(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(50deg)
