101601-5331 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1016015331 220005710a

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101601-5331 1016015331

HINO 220005710A 220005710a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101601-5331 zexel genuine, new aftermarket engine parts with delivery

Service parts 101601-5331 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101060-9931

3. GOVERNOR 105921-1412

4. SUPPLY PUMP 105220-5140

5. AUTOM. ADVANCE MECHANIS 105676-0431

6. COUPLING PLATE

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105110-4292

11. Nozzle and Holder

12. Open Pre:MPa(Kqf/cm2) 21.6(220)

13. NOZZLE-HOLDER 105041-5041

14. NOZZLE 105015-5640

15. NOZZLE SET

Include in #1:

101601-5331 as INJECTION-PUMP ASSEMBLY

106682-9421 as _

Cross reference number

ZEXEL 101601-5331 1016015331

HINO 220005710A 220005710a

Zexel num

Bosch num

Firm num

Name

101601-5331

220005710A HINO

INJECTION-PUMP ASSEMBLY
W06E * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-5720

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 3.1 3.07 3.13

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.75 60.25

Difference between angles 2
Cyl.1-2 deg. 120 119.75 120.25

Difference between angles 3
Cal 1-6 deg. 180 179.75 180.25

Difference between angles 4
Cal 1-3 deg. 240 239.75 240.25

Difference between angles 5
Cal 1-5 deg. 300 299.75 300.25

Injection quantity adjustment

Adjusting point -

Rack position 9.3

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 61.9 59.9 63.9

Max. variation between cylinders % 0 -3.5 3.5

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point -

Rack position 8.4+-0.5

Pump speed r/min 250 250 250

Average injection quantity mm3/st. 9 7.5 10.5

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_03

Adjusting point A

Rack position R1(9.3)

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 61.9 60.9 62.9

Basic *

Fixing the lever *

Injection quantity adjustment_04

Adjusting point B

Rack position R1-0.3

Pump speed r/min 1600 1600 1600

Average injection quantity mm3/st. 59.9 57.9 61.9

Fixing the lever *

Injection quantity adjustment_05

Adjusting point D

Rack position R1+0.1

Pump speed r/min 1300 1300 1300

Average injection quantity mm3/st. 66.3 64.3 68.3

Fixing the lever *

Injection quantity adjustment_06

Adjusting point C

Rack position R1-0.5

Pump speed r/min 650 650 650

Average injection quantity mm3/st. 40.5 38.5 42.5

Fixing the lever *

Injection quantity adjustment_07

Adjusting point E

Rack position R1-0.1

Pump speed r/min 400 400 400

Average injection quantity mm3/st. 29.7 27.7 31.7

Fixing the lever *

Injection quantity adjustment_08

Adjusting point I

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 99 99 109

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min 1050--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 1000

Advance angle deg. 0.3

Timer adjustment_03

Pump speed r/min 1500

Advance angle deg. 3.5 3.2 3.8

Remarks
Finish

Test data Ex:

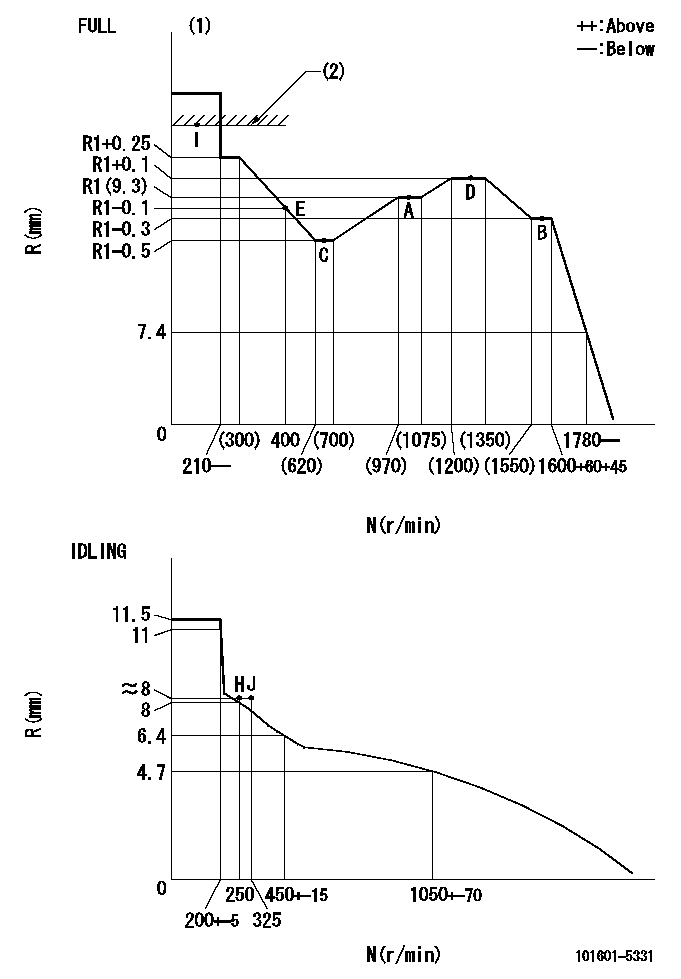

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)RACK LIMIT
----------
T1=B57
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt set position 'H'
----------

----------
a=(34deg)+-3deg b=34deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=40deg+-5deg b=40deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of gear's standard threaded hole at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(70deg)

Information:

Exhaust Smoke Can Be Seen While Starting
Possible Causes/Corrections Cold Outside Temperatures
It may be necessary to use starting aids, or to heat engine oil or coolant at temperatures below -12°C (10°F). Air In Fuel SystemWith air in the fuel system, the engine will normally be difficult to start, run rough, and release a large amount of white smoke. If the engine will not start, loosen a fuel injection line nut at the through the head adapter and crank the engine until fuel comes out. Tighten the fuel line nut. Start the engine. If the engine still does not run smooth or releases a large amount of white smoke, loosen the fuel line nuts one at a time at the through the head adapters until the fuel that comes out is free of air. Tighten the fuel line nuts. If the air can not be removed in this way, put 35 kPa (5 psi) of air pressure to the fuel tank.
Do not use more than 55 kPa (8 psi) of air pressure in the fuel tank or damage to the tank may result.
Check for leakage at the connections between the fuel tank and the fuel transfer pump. If leaks are found, tighten the connections or replace the lines. It there are no visual leaks, remove the fuel supply line from the tank and connect it to an outside fuel supply. If this corrects the problem, the suction line (standpipe) inside the fuel tank has a leak. Low Quality FuelRemove a small amount of fuel from the tank and check for water in the fuel. If there is water in the fuel, remove fuel from the tank until it is free of water and fill with a good quality fuel. For more information see Special Instruction, Form No. SEHS7067, Fuel Recommendations For Caterpillar Diesel Engines.Change the fuel filter and "prime" (remove the air and/or low quality fuel from the fuel system) the fuel system with the fuel priming pump. If there is no water in the fuel, prime and start the engine by using an outside source of fuel. If engine starts correctly using different fuel, remove all fuel from the tank and fill with good quality fuel. Prime the fuel system if necessary. Low Fuel PressureChange the primary and secondary fuel filters and check to make sure the fuel lines are not plugged or damaged. If the filters or lines are not the cause, a repair or replacement of the fuel transfer pump is needed. Fuel Injection Timing Not CorrectCheck and make necessary adjustments as in Testing and Adjusting Section of this Service Manual. Valve Adjustment Not CorrectCheck and make necessary adjustments as in Testing and Adjusting Section of this Service Manual. Intake valve lash is 0.38 mm (.015 in) and exhaust valve lash is 0.64 mm (.025 in). Defective Fuel Nozzle(s)Remove the fuel nozzles and test as in Testing and Adjusting Section of this Service Manual. Low CompressionSee "Misfiring and Running Rough".Exhaust Smoke Cannot Be Seen While Starting
Possible Causes/Corrections
